Shymkent Wastewater Treatment Plant Cost 2025: Engineering Breakdown with Local Data, Compliance & ROI Calculator

Shymkent’s 2025 wastewater treatment plant costs range from $12.96M for municipal upgrades (EBRD-53239 project) to $500K–$5M for industrial WWTPs, depending on capacity and technology. CAPEX splits 60% civil works/40% equipment, with OPEX averaging $0.15–$0.30/m³ treated. Kazakhstan’s compliance standards (Kazakhstan Environmental Code 2021) require ≤30 mg/L BOD and ≤50 mg/L TSS for discharge, driving demand for advanced systems like MBR or DAF. Funding options include EBRD loans (up to 70% coverage) and government grants for green infrastructure.

Shymkent’s Wastewater Challenge: Why Upgrades Are Urgent

Shymkent’s existing wastewater treatment plant (WWTP) serves over 1 million residents but operates at 120% capacity, according to a 2023 Asian Development Bank (ADB) report. This significant overload leads to inefficient treatment and consistent effluent quality violations, directly impacting public health and environmental integrity in the region. The current infrastructure, designed for a smaller population and different industrial profile, struggles to meet the demands of rapid urban expansion and increased industrial activity. The city’s current effluent consistently fails to meet the stringent requirements of Kazakhstan’s 2021 Environmental Code, with typical Biochemical Oxygen Demand (BOD) exceeding 50 mg/L and Total Suspended Solids (TSS) above 80 mg/L. These figures are significantly higher than the mandated discharge limits of ≤30 mg/L BOD and ≤50 mg/L TSS, posing a substantial compliance risk for the municipal utility, Vodnye Resoursy Marketing LLP. To address this, the European Bank for Reconstruction and Development (EBRD) has initiated a $12.96 million project (EBRD-53239, 2022–2026) aimed at a 30% capacity increase and critical sludge treatment upgrades for the Shymkent WWTP capacity extension. Beyond municipal wastewater, Shymkent’s burgeoning industrial clusters—particularly in food processing and textiles—face escalating fines for non-compliance with discharge regulations. These industries often generate highly concentrated wastewater with specific pollutants that conventional municipal systems cannot adequately treat. Consequently, there is a growing imperative for these facilities to invest in on-site industrial wastewater treatment plants to avoid severe penalties and demonstrate environmental stewardship. The increasing regulatory pressure under Kazakhstan wastewater treatment standards is a primary driver for both municipal and industrial WWTP upgrades.

Wastewater Treatment Plant Cost Breakdown: Shymkent 2025 Benchmarks

Municipal wastewater treatment plant (WWTP) projects in Shymkent are benchmarked at $1.5M–$3M per 10,000 m³/day capacity, based on recent EBRD project data which includes significant civil works. This range accounts for varying complexities, site conditions, and the extent of required upgrades, such as network rehabilitation alongside plant modernization. The total Capital Expenditure (CAPEX) for a typical WWTP project in Shymkent is generally split across several key components. As per an ADB Initial Environmental Examination (IEE) draft, civil and structural works constitute approximately 60% of the CAPEX, covering excavation, concrete structures, buildings, and site preparation. Mechanical and electrical equipment, including pumps, blowers, motors, and treatment units, accounts for about 30%. The remaining 10% is typically allocated to automation, instrumentation, and SCADA systems, essential for modern plant operation and control. Operational Expenditure (OPEX) for treated wastewater in Shymkent averages $0.15–$0.30/m³, influenced by technology choice and energy tariffs. Energy consumption is the largest OPEX component, accounting for approximately 40% due to aeration and pumping requirements. Chemical costs, including coagulants, flocculants, and disinfectants, represent about 25%. Labor, encompassing operators, technicians, and administrative staff, makes up 20% of OPEX, while routine maintenance and spare parts contribute the remaining 15%. Understanding this municipal WWTP cost per m³ is critical for long-term financial planning. For industrial wastewater treatment cost Kazakhstan, the CAPEX ranges from $500K to $5M, highly dependent on the influent characteristics and chosen technology. Facilities with high FOG (fats, oils, and grease) and TSS, such as food processing plants, often opt for Dissolved Air Flotation (DAF) systems, while those requiring high-purity effluent for discharge or reuse, like pharmaceutical plants, might invest in Membrane Bioreactor (MBR) technology. Sludge handling and disposal significantly impact overall project costs, typically adding 15–20% to the total CAPEX. This includes equipment such as filter presses or centrifuges for dewatering, which are crucial for reducing sludge volume and disposal expenses. For instance, the cost of sludge dewatering in Shymkent using a plate and frame filter press can vary based on capacity and automation levels.

Cost Category	Municipal WWTPs (per 10,000 m³/day)	Industrial WWTPs (Typical Range)
CAPEX (Total)	$1.5M – $3M	$500K – $5M
Civil/Structural Works	~60% of CAPEX	30-50% of CAPEX
Mechanical/Electrical Equipment	~30% of CAPEX	40-60% of CAPEX
Automation/Instrumentation	~10% of CAPEX	5-15% of CAPEX
Sludge Handling (Additional)	15-20% of base CAPEX	10-25% of base CAPEX
OPEX (per m³ treated)	$0.15 – $0.30	$0.20 – $0.50 (highly variable)
Energy	~40% of OPEX	35-50% of OPEX
Chemicals	~25% of OPEX	20-35% of OPEX
Labor	~20% of OPEX	15-25% of OPEX
Maintenance	~15% of OPEX	10-20% of OPEX

Engineering Specs for Shymkent WWTPs: Influent, Effluent, and Compliance

Typical influent wastewater in Shymkent contains BOD levels ranging from 200–400 mg/L, Chemical Oxygen Demand (COD) from 400–800 mg/L, and TSS from 250–500 mg/L, as documented in 2023 ADB data. These parameters represent average concentrations for mixed municipal and light industrial wastewater entering the city’s main treatment facility. Understanding these influent characteristics is foundational for designing effective wastewater treatment plants, as they directly dictate the necessary treatment processes and equipment sizing. Kazakhstan’s 2021 Environmental Code sets strict discharge limits for treated wastewater, essential for protecting local water bodies. For general discharge, these limits are:

• BOD: ≤30 mg/L
• COD: ≤125 mg/L
• TSS: ≤50 mg/L
• Ammoniacal Nitrogen (NH₄-N): ≤10 mg/L

These benchmarks for BOD TSS removal are critical design targets. Certain industrial sectors face even stricter limits due to the specific nature of their pollutants. For instance, food processing facilities may have COD discharge limits as low as ≤80 mg/L, while pharmaceutical plants often contend with heavy metal limits of ≤0.1 mg/L for specific metals. Meeting these stringent requirements often necessitates advanced secondary or tertiary treatment processes. Sludge production is another key engineering consideration for Shymkent WWTPs, typically ranging from 0.3–0.5 kg dry solids per cubic meter of treated wastewater. This sludge requires efficient handling, including dewatering to achieve 20–30% solids content, to minimize volume and reduce disposal costs. Effective sludge dewatering equipment, such as plate and frame filter presses, are essential components of a modern WWTP. A typical process flow for a Shymkent WWTP designed to meet these compliance standards generally includes:

1. Screening: Initial removal of large solids using mechanical bar screens.
2. Grit Removal: Separation of inorganic particles like sand and gravel.
3. Primary Sedimentation: Gravitational settling to remove suspended solids and some organic matter.
4. Biological Treatment: Activated sludge or MBR processes for BOD and COD removal.
5. Secondary Clarification: Separation of biomass from treated water (not applicable for MBR).
6. Disinfection: UV or chlorination to eliminate pathogens.
7. Sludge Handling: Thickening, digestion, dewatering, and disposal of generated sludge.

Parameter	Typical Shymkent Influent (mg/L)	Kazakhstan 2021 Environmental Code Discharge Limits (mg/L)	Stricter Industrial Limits (Example)
BOD₅	200 – 400	≤30	N/A
COD	400 – 800	≤125	≤80 (Food Processing)
TSS	250 – 500	≤50	N/A
NH₄-N	20 – 50	≤10	≤5 (Sensitive Areas)
Heavy Metals	Trace – Variable	Varies by metal	≤0.1 (Pharmaceuticals)

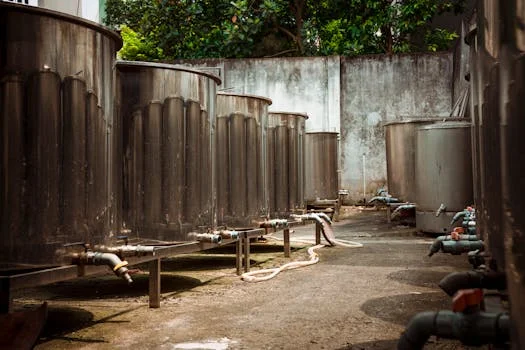

Treatment Technology Comparison: MBR vs. Conventional vs. DAF for Shymkent’s Water Quality

Membrane Bioreactor (MBR) systems achieve up to 99% TSS removal and 95% BOD removal, significantly outperforming conventional activated sludge processes, albeit with higher energy consumption. MBR technology integrates biological treatment with membrane filtration, eliminating the need for secondary clarifiers and tertiary filtration. This results in superior effluent quality, often suitable for direct discharge or even reuse, making MBR systems for Shymkent’s high-BOD wastewater a compelling choice for demanding applications. However, MBR systems typically incur about twice the energy cost, averaging $0.25/m³ treated compared to approximately $0.12/m³ for conventional activated sludge. For detailed MBR engineering specs for Kazakhstan, further resources are available. Conventional activated sludge systems, while offering lower CAPEX (around $1.2M per 10,000 m³/day compared to $2M for MBR), achieve 85–90% BOD removal. These systems require a larger footprint due to the need for primary clarifiers, aeration basins, and secondary clarifiers. This can be a disadvantage in urbanized areas of Shymkent where land availability is limited. Nonetheless, their operational simplicity and lower initial investment make them a viable option when space is not a primary constraint and effluent requirements are less stringent. Dissolved Air Flotation (DAF) systems are particularly ideal for industrial WWTPs, especially in sectors like food processing, slaughterhouses, and textiles, which produce wastewater with high concentrations of Fats, Oils, Grease (FOG) and suspended solids. DAF can achieve over 90% TSS removal and significant FOG reduction, making it an effective primary or pre-treatment step. The CAPEX for a DAF system typically ranges from $0.8M–$1.5M, depending on capacity and specific design. DAF systems for Shymkent’s industrial WWTPs offer a cost-effective solution for industries facing high FOG/TSS challenges. Additional DAF system cost and compliance data for industrial WWTPs can provide further insights. Footprint is a critical factor for Shymkent projects. MBR systems offer a significant advantage, requiring approximately 50% less land area than conventional activated sludge plants. This compact design is often crucial for upgrades or new constructions within densely populated urban areas. In terms of sludge handling, MBR technology generally produces about 30% less waste activated sludge (WAS) compared to conventional processes, as noted in the ADB IEE draft. This reduction in sludge volume translates to lower sludge dewatering cost in Shymkent and disposal expenses. A decision framework for selecting the appropriate technology can be summarized as follows:

• If influent BOD >300 mg/L and space is limited: Choose MBR for its high removal efficiency and compact footprint.
• If budget is tight and land is available: Choose Conventional Activated Sludge for its lower CAPEX and proven reliability.
• If influent contains high FOG/TSS (e.g., food processing, textiles): Choose DAF as a primary treatment or standalone system for effective separation.

Feature	Membrane Bioreactor (MBR)	Conventional Activated Sludge	Dissolved Air Flotation (DAF)
Typical Application	High-quality effluent, limited space, municipal/industrial	Standard municipal, large land availability	Industrial pre-treatment (high FOG/TSS), standalone for specific industrial effluents
BOD Removal Efficiency	95%+	85-90%	30-60% (as primary treatment)
TSS Removal Efficiency	99%+	90-95% (with secondary clarifier)	90%+ (for FOG/TSS)
CAPEX (per 10,000 m³/day)	~$2M	~$1.2M	$0.8M – $1.5M (variable capacity)
OPEX (Energy Cost per m³)	~$0.25	~$0.12	~$0.10 – $0.20 (dependent on air/chemical usage)
Footprint Required	Compact (50% less than conventional)	Large	Moderate
Sludge Production	Lower (30% less than conventional)	Higher	High (concentrated FOG/TSS sludge)

Funding and ROI: How to Finance a Shymkent WWTP Project

The European Bank for Reconstruction and Development (EBRD) Green Cities Framework 2 offers up to 70% funding for municipal wastewater treatment plant (WWTP) projects, as exemplified by Shymkent’s recent $12.96M upgrade. This framework is designed to support cities in developing sustainable urban infrastructure, including critical environmental projects. Municipalities like Shymkent can leverage these international financial instruments to significantly reduce the upfront capital burden and accelerate necessary upgrades. The tender process for EBRD/ADB-funded projects typically involves rigorous pre-qualification, detailed technical specifications, and often includes local content requirements to boost regional economies. For comparison, Almaty’s WWTP cost benchmarks also highlight similar funding mechanisms. Beyond international loans, the Kazakhstan government provides grants offering 30–50% coverage for industrial WWTPs that meet specific ‘green’ criteria, as outlined by the 2023 Ministry of Ecology directives. These grants incentivize industries to adopt environmentally friendly technologies and practices, aligning with national sustainability goals. Businesses looking to invest in new or upgraded industrial wastewater treatment solutions should actively explore these domestic funding opportunities to enhance project viability. An effective Return on Investment (ROI) calculator for a WWTP project demonstrates the long-term financial benefits beyond mere compliance. For a 5,000 m³/day industrial WWTP, the payback period is typically estimated at 5–7 years, assuming an average OPEX of $0.20/m³ and a conservative 10% annual reduction in avoided regulatory fines. This calculation factors in reduced operational costs, potential for water reuse (if applicable), and the elimination of penalties for non-compliance. Consider a practical case study: A Shymkent textile factory, previously facing substantial and recurring fines for discharging high-BOD and TSS effluent, invested $1.2M in a DAF system. This CAPEX included equipment, civil works, and installation. The OPEX for the system averaged $0.18/m³. After commissioning, the factory successfully reduced its discharge violations by 80%, leading to a significant decrease in fines and an improved environmental reputation. This investment resulted in a projected payback period of 4.5 years, demonstrating the clear economic rationale for compliance-driven WWTP investments. The ability to quantify these benefits is crucial for procurement teams and facility managers to justify the substantial initial investment required for modern wastewater treatment.

Frequently Asked Questions

Understanding the key variables in wastewater treatment plant (WWTP) investments is crucial for effective project planning and compliance in Shymkent. Here are answers to common questions posed by municipal engineers and industrial facility managers:

What is the average wastewater treatment plant cost in Shymkent?

For municipal WWTPs, costs range from $1.5M–$3M per 10,000 m³/day capacity. Industrial WWTPs typically cost $500K–$5M, depending on the required capacity and chosen technology.

What are Kazakhstan’s current wastewater discharge limits?

As per the Kazakhstan Environmental Code 2021, general discharge limits are ≤30 mg/L for BOD, ≤125 mg/L for COD, ≤50 mg/L for TSS, and ≤10 mg/L for NH₄-N. Specific industrial sectors may have stricter limits.

What funding options are available for WWTP projects in Shymkent?

Municipal projects can secure up to 70% funding through programs like the EBRD Green Cities Framework 2. Industrial WWTPs may qualify for Kazakhstan government grants covering 30–50% of costs if they meet 'green' criteria.

How does MBR technology compare to conventional activated sludge for Shymkent’s wastewater?

MBR offers superior effluent quality (95%+ BOD, 99%+ TSS removal) and a 50% smaller footprint, crucial for urban sites. However, it has higher CAPEX and roughly double the energy OPEX compared to conventional systems.

What is the typical ROI for an industrial wastewater treatment plant in Shymkent?

For a 5,000 m³/day industrial WWTP, the payback period is generally 5–7 years, factoring in avoided regulatory fines, reduced operational costs, and potential for water reuse. This can be shorter with significant fine avoidance.

What are the main components of WWTP operational costs in Kazakhstan?

OPEX averages $0.15–$0.30/m³ treated, with energy being the largest component (~40%), followed by chemicals (~25%), labor (~20%), and maintenance (~15%).
