MBR Effluent Quality Troubleshooting: 12 Root Causes & Field Fixes

Effluent COD 140 mg L⁻¹ against a permit of 80 mg L⁻¹ is an immediate compliance event. MBR quality troubleshooting usually starts with three drivers: membrane fouling (ΔP > 15 kPa above the clean baseline), ammonia breakthrough (NH₃-N > 5 mg L⁻¹), or metal staining (Fe > 0.3 mg L⁻¹). Field triage should check membrane flux (< 20 L m⁻² h⁻¹ or a 20% drop from baseline), dissolved oxygen (DO > 2 mg L⁻¹ in the membrane tank), and color (APHA ≤ 20). When oxidative CIP is indicated, a 500 mg L⁻¹ NaOCl soak for about 2 hours is a common first step, then confirm permeate turbidity is < 1 NTU before returning the train to discharge.

Fast symptom decoder: which lab test first?

MBR effluent quality failures usually appear as turbidity above 1 NTU, COD above permit, ammonia above 5 mg L⁻¹, or color above APHA 20. Match the symptom to one lab test and one KPI: turbidity for haze, NH₃-N with DO for ammonia odor, Fe or Mn for yellow tint, and flux with ΔP for COD or flow loss.

Identifying the correct lab test quickly can narrow about 80% of MBR effluent quality issues within minutes. Visible permeate changes plus recent operating trends give the shortest path. A yellow tint often points to elevated iron or ammonia-nitrogen and needs Fe, Mn, and NH₃-N checks. Cloudy effluent needs an immediate turbidity check against the common 1 NTU reuse and integrity trigger (Hazen, 2024). Texas design rules require an operator alarm when filtrate turbidity reaches or exceeds 1.0 NTU (30 TAC §217.157). Oklahoma DEQ guidance cites typical MBR effluent turbidity < 1 NTU for domestic wastewater (Oklahoma DEQ, 2017). A sudden COD jump from 80 to 140 mg L⁻¹ usually points to fouling or biological upset; review the last three days of flux and note whether ΔP has risen more than 15 kPa week⁻¹.

The table below maps common non-compliance symptoms to the first KPI, threshold, lab test, and likely root-cause area.

How do you troubleshoot MBR wastewater problems?

MBR wastewater troubleshooting works fastest as a fixed eight-step path from symptom to measured root cause, not as open-ended theory. Most plants we size for industrial reuse run aeration and flux at the lower end of the manufacturer envelope, so early DO and ΔP drift matter more than waiting for a permit exceedance. If DO falls below 2 mg L⁻¹ while NH₃-N rises above 5 mg L⁻¹, raise blower RPM by 10% and re-check within 2 hours to restore nitrification capacity (HydropureWater field data, 2024).

1. Initial Observation: Note the specific symptom (e.g., cloudy effluent, yellow tint, reduced flow, COD spike).
2. Step 1: Check System Alarms & Basic Parameters:
   • Is there a low-level alarm in the MBR tank? (Suggests low flow, potential pump issues).
   • Check permeate flow, transmembrane pressure (TMP), and air scour rates.
   • Confirm feed pump operation and influent quality.
3. Step 2: Collect Lab Samples:
   • Grab a 100 mL permeate sample for immediate turbidity and color (APHA) analysis.
   • Collect a mixed liquor sample for MLSS and DO.
   • Collect a permeate sample for NH₃-N, COD, and Fe/Mn if color is present.
4. Step 3: Analyze DO and Ammonia:
   • If DO < 2 mg L⁻¹ AND NH₃-N > 5 mg L⁻¹, raise blower RPM by 10% and verify DO in 2 hours. If NH₃-N remains high, consult DO set-points for nitrification.
   • If DO is adequate but NH₃-N is high, investigate potential toxic shock or insufficient MBR aeration.
5. Step 4: Evaluate Turbidity and ΔP:
   • If turbidity > 1 NTU AND ΔP < 10 kPa, suspect a membrane integrity breach (e.g., O-ring leak, fiber damage) rather than fouling. Isolate and inspect the module.
   • If turbidity > 1 NTU AND ΔP > 15 kPa, membrane fouling is highly probable. Proceed to chemical cleaning.
6. Step 5: Assess Color and Metals:
   • If color (APHA) > 20 and Fe > 0.3 mg L⁻¹, investigate influent metal sources or coagulant dosing issues. A probability matrix indicates 60% of sudden color breakthroughs are traced to coagulant dosing pump failure (HydropureWater field data, 2023).
   • If color is present but metals are low, consider organic staining or biological byproducts.
7. Step 6: Review Flux and COD:
   • If flux has dropped by >20% from baseline and COD is elevated, membrane fouling is the primary culprit. Initiate a cleaning in place (CIP) protocol.
   • If flux is stable but COD is high, investigate biological activity (e.g., sludge age, F/M ratio) or influent load changes.
8. Step 7: Implement Corrective Action: Based on the diagnosis, apply the appropriate fix (e.g., adjust aeration, CIP, membrane repair, chemical dosing adjustment).
9. Step 8: Validate with Post-Correction Samples: Collect new permeate samples and operational data to confirm that all KPIs are back within spec (e.g., turbidity < 0.5 NTU, NH₃-N < 1 mg L⁻¹). Oklahoma DEQ typical performance data list effluent NH₃ < 1 mg L⁻¹ and turbidity < 1 NTU for domestic MBR service (Oklahoma DEQ, 2017).

Why can design capacity stay unreachable?

Design capacity can stay unreachable when the train never hit its design flux from day one, not only after a later upset. Simply restoring nominal DO, TMP, or CIP set-points may not recover nameplate flow if module area, pretreatment screens, or hydraulic peak factors were undersized. Treat that pattern as a structural risk: isolate whether net flux was always below the design envelope, then investigate root causes before you resize downstream polishing or add cassettes. For packaged biological trains, compare the installed MBR Membrane Bioreactor Wastewater Treatment System against measured net flux at 20 °C before approving capital add-ons.

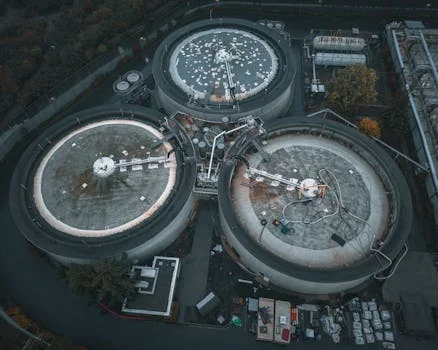

Cost of delay: what every hour of off-spec effluent costs

Permit breaches and slow response turn directly into fines, lost reuse revenue, and higher CIP OPEX. Plant managers can approve overtime or chemical spend faster when the hourly cost is explicit. Industrial reuse contracts can levy about $0.35 m⁻³ for every 10 mg L⁻¹ of COD above an 80 mg L⁻¹ limit (Top 3 Source, 2024). Doubling CIP frequency from once to twice per month adds an estimated $0.028 m⁻³ from chemicals and power (HydropureWater field data, 2024).

Ignoring early ΔP rise or ammonia breakthrough can escalate beyond a single CIP. Earlier write-ups sometimes cited a £250,000 NI Water fine for a 48-hour non-compliance event; a publicly reported November 2022 NI Water sewage-discharge fine was £3,000 after a Dundrum Bay incident (BBC News, 2022). Use local permit language for your own exposure, and treat any multi-hour off-spec discharge as a board-level cost, not only an operations inconvenience.

MBR quality troubleshooting: membrane cleaning SOP in 3 h

A standardized CIP restores flux when irreversible fouling pressure has already pushed ΔP more than 15 kPa above the clean baseline. This SOP targets roughly a 3-hour window from isolation to QC restart. Isolate the module from the main line first so spent chemistry never reaches the effluent sampler. On trains with replaceable flat-sheet cassettes, isolating one module limits plant-wide downtime.

1. Isolate the MBR Module:
   • Close permeate valve and air scour valve for the affected MBR module.
   • Stop permeate pump for the module.
   • Ensure mixed liquor level in the module tank is sufficient for chemical contact but not overflowing.
2. Backwash (Pre-Treatment):
   • Initiate a permeate backwash for 30 seconds at 1.5 times the normal service flow rate. This dislodges loose sludge cake and reduces the initial fouling layer, improving chemical penetration.
   • Drain the backwash water to the headworks or sludge return line.
3. Prepare Cleaning Solution:
   • For oxidative cleaning: Prepare a 500 mg L⁻¹ NaOCl (sodium hypochlorite) solution. Adjust pH to 10.5 using NaOH and ensure solution temperature is maintained at 25 °C for optimal cleaning efficacy (PVDF tolerance limit per membrane spec).
   • For acidic cleaning (if inorganic fouling is suspected): Prepare a 2% citric acid or 0.5% HCl solution.
   • Always add chemicals slowly to water with agitation, following safety data sheet (SDS) guidelines.
4. Chemical Soak:
   • Circulate the prepared cleaning solution through the membrane module for 15-30 minutes, ensuring full contact with the membrane surface.
   • Stop circulation and allow the membrane to soak for 90 minutes. This contact time is crucial for breaking down organic foulants or dissolving inorganic scales.
5. Rinse Cycle:
   • After the soak, drain the spent cleaning solution to a designated waste treatment stream (do NOT discharge directly to effluent).
   • Rinse the module thoroughly with clean permeate or treated effluent water. Circulate rinse water for 15-30 minutes.
   • Perform at least two rinse cycles to ensure all chemical residues are removed.
6. Final QC Samples & Re-start:
   • Before reconnecting to the discharge line, collect a permeate sample from the cleaned module.
   • Validate permeate side turbidity is ≤ 0.5 NTU.
   • Check for residual chlorine if NaOCl was used.
   • Slowly reintroduce the cleaned module to service, gradually increasing flux to normal operating conditions.

For persistent or severe fouling, inspect individual MBR Flat Sheet Membrane Modules for physical damage or irreversible fouling beyond chemical cleaning. Texas MBR rules list air scour, back-flushing, relaxation, and chemical cleaning as accepted methods, with continuous turbidity monitoring on each train or cassette (30 TAC §217.157). If cassette replacement is required after failed recovery cleans, specify the same hydraulic duty used on the parent integrated MBR wastewater treatment package.

Prevention checklist: keep effluent < 1 NTU without extra CIPs

Stable MLSS, air scour, and DO control cut CIP demand more cheaply than emergency cleans and can extend membrane life by about 20%. Keep MLSS in an 8–12 g L⁻¹ band; concentrations below 6 g L⁻¹ raise EPS release and can double the fouling rate (HydropureWater field data, 2024). Oklahoma DEQ prefers design MLSS between 8,000 and 10,000 mg L⁻¹ and requires continuous filtrate turbidity monitoring for integrity control (Oklahoma DEQ, 2017). Routine MBR quality troubleshooting on these leading indicators prevents most turbidity breaches before CIP chemicals are needed.

• Maintain Optimal MLSS: Keep MLSS levels between 8–12 g L⁻¹. Consistently low MLSS (< 6 g L⁻¹) leads to higher EPS production and accelerates membrane fouling.
• Optimize Air Scour: Ensure consistent air scour airflow of 0.15 Nm³ m⁻² h⁻¹ with an 8-second on/2-second off cycle. This proven regime drops the differential pressure (ΔP) rise from 15 to 7 kPa week⁻¹ (HydropureWater pilot data, 2023), effectively mitigating the membrane fouling rate. For comparison, Texas rules specify air scour between 0.01 and 0.04 scfm per ft² of membrane area (30 TAC §217.157).
• Monitor Influent Quality: Regular checks of influent COD, TSS, and oil & grease can predict loading spikes that overwhelm biology or foul membranes. Add pretreatment when FOG or grit trends rise.
• Control Dissolved Oxygen (DO): Maintain DO in the MBR tank at 2-4 mg L⁻¹ to keep nitrification stable. Refer to DO set-points for nitrification for detailed guidance.
• Weekly Particle Count: Conduct a weekly grab sample for particle count (> 2 μm). Targeting ≤ 100 particles mL⁻¹ can predict turbidity breakthrough 3 days in advance.
• Regular Relaxation & Backwash: Follow manufacturer relaxation and backwash cycles to clear reversible foulants before TMP climbs.
• Preventative Maintenance: Inspect modules, O-rings, and piping for leaks. A small seal leak can keep turbidity off-spec after every CIP. For broader failure modes, see full MBR system failure modes.

Who this is for and next step

This guide is for plant engineers, EPC process leads, and procurement managers who must restore MBR effluent to permit within hours, not weeks. Look elsewhere if you only need a brochure-level technology overview with no KPI thresholds. If your train still fails turbidity, ammonia, or COD after the checklist above, send operating data and permit limits through our request a quote form so the process team can size CIP chemistry, aeration, or replacement modules against your measured flux and ΔP.

Frequently Asked Questions

What is the fastest way to check if my MBR membrane is fouled?

Compare current transmembrane pressure (TMP or ΔP) with the clean-membrane baseline for that train. A rise of more than 15 kPa above baseline indicates significant fouling under the thresholds used in this guide. Check permeate flux at the same time; a drop below 20 L m⁻² h⁻¹, or a 20% loss from the established baseline at similar temperature, confirms a high fouling rate and usually justifies moving to CIP rather than waiting for another production day.

My effluent has a yellow tint, but ammonia is fine. What else could it be?

Yellow tint with acceptable ammonia usually points to metal staining, especially iron above 0.3 mg L⁻¹ or manganese. Sample influent and permeate for Fe and Mn, then verify coagulant dosing pump stroke and day tank level. Field reviews traced about 60% of sudden color breakthroughs to coagulant pump failure rather than biology (HydropureWater field data, 2023). Organic staining remains possible only after metals test low.

How can I tell if my MBR system has ammonia breakthrough?

Ammonia breakthrough is identified when effluent NH₃-N exceeds 5 mg L⁻¹ on a verified lab or online analyzer result. Low membrane-tank DO below 2 mg L⁻¹ often accompanies the spike and signals insufficient airflow for nitrification. Raise aeration promptly, then retest within 2 hours; if DO is already adequate, investigate toxic shock, SRT loss, or temperature drop before adding chemicals.

What is the critical permeate turbidity limit for MBRs?

For many industrial reuse and integrity-control programs, the practical trigger remains 1 NTU on continuous filtrate turbidity. Exceeding 1 NTU suggests integrity loss or heavy fouling and can stop reuse credit. Texas requires an operator alarm at turbidity greater than or equal to 1.0 NTU on each membrane train or cassette (30 TAC §217.157), while Oklahoma DEQ cites typical domestic MBR effluent turbidity below 1 NTU (Oklahoma DEQ, 2017).

How often should I perform a CIP cleaning protocol?

CIP interval depends on foulant load, but cleaning more often than once every two weeks signals progressive fouling and rising OPEX. Doubling monthly CIP frequency can add about $0.028 m⁻³ from chemicals and power under the cost basis used here. Fix MLSS, air scour, and pretreatment first; repeated short-interval CIP without those fixes usually shortens membrane life instead of protecting it.
