Dissolved Oxygen Control Targets and Drivers
Dissolved oxygen control keeps aeration basins near the oxygen demand of the biomass without surplus blower power. Industry reviews citing U.S. EPA energy studies place aeration at about 50–60% of activated-sludge plant electricity. Typical basins hold about 1.5–2.5 mg/L DO; older guidance still cites 0.5–5.0 mg/L. Setpoint choice therefore dominates operating cost.
Aeration systems feed atmospheric oxygen through blowers or compressors and fine-bubble or mechanical diffusers so aerobic biomass can oxidize dissolved and particulate organics. Specific aeration energy often sits in the 0.5–2.0 kWh/m³ (about 1.9–7.6 kWh/1,000 US gal) band, set by diffuser alpha, sidewater depth, and how tightly air tracks demand. Most plants we size for variable industrial loads run toward the lower DO end of the band once nitrification is stable. Temperature, salinity, and organic loading shift both oxygen solubility and oxygen uptake rate (OUR), so fixed airflow almost always over-aerates part of the day.
| Factor | Impact on Dissolved Oxygen | Mechanism |
|---|---|---|
| Temperature | Decreases DO solubility | Warmer water holds less dissolved gas. |
| pH | Minor impact on solubility, significant impact on microbial activity | Microbial respiration rates are sensitive to pH. |
| Organic Loading Rate (BOD) | Increases DO demand | Higher pollutant concentrations require more oxygen for microbial breakdown. |
| Salinity | Decreases DO solubility | Dissolved salts interfere with gas solubility. |
| Atmospheric Pressure | Increases DO solubility (at higher pressure) | Greater pressure drives more oxygen into the water. |
Low DO risks incomplete BOD removal, odor, and stalled nitrification. Excess DO mainly burns kilowatt-hours and can strip CO2 or hinder anoxic zones used for denitrification. Because aeration is usually the largest controllable electrical load, sensor-based blower modulation pays back quickly when diurnal loads swing hard.
How Does Organic Load Affect Aeration DO Demand?
Organic matter accumulation and higher influent BOD raise instantaneous oxygen demand in the aeration zone, so DO falls unless airflow increases within minutes. Plants seeing FOG or solids spikes often stabilize the load with a front-end Dissolved Air Flotation (DAF) System before biological treatment, which cuts the amplitude of DO swings the blowers must chase. Without that buffering, feedback-only loops lag behind diurnal peaks and then overshoot during low-load night hours.
Most plants we commission for food or municipal service show the steepest OUR rise in the first pass of a plug-flow basin.Pairing flow or estimated BOD feedforward with DO feedback shortens that lag without forcing a permanently high setpoint.

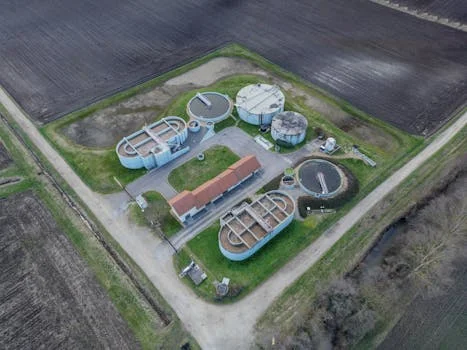

How Do Smart Aeration Controls Save Energy?
Smart aeration control saves energy by matching blower output to measured biological demand instead of a constant airflow or a high fixed DO target. According to industry summaries of DOE and WEF casework, basic DO-to-VFD feedback typically cuts blower energy about 10–25% versus uncontrolled air, while optimized PLC strategies often reach 20–40% when sensors stay calibrated. Savings shrink if diffusers are fouled or if minimum mixing airflow already exceeds process need.
| Control Strategy | Description | Advantages | Disadvantages | Typical Application |
|---|---|---|---|---|
| Feedback Control (PID) | Uses DO sensor readings to adjust blower speed or air flow to maintain a setpoint. Proportional-Integral-Derivative (PID) controllers are common. | Relatively simple to implement, widely understood, effective for stable loads. | Can be slow to respond to rapid changes in organic load, susceptible to DO sensor drift, may lead to over-aeration during low demand periods. | Wastewater treatment plants with predictable organic loads and stable influent conditions. |
| Feedforward Control | Uses external process variables (e.g., influent flow rate, BOD concentration) to predict oxygen demand and adjust aeration proactively. | Faster response to load changes, can prevent DO fluctuations, reduces reliance on DO sensors alone. | Requires accurate predictive models and reliable inputs for external variables, complex to set up and calibrate. | Plants with highly variable influent characteristics or where influent monitoring is robust. |
| Adaptive Control | Automatically adjusts control parameters (e.g., PID gains) based on system performance and changing conditions. | Improves performance over time, robust to changing conditions, minimizes manual tuning. | More complex algorithm development, requires advanced computational capabilities, can be sensitive to noisy sensor data. | Large, complex plants with significant diurnal or seasonal variations in load and conditions. |
| Model Predictive Control (MPC) | Uses a dynamic model of the aeration process to predict future DO levels and optimize control actions over a defined horizon. | Highly optimized, can manage multiple objectives (e.g., DO, energy, nitrification), excellent for complex and dynamic systems. | Requires sophisticated modeling and computational power, high implementation cost, expert knowledge needed for development and maintenance. | Advanced municipal and industrial wastewater treatment plants seeking maximum efficiency and performance. |
Field upgrades that move from basic feedback to adaptive feedforward have shown about 25% aeration energy reduction while holding target DO, when sensors and blower turndown are healthy. Energy recovered elsewhere in the plant compounds that return; see the engineering numbers in Energy Recovery from Wastewater: Engineering Specs, Costs & ROI. Compact package plants with integrated blowers and DO loops, including Optimized aeration systems for wastewater treatment, apply the same demand-tracking logic at smaller flow.
Can Submerged MBR Modules Share Basin Aeration Air?
Internal submerged MBR modules placed in the aeration zone can use membrane scour air to cover part of the biological oxygen demand and remove the need for RAS that dilutes MLSS. That layout raises achievable MLSS and shrinks footprint, but scour airflow is set by membrane fouling control, not by the DO loop. Operators still need independent DO measurement in the bulk liquor and a way to add process air when scour alone undersupplies OUR at peak load.
Treat scour air as a credit in the oxygen balance, not as the sole control actuator. If scour already exceeds mixing and process need at night, DO will climb and energy leave the system as unused oxygen. Most industrial MBR trains we review keep a small trim blower or valve manifold under DO or ammonia feedback for that reason.
What Results Can a Mid-Sized Plant Expect?
A mid-sized municipal plant treating about 50,000 m³/day (roughly 13 MGD) ran diffused aeration with turbo blowers on a single 2.0 mg/L DO feedback loop across three basins. Average aeration energy sat near 1.2 kWh/m³, with clear over-aeration at low load and slow recovery after influent spikes. The upgrade added basin DO probes, influent flow plus estimated BOD feedforward, adaptive PID trim, and smarter blower staging with a dynamic DO band around 1.8 mg/L when nitrification allowed.
| Metric | Before Optimization | After Optimization (6 Months) | Improvement |
|---|---|---|---|
| Average Aeration Energy Consumption | 1.2 kWh/m³ | 0.85 kWh/m³ | -29.2% |
| Average DO Level (Set Point) | 2.0 mg/L | 1.8 mg/L (dynamic adjustment) | N/A |
| Nitrification Efficiency | 92% | 96% | +4.3% |
| Effluent BOD5 | 15 mg/L | 12 mg/L | -20.0% |
| Blower Runtime Reduction | 78% | 62% | -16% |
After six months, aeration energy fell 29.2% to 0.85 kWh/m³, nitrification rose from 92% to 96%, and effluent BOD5 dropped from 15 mg/L to 12 mg/L. Simple payback on energy alone was about 2.5 years for that control and sensor package. Results hinge on real turndown, clean diffusers, and operators who recalibrate probes on a fixed interval rather than after the first DO alarm.
Selection Checklist and Next Step
Use this short checklist before you buy controllers or rewrite PLC logic:
- Map diurnal and seasonal OUR, not just average BOD5.
- Confirm blower turndown and diffuser alpha under dirty-water conditions.
- Place DO probes away from diffuser plumes and influent jets.
- Decide fixed DO, DO band, or ammonia-based trim against your permit.
- Budget probe cleaning and wet calibration, not only hardware CAPEX.
- If FOG or TSS spikes drive oxygen demand, evaluate upstream flotation with a Dissolved Air Flotation (DAF) System before tightening the DO loop.
Who this is for: municipal and industrial plants where aeration is the top power consumer and DO already drifts outside 1.5–2.5 mg/L for part of the day. Who should look elsewhere: sites whose blowers already sit on minimum mixing air with no spare turndown—fix hardware first. To size sensors, blowers, or a packaged biological train against your load profile, request a process review and quote with influent data and current kWh/m³.
Frequently Asked Questions
What DO setpoint should aeration basins use?
Most activated sludge basins run well at about 1.5–2.5 mg/L DO under typical municipal temperatures, with nitrification often needing the upper part of that band in the last aerobic zone. Older plant manuals still cite 0.5–5.0 mg/L as a safe envelope. Holding above roughly 2.5 mg/L without an ammonia or mixing reason usually raises blower power with little effluent gain. Site-specific OUR testing beats copying a neighbor’s setpoint.
How much energy can better DO control save?
Basic DO feedback to VFDs commonly saves about 10–25% of blower energy versus constant air, while optimized PLC strategies often reach 20–40% when equipment can actually turn down. One mid-sized plant in this guide cut aeration use from 1.2 to 0.85 kWh/m³ (−29.2%) after feedforward plus adaptive trim. Fouled diffusers or mixing-limited airflow cap the upside. Verify savings with kWh meters on the blower feeders, not SCADA estimates alone.
Does high DO inhibit nitrification?
High bulk DO does not inhibit nitrification; low DO and short SRT do. Excess oxygen mainly wastes energy and can hurt upstream anoxic denitrification by recycling too much DO in the nitrate recycle. If ammonia breaks through, raise DO or SRT, or use ammonia-based aeration control, rather than assuming “more air always helps.” Track effluent NH3-N when you lower setpoints.
Where should DO probes sit in the basin?
Install probes in well-mixed zones that represent the biomass, not directly above diffuser grids or at the raw influent entry. Multi-pass basins need at least one probe per major aerobic zone if loads taper strongly. Clean and calibrate on a fouling-based interval; drift is the usual reason PID loops over-aerate at night. Redundant probes pay for themselves on large blower trains.
