Why H2S Is an Odor, Corrosion, and Public-Health Problem
Hydrogen sulfide is the dominant odor compound in sanitary sewerage and the primary driver of sulfide-induced corrosion on concrete crowns, steel pipe walls, and electrical equipment at the headworks (U.S. EPA, Design Manual: Odor and Corrosion Control in Sanitary Sewerage Systems and Treatment Plants, EPA/625/1-85/018, October 1985, Chapter 1). H2S is detectable at very low concentrations and is toxic, which is why utility operators treat it as both an air-quality and a worker-safety hazard.
The 1984 EPA Needs Survey, cited in that 1985 manual, placed the U.S. backlog for major sewer rehabilitation at $3.2 billion, with a significant share attributed to sulfide deterioration, and projected $38.8 billion in new collector and interceptor construction costs through 2000. The 1985 manual is the authoritative reference for the dose, reaction-time, and pilot-study rules used throughout this guide; treat its conclusions as the engineering baseline and request a current vendor confirmation before procurement.
Odor and corrosion are two symptoms of the same sulfur cycle. Sulfide generated in the collection system partitions into H2S gas, which escapes at the headworks and along the collection system, and the dissolved fraction is oxidized biologically on the pipe wall to sulfuric acid, which attacks concrete and steel. Once the pipe wall is breached, untreated wastewater can exfiltrate into shallow groundwater or surface waters, and wet-weather infiltration can carry pathogens into the collection system. The 1985 EPA manual flags this as a structural hazard, and the mechanism—corroded walls, cracks, leakage, soil/groundwater contact, exposure—is the qualitative pathway this article extends into a public-health case. Specific outbreak counts and case statistics are not provided in the supplied research, so any cost of inaction should be framed as the qualitative corrosion-to-leakage pathway and a request for site-specific data from the operator. Readers who need the dosing mechanics that follow should also review the auto-dosing engineering guide.
Three Budget Tiers for Affordable Odor and Corrosion Control
A defensible budget starts with three named tiers, each tied to dose rates and triggers from the research, so the procurement lead can match capital and operating spend to the plant's risk profile. USP Technologies' product data (usptechnologies.com/odor-and-corrosion-control) is the engineering source for the dose ratios, reaction-time rule, and escalation triggers in this section; treat the rules as the design envelope and confirm with a current vendor data sheet and a site-specific beaker study before any purchase order.
| Tier | Approach | Primary dose rule (USP Technologies) | When to escalate or pivot |
|---|---|---|---|
| Tier 1 — Chemical-only at the headworks | H2O2 dosed 5–30 min before the odor-release point; clarifier-influent booster | 1.2–1.5 parts H2O2 per part dissolved sulfide; 1–2 mg/L clarifier-influent booster | Hydraulic retention > 2–3 h; solids blanket > 1–2 ft; soluble BOD > 200–300 mg/L; waste activated sludge co-settled |
| Tier 2 — Chemical + iron salt synergy | PRI-TECH-style iron salt + H2O2 combination; nitrate blends for force mains | Same 1.2–1.5:1 ratio with iron as catalyst; nitrate blends (e.g., SULFAWAY) for medium- to long-duration control in force mains (ChemREADY) | Pivot to Tier 3 when atmospheric H2S still exceeds odor or worker-safety limits after chemical optimization |
| Tier 3 — Chemical + engineered polishing | Upstream chemistry + wet scrubber, iron-oxide filter, or activated carbon at the plant boundary | Polish residual atmospheric H2S; supplemental polishing lowers required chemical dose and yields an operating-cost credit (USP Technologies) | Use when chemistry alone cannot meet atmospheric limits or when community odor complaints persist |
The reaction-time rule cuts across all three tiers, and these tiers ensure that affordable wastewater odor corrosion control systems reduce waterborne disease risk by maintaining pipe integrity. USP Technologies recommends a minimum 5-minute reaction window, but documents that 60–70% completion is achievable within 2 minutes when wastewater iron exceeds 2–3 mg/L, which is the lever for short-retention headworks. Escalation triggers—hydraulic retention greater than 2–3 hours, solids blankets deeper than 1–2 feet, soluble BOD above 200–300 mg/L, or co-settled waste activated sludge—are the conditions under which a flat Tier 1 dose is no longer adequate. For long-retention force mains, Tier 2 should consider nitrate-based blends such as SULFAWAY, positioned for medium- to long-duration control (ChemREADY). A PLC-controlled chemical dosing skid is the equipment anchor for Tier 1 and Tier 2 injection.

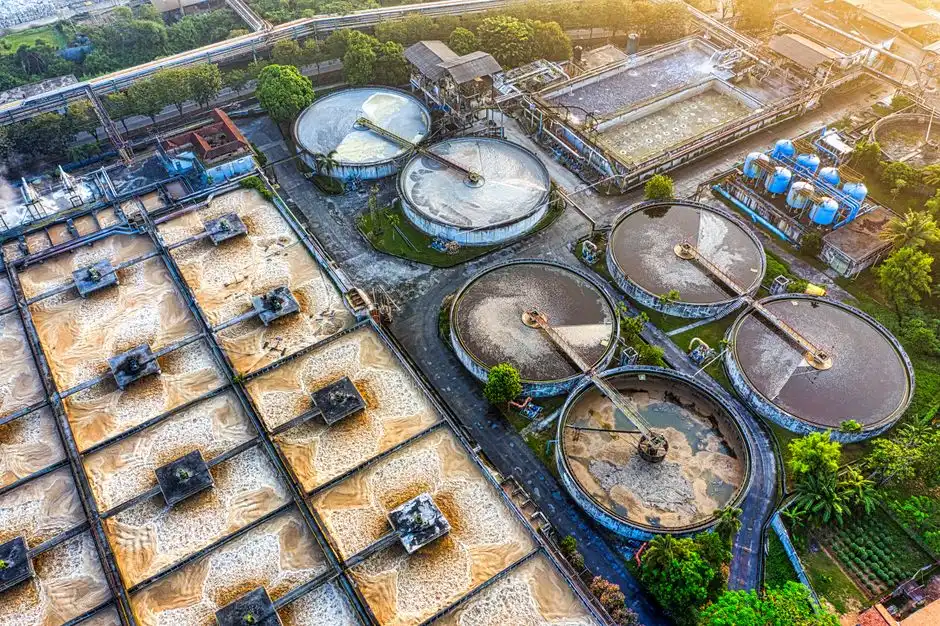

Reading Your Plant Before You Spend: The Affordable Assessment Path
The cheapest way to overspend on odor control is to size a chemical skid or a scrubber from a single grab sample. USP Technologies describes a three-step preliminary assessment that any plant should run before capital is committed. Step 1 is a review of facility design, plant operating records, and meteorological data, supplemented with diurnal sulfide profiling so the operator can see how loadings shift hour to hour and season to season. Step 2 is a beaker study of the H2O2–sulfide reaction in the actual wastewater matrix, varying reaction time and dose ratio to map removal efficiency and confirm the 1.2–1.5:1 design ratio. Step 3 is a field pilot to confirm the beaker findings and to establish variable compliance criteria tied to hourly and seasonal loadings. A composite sampler buyer's guide is a useful reference when designing the diurnal profile step.
Two timing details drive whether the budget defense holds. First, sulfide loadings in the early-morning and winter conditions can be roughly half of summer-afternoon peaks, so a flat maximum dose is wasted spend for most of the year. Second, wind speed, wind direction, and outside-activity patterns control whether an atmospheric H2S reading translates into an odor complaint, which is what determines whether a Tier 3 polishing device is justified. The assessment outputs that a buyer should walk into a vendor meeting with are: a time-resolved sulfide profile, a beaker-confirmed dose ratio, a wind/activity-adjusted atmospheric target, and a defined variable-compliance criterion. The research does not supply a generic dollar figure for this assessment, so request a quoted scope of work from the dosing supplier that itemizes the beaker study, the field pilot duration, and the reporting deliverables.
Why Corrosion Control Quietly Cuts Waterborne-Disease Risk
Sulfide-induced corrosion of concrete crowns and steel fittings is the dominant structural failure mode in sanitary sewers, according to the U.S. EPA 1985 Design Manual, Chapter 1. Deteriorated pipe walls raise exfiltration rates, allowing untreated wastewater to reach shallow groundwater and surface waters used downstream for irrigation or supply, while infiltration during wet weather can introduce pathogens into the collection system in the reverse direction. The 1985 manual treats this as a structural-hazard mechanism, and the supplied research does not document specific outbreak counts or case studies linking a particular corroded sewer to a particular waterborne-disease event, so any site-specific claim should be sourced from local utilities.
The business case reads cleanly when corrosion control and disease-risk reduction are framed as one investment. The same peroxide or iron-salt chemistry that solves the odor complaint also slows the corrosion rate, extends asset life, and reduces the leak pathways that move pathogens into the wider environment. For force mains, where retention time makes peroxide impractical, medium- to long-duration nitrate-based control reduces sulfide buildup over the entire retention window and protects the pipe wall throughout transit (ChemREADY, SULFAWAY product description). The wastewater-side companion to this program—COD and suspended-solids reduction—is covered in the COD and SS reduction guide.
Operating-Cost Levers That Keep the System Affordable
Four cost-control knobs are documented in the supplied research, and each one is concrete enough to put a number on the budget defense. First, add supplemental polishing—scrubbers, activated carbon, or iron-oxide filters—to lower the chemical dose required to meet atmospheric limits; USP Technologies describes this as generating a direct operating-cost credit because the polishing device reduces chemical demand. Second, use diurnal profiling to right-size the dose by hour and season rather than running a flat maximum dose year-round; the same source documents that early-morning and winter loadings can be roughly half of summer-afternoon peaks. Third, combine iron salts with H2O2 rather than iron salts alone; USP Technologies describes PRI-TECH as delivering cost savings over traditional iron-salt-only programs, with phosphorus-removal and solids-separation as added benefits. Fourth, pilot before scaling—the 1985 EPA manual documents case histories in Baltimore, Pittsburgh, Palm Beach County, Tampa, and Sacramento where pilot data reduced full-scale chemical and capital costs. None of the supplied sources provide a current dollar-per-pound chemical price, so each of these levers should be priced against a current vendor quote and a site-specific beaker study.
Choosing the Right HydropureWater Equipment for the Plan
The Tier 1 and Tier 2 frameworks above both depend on precise, time-resolved injection, which is the role of a PLC-controlled chemical dosing skid paired with peroxide or nitrate-based chemistries. Upstream of the dosing point, a headworks bar screen removes rags and debris that would otherwise consume oxidant and distort the dose calculation—a point USP Technologies flags when discussing how iron and BOD effects govern the actual dose required. Both products are natural fits inside the assessment-to-tiering workflow already described, and both can be specified from the diurnal profile and beaker study that the assessment path produces.
Frequently Asked Questions
How should we set the budget tier for our plant?
Match the tier to the risk profile rather than the available capital. Tier 1 (chemical-only) is the right starting point for most headworks with a single odor-release point and at least 5 minutes of reaction time; dose at 1.2–1.5 parts H2O2 per part dissolved sulfide and add a 1–2 mg/L clarifier-influent booster (USP Technologies). Pivot to Tier 2 when escalation triggers appear (hydraulic retention > 2–3 h, solids blanket > 1–2 ft, soluble BOD > 200–300 mg/L, or co-settled waste activated sludge), and to Tier 3 when atmospheric H2S still exceeds odor or worker-safety limits after chemistry is optimized. Because the supplied research does not include a current dollar-per-pound chemical price or scrubber capital cost, request a quoted scope of work from the dosing supplier that itemizes chemical unit cost, dose per hour of operation, and any supplemental polishing capital.
How do we qualify a chemical dosing supplier?
Ask for the beaker-study protocol, the dose-ratio confirmation in your actual wastewater matrix, and a variable-compliance criterion tied to hourly and seasonal loadings—USP Technologies describes this exact three-step preliminary assessment. Confirm the supplier will support a field pilot before full-scale commitment, and require the pilot report to include a documented reaction-time measurement against the 5-minute minimum and the 2-minute high-iron case. The supplied research does not rank vendors, so procurement should score responses on documented case histories, willingness to share pilot data, and the specificity of the dose-escalation triggers in their proposal.
How do we size the dosing equipment?
Size the skid from the diurnal sulfide profile, not from a single grab sample. The required dose is 1.2–1.5 parts H2O2 per part dissolved sulfide (USP Technologies), and the summer-afternoon peak—not the annual average—is what sets the maximum flow rate. Confirm that the skid can deliver a 1–2 mg/L clarifier-influent booster in parallel with the upstream dose, and that the control loop tracks both flow and dissolved-sulfide feedback if available. Request a control narrative that explains how the skid handles the 2-minute, high-iron reaction case separately from the 5-minute minimum case, since the
