What "UPW Loop Particle Limits" Actually Cover
UPW loop particle limits are the sub-micrometer particle counts and size thresholds that ultrapure water must meet continuously at the point of use, as defined by SEMI F63 and ASTM D5127. In real distribution loops, these limits are threatened less by bulk feedwater quality and more by geometry-induced dead zones—elbows and downstream tees where Lagrangian particle tracking of d_p = 0.05 µm particles shows elevated residence—and by material choice, with CPVC loops releasing measurably more TOC and particulates than PVDF loops under identical hydraulics. Meeting POU limits requires controlling loop velocity, minimizing low-shear recirculation at fittings, selecting low-leaching polymers, and verifying with section-level autopsy data rather than outlet-only sampling. The governing framework: SEMI F63 and ASTM D5127 require UPW quality to be preserved throughout the entire distribution loop to the point of use, not only at the plant outlet (MDPI 2025).
The standards do not provide a ready-made design recipe. The supplied research names SEMI F63 and ASTM D5127 as the governing industry guidelines but does not quote a specific numeric POU particle count or size threshold; site-specific numeric targets must be pulled from the standard itself. The practical consequence is that the loop—its geometry, its material, and its sampling plan—becomes the unit of compliance. Two loops with identical make-up quality can deliver very different POU performance depending on how water is moved and what it touches on the way to the tool, shifting the engineering focus from the make-up skid to the wetted loop. Engineers building a design brief should treat the loop as the system being qualified, not the outlet of the polisher. For context on how the polishing skid upstream fits into this picture, see this guide to polishing loop distribution technologies for 18.2 MΩ·cm UPW.
Why the Loop, Not the Polisher, Drives POU Particle Excursions
Identical CFD velocity and pressure fields for CPVC and PVDF prove that geometry, not wall material, sets the bulk momentum field in a UPW distribution loop. In a 70 m pilot loop operated at 1.0 m³/h with a return pressure of 0.7 bar, CFD predicted nearly identical loop-scale velocity, pressure, and temperature fields for both materials, meaning that anything CPVC and PVDF do differently downstream of the polisher is not a momentum effect (MDPI 2025). The same model identified low-shear recirculation at elbows and downstream tees as zones of elevated particle residence, framing these fittings as predictable dead zones for sub-micrometer particles rather than benign transitions (MDPI 2025).
Mapping these zones before they appear in service involves injecting a pulse of 150 inert particles (d_p = 0.05 µm, ρ_p = 2,650 kg·m³) at the loop inlet to identify high-risk regions through Lagrangian particle tracking (MDPI 2025). At the modeled operating point—inlet mean velocity 0.85 m/s at 1.0 m³/h, ambient up to 40 °C, inlet UPW at 20 °C—the particle Reynolds number Re_p comes out to approximately 4×10⁻², which confirms creeping-flow conditions around individual particles and validates linear Stokes drag as the appropriate transport model (MDPI 2025). This result confirms that sub-micrometer particles respond almost linearly to local shear; any region with low shear is a region where they will linger.
The implication for POU excursions is direct. When particles spike at a tool, the diagnostic checklist starts at the elbow, tee, and POU branch geometry rather than at the polishing skid that is already meeting its outlet spec. Polisher performance is necessary but not sufficient; the loop must carry that quality to the point of use without shedding, leaching, or trapping material.
Material Matters Even When Hydraulics Don't: CPVC vs PVDF in a UPW Loop
Geometry sets the flow, but the pipe wall sets the chemistry, and that difference is large enough to dominate POU outcomes. Minimum loop velocity differed by only about 0.4% between CPVC and PVDF under the same geometry, so any POU delta between the two materials is attributable to material-driven leaching and release rather than momentum-field differences (MDPI 2025). The following numbers come from position-resolved immersion leaching of pipe sections cut from the pilot loop after 8 months of continuous 24/7 operation, with standardized leaching at 60 °C (MDPI 2025).
| Material | Mean TOC at 8 h (mg/L) | Mean TOC at 1 d (mg/L) | Mean TOC at 3 d (mg/L) | Spatial pattern across 17 sections |
|---|---|---|---|---|
| CPVC | ~2.2 | ~4.1 | ~7.1 | Strongly heterogeneous; rises with contact time |
| PVDF | ~2.0 | ~1.3 | ~1.6 | Most sections 0.4–2.3 mg/L; more uniform |
The CPVC data show mean TOC rising from ~2.2 mg/L at 8 h to ~4.1 mg/L at 1 day and ~7.1 mg/L at 3 days, with strong spatial heterogeneity across the 17 sampled positions (MDPI 2025). The same protocol on PVDF yielded ~2.0 mg/L at 8 h, ~1.3 mg/L at 1 day, and ~1.6 mg/L at 3 days, with most sections clustered in a narrow 0.4–2.3 mg/L band (MDPI 2025). This behavior is consistent with independent UPW loop studies, which report that CPVC shows higher organic carbon, metals, and particle release than PVDF, with stronger temperature dependence and longer stabilization times under both batch and loop conditions (MDPI 2025).
Holding POU particle limits becomes more difficult as the share of CPVC in the wetted loop increases and as section position pushes further into low-velocity zones where residence compounds leaching. PVDF stabilizes faster and more uniformly, simplifying both the stabilization timeline and the sampling plan. Where final polishing is still needed at the POU, pairing a low-leaching wetted loop with a PVDF hollow-fiber ultrafiltration system is a defensible way to keep sub-micrometer particles in check without masking upstream material problems.
A CFD-Informed Dead-Zone Checklist for UPW Loop Design
Translating the CFD and autopsy evidence into design rules provides an engineer with a checklist that does not require rebuilding the model. Each item below is anchored to the operating point and geometry in the pilot study, which are representative of industrial-scale UPW distribution systems (MDPI 2025).
| Design lever | Target / approach | Why it matters (per MDPI 2025) |
|---|---|---|
| Hydraulic path length | ~70 m between supply and return headers | Representative industrial-scale geometry |
| Mean inlet velocity | ~0.85 m/s at 1.0 m³/h | Turbulent pipe flow that still permits linear Stokes drag at particle scale |
| Return-line pressure | ~0.7 bar via PCV | Holds the operating point independent of tool demand swings |
| Fittings | Long-radius elbows, eliminated dead-legs, POU branches without re-circulation pockets | CFD shows elbows and downstream tees are the predictable dead zones for 0.05 µm particles |
| Sampling | ~17 section-level stations, not header grab samples | Header sampling hides the spatial heterogeneity that drives POU excursions |
| Pre-build verification | 150-particle pulse Lagrangian tracking of d_p = 0.05 µm, ρ_p = 2,650 kg/m³ | Predicts which fittings will become POU-relevant particle sources before installation |
Two design points deserve emphasis. The low-shear recirculation zones that CFD predicts at elbows and downstream tees are the same locations where 0.05 µm particles accumulate, so geometry remediation should prioritize elbows and POU branches rather than straight pipe runs. Header sampling is insufficient; the 17-position section-level plan used in the autopsy revealed CPVC heterogeneity that a single supply- or return-line sample would have flattened. The same polishing loop distribution technology framework for 18.2 MΩ·cm UPW applied to a new build benefits from this kind of position-resolved verification before commissioning.

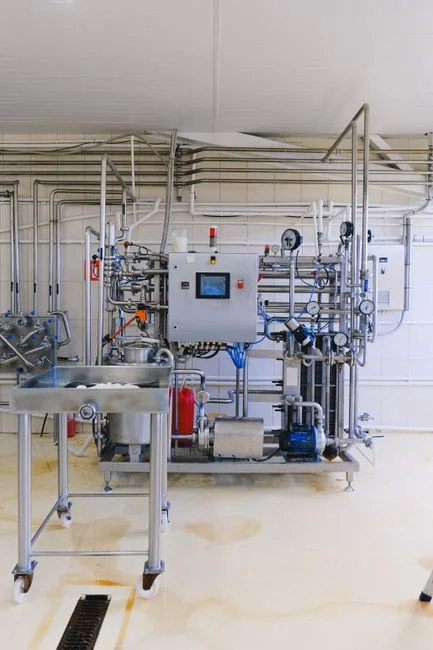

From Spec Sheet to POU: A Material-and-Geometry Decision Framework
POU risk is set by two variables that can be ranked and acted on. The decision framework below maps the binding risk in a loop to the lever that most reduces it, using evidence from the supplied research.
| Binding risk in the loop | First lever to pull | Evidence base (MDPI 2025) |
|---|---|---|
| Multi-month TOC and organic-particle release | Specify PVDF for the wetted loop | PVDF sections 0.4–2.3 mg/L vs CPVC mean ~7.1 mg/L at 3 d |
| Short-duration spikes during commissioning | Plan for longer stabilization and higher interim TOC if CPVC is in place | CPVC mean TOC grew 2.2 → 4.1 → 7.1 mg/L from 8 h to 3 d |
| Many elbows, tees, or low-shear POU branches | Prioritize geometry remediation before material swap | Minimum velocity differs only ~0.4% between materials, so dead zones persist regardless of pipe choice |
| New build with POU as the binding constraint | PVDF wetted loop + 70 m / 0.85 m/s / 0.7 bar baseline + Lagrangian tracking verification | Pilot geometry and operating point are representative of industrial systems |
For retrofits, the order of operations matters. Because CFD shows the momentum field is insensitive to wall material under fixed geometry, a CPVC-to-PVDF swap will not by itself fix dead zones at elbows and tees—those require geometry remediation first, with the material change closing the residual leaching gap. For new builds, the evidence supports specifying PVDF for the wetted loop, designing to the 70 m / 0.85 m/s / 0.7 bar baseline, and verifying with Lagrangian particle tracking before commissioning. Final filtration should be treated as a backstop; position the RO and UF membrane elements and filter cartridges to protect the POU, but expect the loop itself to do most of the work.
Frequently Asked Questions
What numeric POU particle count or size limit does SEMI F63 actually require?
The supplied research names SEMI F63 and ASTM D5127 as the governing industry guidelines but does not quote a specific numeric POU particle count or size threshold (MDPI 2025). The site-specific target must be pulled directly from SEMI F63 / ASTM D5127 for the relevant electronic or pharmaceutical grade. A defensible design brief cites the standard's value and demonstrates how the loop design and sampling plan maintain it at every POU.
How should I decide between PVDF and CPVC for a new UPW distribution loop?
Use the binding-risk framework above. If multi-month TOC and organic-particle release is the constraint, the section-level autopsy data support PVDF: most PVDF sections stayed within 0.4–2.3 mg/L, while CPVC rose from ~2.2 mg/L at 8 h to ~7.1 mg/L at 3 d under standardized leaching at 60 °C (MDPI 2025). Ask the supplier for section-level leaching data on their proposed piping, rather than just bulk material datasheets, as position drives significant performance differences.
