Why Carrier Choice Drives the Whole MBBR Design
Media selection for MBBR means choosing a plastic biofilm carrier whose protected surface area (typically 500–1200 m²/m³), density (0.92–0.97 g/cm³ for HDPE), shape, and fill fraction (10–70% of reactor volume) match the target wastewater duty. For municipal and low-strength industrial effluent, cylindrical carriers like Kaldnes K1 at 30–40% fill are the most validated choice; for high-strength or hydraulic-shock duty, larger or denser carriers with 20–30% fill are preferred. The reactor itself — the tank, the blower, the screens — is downstream of that decision. Get the carrier wrong and every other piece of equipment has to be re-sized around it.
The academic consensus treats the biofilm carrier as the unit operation, not the reactor. Ødegaard's review of the MBBR process (S4) and the Springer chapter on biocarrier kinetics both frame the carrier surface as the active element; the vessel only holds it in motion. That is why a Kaldnes K1 pilot at 20% fill removed 91% BOD and 93.81% COD from laundry wastewater at 10-day HRT (Kusuma et al., 2019, S1) — the engineering result is a property of the carrier's protected area per m³, not the tank volume.
The cost of a bad choice is concrete, not theoretical. A carrier specified only on gross surface area (rather than protected area) can be 2–3× inflated in apparent performance, which silently forces a 30–60% larger reactor to hit the same effluent target. A carrier specified too dense — outside the 0.92–0.97 g/cm³ window — doubles the air required to keep it in suspension, and aeration dominates MBBR OPEX for the full 15+ year service life. Procurement treats media as a line item; the rest of the article treats it as the design decision it actually is.
The rest of this guide reduces that decision to four engineering parameters — protected surface area, shape, density, and material — then maps them to a carrier-vs-duty matrix, a fill-fraction rule, and a worked sizing example using the S1 laundry case as a reference point.
The Four Engineering Parameters That Define MBBR Media
Protected surface area, measured in m² of biofilm-bearing surface per m³ of reactor volume, is the single number that drives tank sizing. Commercial MBBR carriers span 500–1200 m²/m³, and the number must be protected area — the surface shielded inside the carrier's geometry — because exposed outer surface cannot hold biofilm under mixing shear. Datasheets that quote "total" or "specific" surface area above 1500 m²/m³ are usually reporting gross, not protected, geometry.
Carrier shape sets both the protected-area ceiling and how uniformly the bed mixes. Three families dominate the market: small-diameter cylinders (Kaldnes K1, K3 — the most studied family in the academic literature, including S1); spheres; and structured-sheet shapes such as the BioSphere and Active-Cell designs. Cylinders give the highest protected area per unit volume because the internal cross-fins multiply the surface inside a small envelope; spheres mix most uniformly because no orientation is preferred. Structured sheets sit between the two, with the added advantage of predictable headloss through the retainer.
Density is the parameter that determines whether the carrier stays in motion or sinks. Virgin HDPE at 0.92–0.97 g/cm³ is the established window — close to water, so coarse-bubble aeration can fluidize the bed without excessive pressure. S1's Kaldnes K1 work sits inside that window, which is why 20% fill worked at all in a 10-day HRT trial. Outside the window, the choice becomes uneconomic: lighter carriers (PP at 0.90 g/cm³) risk float-out under intermittent aeration, and heavier filled carriers (>1.05 g/cm³) need blower upgrades that no longer pay back the carrier cost saving.
Material and durability round out the parameter set. Virgin HDPE is the default; polypropylene (PP) is acceptable but slightly more brittle under UV; bioplastic carriers (Accinelli et al., 2012, cited in S5) have been validated for synthetic-pollutant removal and offer a sustainability angle in jurisdictions with biobased procurement mandates. Whatever the polymer, the datasheet must list UV resistance, chemical resistance to the target effluent (oils, solvents, pH extremes), and abrasion rating. MBBR carriers are expected to last 15+ years in continuous service; underspecifying the polymer is one of the most common retrofit failures.
| Parameter | Typical Range / Value | Engineering Consequence of Getting It Wrong |
|---|---|---|
| Protected surface area | 500–1200 m²/m³ | Undersizing forces 30–60% larger tank for same effluent |
| Shape family | Cylinder (K1/K3), sphere, structured sheet | Wrong shape → uneven mixing, dead zones, carrier attrition |
| Density (HDPE) | 0.92–0.97 g/cm³ | Outside window → float-out or blower oversizing |
| Material | Virgin HDPE, PP, bioplastic | Poor UV/chemical resistance shortens service life below 10 years |
| Carrier diameter (cylindrical) | 7–12 mm typical for K1/K3 class | Drives screen aperture and minimum aeration energy |

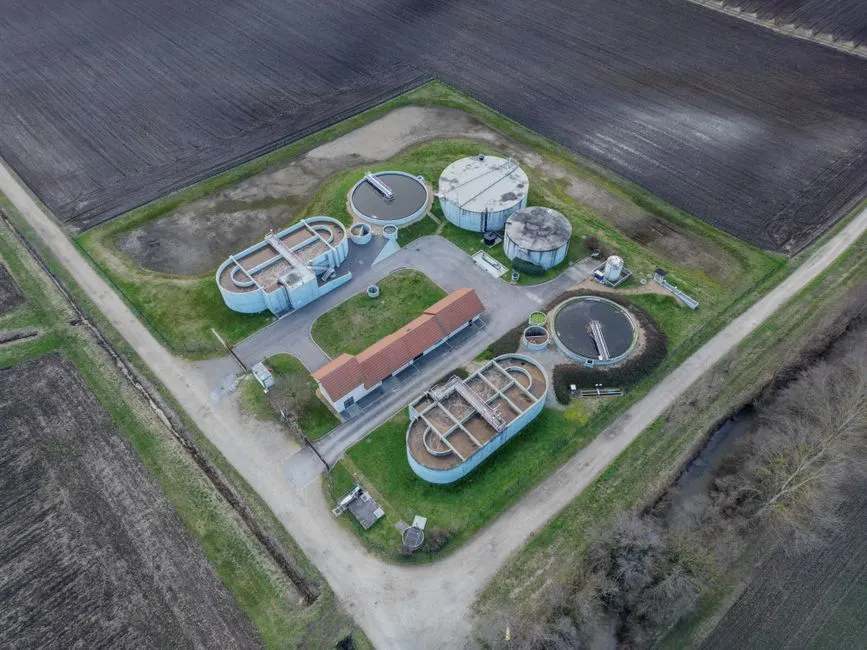

Matching Carrier Type to Wastewater Duty

Influent characteristics map to carrier parameters in a way that the academic literature has documented repeatedly. The four duty classes below cover the bulk of MBBR applications; the worked example in the next section uses S1's laundry data as the validation point.
For municipal and low-strength industrial wastewater (BOD <500 mg/L), the established choice is a small-diameter cylindrical HDPE carrier (Kaldnes K1 or K3) at 30–40% fill. This is the most-documented case in the literature: Andreottola et al. (2000) and Kermani et al. (2008, 2009) — both cited in S5 — report consistent performance on settled municipal sewage in this configuration. The hydraulic retention time is short (4–8 hours), and the biofilm is heterotrophic-dominated, so high protected area per volume matters more than carrier durability under shock loads.
For high-strength industrial wastewater (BOD >1000 mg/L — food, pulp, landfill leachate, textile effluent), larger or denser carriers at 20–30% fill are preferred, often staged across two reactors in series to avoid shock loading. Jahren et al. (2002, S5) operated a thermophilic MBBR on thermo-mechanical pulping whitewater at high OLR, and Borghei & Hosseini (2004, S5) treated phenolic wastewater under elevated organic load using a denser carrier fill. The lower fill fraction is deliberate: at high BOD, biofilm grows fast, and a too-dense bed traps biomass and goes anaerobic in pockets.
For nitrification polishing — low C:N wastewater where the goal is ammonia oxidation — high fill (60–70%) with smaller carriers maximizes the protected area available to the slow-growing nitrifiers (Nitrosomonas, Nitrobacter; kinetics summarized in S4). Hem et al. (1994, S5) demonstrated the principle, and the design has been replicated at full scale across Europe and Asia for tertiary ammonia removal downstream of secondary treatment.
For surfactant- and phosphate-laden streams like the S1 laundry case, the published reference is Kaldnes K1 at 20% fill, 10-day HRT, with biofilm developed over 15 days of seeding. The result — 91% BOD, 93.81% COD, 86.10% phosphate, 88.22% surfactant removal at 10 days (Kusuma et al., 2019, S1) — sits inside the cylindrical-HDPE, 20–30% fill window the broader literature predicts for moderate-strength industrial duty.
| Wastewater Duty | BOD / C:N Profile | Recommended Carrier | Fill Fraction | Typical HRT |
|---|---|---|---|---|
| Municipal / low-strength industrial | BOD <500 mg/L | Kaldnes K1 or K3 (HDPE cylinder) | 30–40% | 4–8 h |
| High-strength industrial (food, pulp, leachate) | BOD >1000 mg/L | Larger / denser HDPE carrier | 20–30% | 12–48 h, often 2 stages |
| Nitrification polishing (low C:N) | NH₃-N dominant, low BOD | Small high-area HDPE carrier | 60–70% | 6–12 h |
| Surfactant / phosphate (e.g., laundry) | BOD 400–900 mg/L, high P, surfactant | Kaldnes K1 (validated, S1) | 20% | 10 days (S1 lab scale) |
Fill Fraction, Aeration Energy, and Screen Sizing
Fill fraction is the percentage of working reactor volume occupied by carriers. It is set by the duty table above, but it is also constrained by mixing: above ~40% fill in a single-stage aerated MBBR, the bed compacts and carriers stop moving, which sloughs biofilm irregularly and creates anaerobic pockets. S1 operated at 20% fill specifically to keep the K1 bed in continuous motion under coarse-bubble aeration; the same study confirmed the 91% BOD result only at the 10-day HRT, not at 6 or 8 days.
Aeration must keep every carrier in motion, not just oxygenate the water. Coarse-bubble density of 20–40 Nm³/(m²·h) is the typical design range for an HDPE carrier at 0.92–0.97 g/cm³; finer bubbles waste pressure without improving bed fluidization. S1 used an aerator-driven air injection in a 20%-fill K1 reactor — coarse bubble, low pressure, sufficient to fluidize. The OPEX penalty for over-dense carriers is not subtle: every 0.05 g/cm³ above 0.97 g/cm³ adds roughly 10–15% to blower energy for the same fluidization, and the blower runs continuously.
Compared with membrane bioreactors, MBBR uses less energy because there is no membrane scouring — only aeration (per bioprocessH2O's MBBR product literature, S3). But "less than MBR" is not "low": aeration is still the dominant OPEX line item for a moving bed biofilm reactor, so carrier density directly drives lifetime operating cost. MBBR effluent that needs polishing downstream — for example, suspended solids carryover — can be handled by a MBR membrane bioreactor system, but that is a separate decision from carrier selection.
Screen (retainer) aperture must be smaller than the smallest carrier dimension. For Kaldnes K1 (nominal 7 mm cylinder, ~10 mm length), the standard retainer is a wedge-wire screen with 5–6 mm slot opening. Undersize the aperture and headloss across the screen becomes a continuous pumping penalty; oversize it and carriers escape to the downstream clarifier. The retainer also has to be preceded by a coarse bar screen to keep rags and fibers from blinding it — for that, a rotary mechanical bar screen is the standard upstream guard. Aeration-system reliability downstream of the screen is covered in Aeration Diffuser Fouling Troubleshooting: 2026 Field Guide, and textile-industry carrier duty is treated in detail in the Integrated Wastewater Treatment Plant for Textile Industry (2026 Guide).

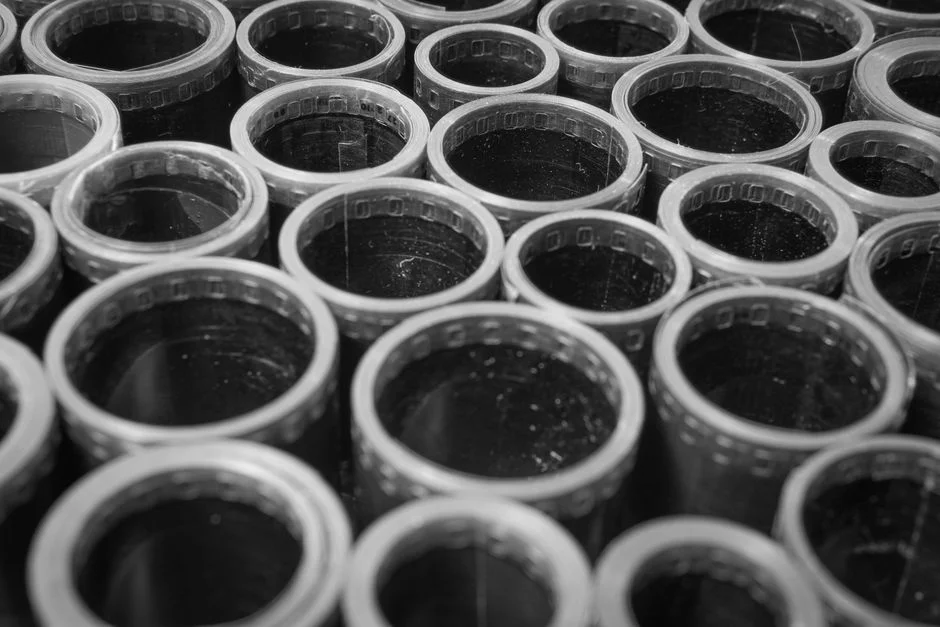

A Worked Selection Example for a Real Influent

The four parameters become a method once they are applied to a real influent. The S1 laundry case (Kusuma et al., 2019) is a useful worked example because every influent number, fill fraction, and removal efficiency is published and reproducible.
- Step 1 — Define the influent. BOD 441 mg/L, COD 910 mg/L, phosphate 38.24 mg/L, surfactant 47.8 mg/L. This is moderate-strength industrial, surfactant- and phosphate-laden, biodegradable organic load dominated by linear alkylbenzene sulfonate and carboxymethyl cellulose.
- Step 2 — Set the treatment target. Assume discharge to municipal sewer under a typical China/Indonesia-style threshold of BOD <50 mg/L (Kusuma et al. achieved 39.67 mg/L at 10-day HRT, S1). That implies a required removal of roughly 91% BOD and 94% COD — within the MBBR envelope for HDPE cylindrical carriers.
- Step 3 — Choose the carrier. Kaldnes K1-class HDPE cylinder, density ~0.95 g/cm³, protected area 500 m²/m³, at 20% fill. This matches the S1 study conditions exactly and is the most documented configuration for this duty class.
- Step 4 — Size the reactor. With 20% fill and 10-day HRT validated by S1 (Kusuma et al., 2019, achieving 91% BOD, 93.81% COD, 86.10% phosphate, 88.22% surfactant removal), the working volume V follows directly from daily flow Q as V = Q × HRT. For a 50 m³/d laundry stream, V = 500 m³, of which 100 m³ is carrier volume and 400 m³ is water plus headspace.
The same four-step method generalizes: define the influent (load, temperature, C:N), set a target effluent (regulated or reuse-class), pick a carrier that sits in the matching row of the duty table above, then size V from the validated HRT for that fill fraction. If the validated HRT for the chosen fill is missing from the literature, the design is not ready — go back to Step 3.
Common Media-Selection Mistakes and How to Avoid Them
Specifying the cheapest carrier on the bid list without checking protected area is the most expensive error in MBBR procurement. Datasheets that quote "specific surface area" above 1500 m²/m³ are almost always reporting gross — including the outer envelope — and the actual protected area can be 30–50% of that figure. The protected-area number is what drives the design, and it must be requested in writing before the carrier is approved for purchase.
Over-filling the reactor "to squeeze more biology in" is the second most common mistake. Above ~40% fill in a single-stage aerated MBBR, the bed compacts, mixing fails, and biofilm sloughs irregularly — the exact opposite of the intended outcome. If the design demands more biological capacity than 40% fill can deliver, the right answer is a second reactor stage, not a higher fill on the first one.
Mixing carriers of different densities in a single reactor is a third error. Floaters and sinkers stratify within minutes of aeration stopping, and the lower layer becomes anaerobic — producing sulfide and odors rather than the intended BOD removal. One carrier, one reactor, one fill fraction.
Finally, specifying biofilm carriers by photograph rather than by parameter sheet hides large performance differences behind visual similarity. Two nominally identical "white HDPE cylinders" can differ by 2× in protected area and 0.05 g/cm³ in density. Always require the parameter sheet — protected area, density, material grade, UV/chemical resistance, and a 15-year abrasion rating — before sign-off.
Frequently Asked Questions
What is the best MBBR media for municipal wastewater?
Small-diameter cylindrical HDPE carriers such as Kaldnes K1 or K3 at 30–40% reactor fill remain the most validated option for municipal and low-strength industrial duty (per the biocarrier review, S5; Ødegaard's MBBR chapter, S4). They offer protected surface area in the 500–800 m²/m³ range, density near 0.95 g/cm³, and 15+ years of service life in continuous operation.
What fill fraction should I use for an MBBR?
Use 30–40% for municipal and low-strength industrial wastewater, 20–30% for high-strength industrial streams, and 60–70% for nitrification polishing where slow-growing nitrifiers need maximum protected area. Above 40% in a single-stage aerated MBBR, the bed compacts and mixing fails — confirmed by multiple studies cited in S5.
What protected surface area should I target when selecting MBBR carriers?
Target 500–1200 m²/m³ of protected (not gross) surface area. The S1 laundry study used Kaldnes K1 at roughly 500 m²/m³ protected area and 20% fill, achieving 91% BOD removal at 10-day HRT (Kusuma et al., 2019, S1). Higher protected area reduces tank volume but rarely justifies a 2× cost premium above 800 m²/m³ for most industrial duties.
HDPE or PP for MBBR biofilm carriers?
Virgin HDPE at 0.92–0.97 g/cm³ is the default and is what the academic literature — including the S1 Kaldnes K1 work — uses. Polypropylene (PP) is acceptable but slightly more brittle under UV and is typically 5–10% more expensive per m³. Bioplastic carriers (Accinelli et al., 2012, cited in S5) are validated for synthetic-pollutant removal and are worth specifying where biobased procurement applies.
How long do MBBR biofilm carriers last in service?
Virgin HDPE carriers in municipal and industrial MBBR service are typically rated for 15+ years of continuous operation, provided the polymer is UV-stabilized and chemically compatible with the influent. Carriers that fail before 10 years almost always do so because of an unrecorded chemical incompatibility (oils, solvents, pH <2 or >12) or UV exposure in uncovered tanks — both preventable at the specification stage.
