Start Here: A 5-Minute Triage for a Sick Oxidation Ditch
Oxidation ditch troubleshooting starts with four readings and a stopwatch: dissolved oxygen (DO) at three points along the channel, mixed liquor suspended solids (MLSS), the 30-minute settled sludge volume (SV30), and a quick SVI = (SV30/MLSS) × 1,000. A healthy extended-aeration racetrack reactor runs at DO 1.5–2.5 mg/L, SVI 50–150 mL/g, and MLSS 3,000–6,000 mg/L inside an HRT envelope of 6–30 hours per EPA design guidance (S3, EPA 832-F-00-013, 2000-09). If your numbers fall inside those bands, the ditch is fine and the problem is downstream; if they fall outside, jump to the symptom row in the table below. The whole triage should take five minutes and produces a single decision: stay on current setpoints, adjust one knob, or escalate to a corrective action in the next section.
| Symptom on shift | First measurement to confirm | Threshold that triggers action | Go to section |
|---|---|---|---|
| Foam on the channel surface | F/M ratio, SVI, MLSS | F/M >0.3 lb BOD/lb MLSS-day or SVI >150 | Foam on the Ditch |
| Sludge will not settle in the clarifier | SVI, SV30, microscope check | SVI >150 mL/g | Bulking Sludge |
| DO crash or uneven aeration | Three-point DO sweep, rotor amperage | DO <1.0 mg/L in aerobic zone | Dissolved Oxygen Crash |
| High effluent TSS, NH3, or NO3 | Effluent TSS, ammonia, nitrate, SRT | TSS >30 mg/L or NH3 >5 mg/L in summer | Effluent Quality Problems |
| H2S odor or floating solids | DO at channel wall, clarifier blanket depth | DO <0.5 mg/L at wall or blanket >3 ft | Odor and Clarifier Blanket Loss |
| Clarifier blanket washout | RAS flow vs. design, bar screen condition | RAS <50% of design flow or rags visible | Odor and Clarifier Blanket Loss |
Foam on the Ditch: White Billows vs. Dark Grease and What Each Means
Foam is a diagnostic signal, not a housekeeping problem, and the color tells you which way to push the controls. White, billowy, frothy foam that floats in stable pillows is almost always young sludge operating at a high F/M ratio with insufficient SRT; the activated-sludge population has not yet produced enough extracellular polymers to trap the foam structurally, so the foam builds up faster than it can break. Corrective action: stop wasting for 24–48 hours to let SRT climb, verify the rotor is delivering the design oxygen transfer rate (check amperage against nameplate), and check for a morning BOD spike from a sewer discharge or food-processing source. If influent total BOD has jumped more than 30% above the trailing 7-day average, dilution or equalization upstream is the real fix.
Thick, dark, greasy or chocolate-brown foam that smears and smells earthy points the other direction: old sludge, foam-forming filaments such as Nocardia or Microthrix parvicella, or a recent toxic/inhibitory load. Corrective action: resume or increase wasting to drop SRT back into the design window (typically 20–30 days for extended aeration), pull a microscope slide to confirm filament dominance, and check pH (target 6.5–8.0) and temperature. If filaments are confirmed, apply chlorine to the RAS line at 2–3 mg Cl2 per gram of MLSS per day, dosed at the RAS pump suction where turbulence provides rapid mixing. Spray nozzles and water jets on the rotor look like a fix but only collapse the visible foam; they do nothing to the underlying sludge age. Foam that returns within hours of being sprayed is your confirmation that the root cause is upstream.
Bulking Sludge and the SVI That Will Not Settle
Filamentous bulking is the single most reported operational issue in oxidation ditches, and the SVI number is your single best diagnostic. The working bands: SVI <100 mL/g settles well, 100–150 mL/g is the watch zone where you should already be reviewing wasting and DO, 150–200 mL/g is likely bulking, and >200 mL/g is confirmed bulking that will cost you solids in the effluent within 24 hours. Across more than 9,200 U.S. municipal oxidation ditch installations referenced in the EPA fact sheet (S3, 2000-09), bulking and foaming together account for the majority of unplanned clarifier downtime. Pull a microscope slide before you act; filamentous bulking shows long, stringy bacteria bridging floc particles, while non-filamentous (viscous) bulking shows tight, compact floc surrounded by clear water and is usually a F/M or dissolved oxygen problem rather than a filament problem.
Run the three-knob fix in this order. (1) Raise RAS return rate to 75–100% of design to thicken the mixed liquor in the aeration basin and starve filaments of the low-substrate gradient they prefer. (2) Verify and adjust the DO setpoint to 1.5–2.5 mg/L across the full aerobic channel length; a single low-DO pocket is often the only thing feeding the filament population. (3) Apply chlorine to the RAS line at 2–3 mg Cl2 per gram of MLSS per day, staged over 7–14 days, to knock back filamentous organisms without crashing the floc-formers; this only works for filamentous bulking, not viscous bulking. After the immediate fire is out, review the F/M ratio (target 0.05–0.15 lb BOD/lb MLSS-day for extended aeration) and confirm SRT is long enough to retain nitrifiers at the current basin temperature. Operators running activated-sludge plants with chronic bulking should also confirm downstream dewatering capacity, since wasted sludge from a bulking event will need to be handled by a plate and frame filter press for waste activated sludge that can cope with the higher polymer demand of bulker sludge.
Dissolved Oxygen Crash and Uneven Aeration
An oxygen crash is rarely a single failure; it is usually a load spike that meets a marginal aerator, a probe that has drifted, or a rotor that has lost one of its blades. Diagnose in this order. Pull the DO probe out and check it against air-saturated water (should read 8–9 mg/L at 20 °C); a probe that reads 6.0 mg/L in air is telling you the controller will run 25% low all shift. Walk the channel and take DO at the upstream end, midpoint, and just before the rotor discharge; a swing greater than 1.5 mg/L between points means you have a mixing problem, not a load problem. Check rotor amperage against nameplate; a rotor pulling 15% less than nameplate is delivering 15% less oxygen, and the cheapest fix is usually the mechanical one.
Setpoint strategy matters because pushing DO too high is as wasteful as letting it crash. Target 1.5–2.5 mg/L in the aerobic zone for BOD removal and nitrification; lower the setpoint to 0.5–1.0 mg/L if the plant is running an anoxic swing zone for total nitrogen removal, since DO above 0.5 mg/L in the anoxic zone short-circuits denitrification. The 2022 EPA optimization webinar (S5, 2022-01) reviewed facilities at Chinook (MT), Great Bend (KS), and Cookeville (TN) where operators running well outside the original design DO envelope consistently achieved better TN and TP removal than the design predicted. Before you change the setpoint, however, confirm three things: ammonia in the effluent (low NH3 with low DO means you are over-aerating), basin temperature (oxygen demand rises roughly 5% per °C above 15 °C), and influent flow (a 20% flow increase in the morning shift is the most common cause of a 2 p.m. DO crash).
Effluent Quality Problems: High TSS, High Ammonia, or High Nitrate
Effluent failure is almost always an upstream operating cause showing up downstream. High effluent TSS with normal MLSS and a healthy SVI means the problem is in the clarifier, not the ditch: check RAS rate (should be 50–100% of forward flow, with 75% a common target), blanket depth (keep below 3 ft below the weir), and sludge age in the clarifier (long residence invites denitrification and rising sludge). High effluent ammonia with normal DO and warm basin temperature is a nitrification loss; nitrifiers are slow-growing and the SRT is too short for the current temperature, or pH has drifted below 6.8 where nitrification stalls. The bench-scale reactor work of Ramadhany et al. (S4, 2020) on a 250 L oxidation ditch reactor demonstrated 94.1% ammonia removal from 0.18 mg/L down to 0.07 mg/L under properly tuned conditions, which is the upper bound a well-operated full-scale system can hit; if you are well below that figure, the SRT/FOOD ratio needs adjustment, not the aeration.
High nitrate in the effluent when the plant is targeting total nitrogen means the anoxic zone is not being respected, the swing zone is leaking DO, or the influent does not carry enough carbon to drive denitrification. Rittmann and Langeland (1985), as cited in the EPA fact sheet (S3, 2000-09), reported nitrogen removals greater than 90% from full-scale oxidation ditches running anoxic/aerobic cycling, so the target is achievable. If nitrate is high but ammonia is low, the problem is denitrification, not nitrification: drop the DO setpoint in the swing zone, add an external carbon source (methanol or waste glycerol) if BOD/N ratio is below 4:1, and confirm the swing zone mixers are running so the anoxic mass is actually in contact with the carbon.
Odor, Floating Solids, and Clarifier Blanket Loss
Three complaints that bring the regulatory phone call: hydrogen sulfide odor, floating sludge in the clarifier, and clarifier blanket washout. Hydrogen sulfide odor almost always means anaerobic conditions in a corner, behind a baffle, or along a channel wall where the rotor cannot push the mixed liquor. Take a DO reading at the wall, halfway between the rotor and the wall; if it is below 0.5 mg/L while the bulk liquor is at 2.0 mg/L, you have a dead zone. Corrective action: reposition or add a mixer to sweep the wall, raise the rotor submergence if adjustable, and confirm the channel is not silted (silting reduces effective depth and cuts oxygen transfer).
Floating sludge in the clarifier is usually denitrification in the clarifier blanket: nitrate-rich mixed liquor enters the clarifier, sits under low-DO conditions, and the denitrifying bacteria release nitrogen gas that lifts floc particles. Corrective action: increase RAS rate to reduce clarifier detention time, and decrease the SRT slightly to keep more nitrate in the aeration basin rather than recycling it. Sludge blanket washout is the worst case and means the blanket has reached the weir. Check the RAS pump curve against current flow (a worn impeller can drop RAS by 30% without anyone noticing), check the RAS line for blockage, and walk back to the headworks to confirm the bar screen is not bypassing rags that are now fouling the RAS piping; a working rotary mechanical bar screen at the head of the plant is the cheapest insurance against this failure mode.

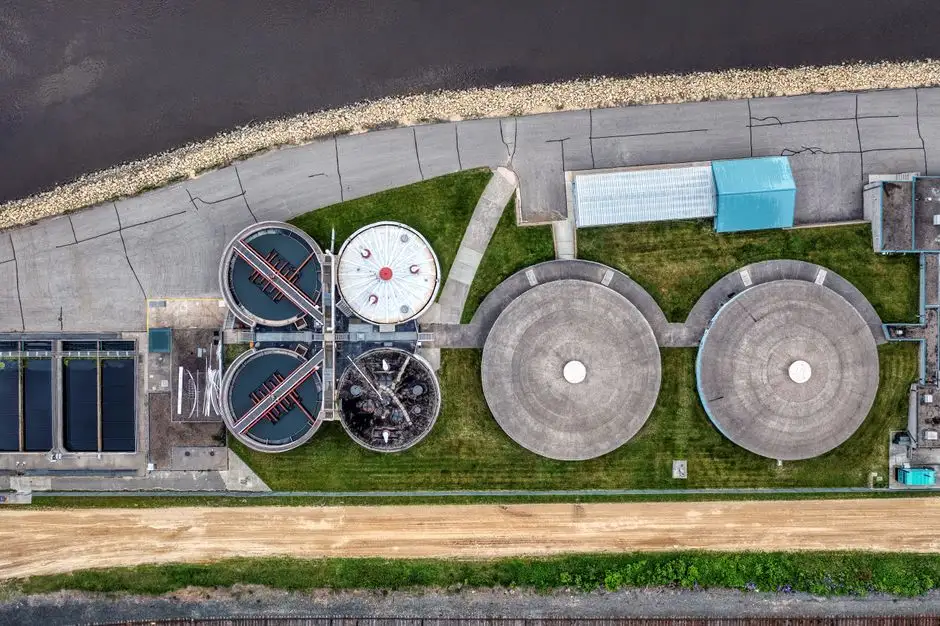

Prevention: Setpoints, Routines, and the Numbers to Lock In
Shift firefighting dies down when the daily and weekly routines are written down and the parameter setpoints are posted next to the SCADA screen. The table below is the working envelope for a typical extended-aeration oxidation ditch treating municipal wastewater; specific plants will tune from here based on influent temperature and load.
| Parameter | Target band | Action threshold | Source |
|---|---|---|---|
| Dissolved oxygen (aerobic zone) | 1.5–2.5 mg/L | <1.0 mg/L for >30 min | EPA design, plant-specific |
| MLSS | 3,000–6,000 mg/L | <2,500 or >7,000 mg/L | Plant-specific |
| SVI | 50–150 mL/g | >150 mL/g | Standard practice |
| F/M ratio | 0.05–0.15 lb BOD/lb MLSS-day | >0.3 or <0.03 | Standard practice |
| SRT (extended aeration) | 20–30 days | <15 days at <15 °C | EPA 832-F-00-013 |
| RAS rate | 50–100% of forward flow | <50% or >100% | Standard practice |
| HRT | 6–30 hours | Outside design range | EPA 832-F-00-013 |
| pH | 6.5–8.0 | <6.5 or >8.5 | Standard practice |
Daily routine (every shift): DO probe calibration check, three-point DO sweep across the channel, SV30, visual foam check, and a quick microscope look at the mixed liquor at least once per shift. Weekly routine: SVI trend, complete effluent nutrient profile (NH3, NO3, PO4), wasting-rate review against SRT target, and a check of WAS solids concentration. When to escalate: rotor vibration, gearbox noise, or a parameter that resists correction across two consecutive shifts; that is the point to call OEM support rather than keep tuning. If the recurring problem is chemical feed (chlorine for filament control, methanol for denitrification, polymer for dewatering), the operational lever is usually the dosing skid, and the field-tested fixes are documented in a chemical dosing system troubleshooting guide.
Frequently Asked Questions
What is the target dissolved oxygen in an oxidation ditch?
The working target is 1.5–2.5 mg/L in the aerobic zone for BOD removal and nitrification; plants running an anoxic swing zone for total nitrogen drop the anoxic zone to 0.5–1.0 mg/L. Readings below 1.0 mg/L for more than 30 minutes trigger a root-cause review.
What SVI indicates bulking in an oxidation ditch?
SVI of 150–200 mL/g indicates likely bulking, and SVI above 200 mL/g is confirmed bulking that will cost solids in the effluent within 24 hours. The corrective sequence is raise RAS to 75–100% of design, verify DO at 1.5–2.5 mg/L, then chlorinate RAS at 2–3 mg Cl2 per gram of MLSS per day for filamentous bulking only.
How long should the hydraulic retention time be in an oxidation ditch?
EPA design guidance sets HRT between 6 and 30 hours for most municipal oxidation ditch plants (EPA 832-F-00-013, 2000-09). Extended-aeration designs sit at the high end of that range, typically 18–30 hours, to support the long SRT needed for nitrification.
Why is my oxidation ditch producing foam?
White billowy foam is young sludge with high F/M and insufficient SRT; dark, greasy, chocolate-brown foam is old sludge with foam-forming filaments such as Nocardia or Microthrix, often after a toxic load. The first fix is wasting adjustment to move SRT back into the design window, not a water spray on the rotor.
