What Are UASB and CSTR Reactors?
The key difference between UASB and CSTR reactors lies in flow configuration and biomass retention: UASB uses upward flow with granular sludge bed (HRT as low as 6–12h), while CSTR requires full mixing and longer retention (15–30d). UASB achieves 85–90% COD removal at higher OLR (5–15 kg COD/m³/d), whereas CSTR operates at 3–6 kg COD/m³/d with lower efficiency but better solids tolerance.
An Upflow Anaerobic Sludge Blanket (UASB) reactor treats wastewater by channeling it upward through a dense, granular sludge bed. This design enables exceptional biomass retention, allowing microbes to form dense granules that settle quickly, preventing washout. A Continuously Stirred Tank Reactor (CSTR), in contrast, is a completely mixed tank where mechanical agitation ensures uniform conditions. Both are anaerobic digestion systems that convert organic pollutants into biogas—typically 60–70% methane—but they achieve this through fundamentally different hydraulic and solids retention strategies.
Engineers focus on three core parameters when evaluating these systems. Hydraulic Retention Time (HRT) is the average time liquid spends in the reactor. Solids Retention Time (SRT) is the average time biomass remains in the system. Organic Loading Rate (OLR), expressed as kg COD/m³/day, defines the daily organic load the reactor volume must process. The decoupling of HRT and SRT in a UASB enables high-rate treatment.
Design and Operational Differences
UASB reactor design centers on its three-phase separator, a critical component that partitions gas, liquid, and solid phases at the reactor's top without mechanical pumps, enabling biogas collection and internal sludge recirculation. CSTR design mandates external components like mechanical mixers and often external heat exchangers to maintain thermal homogeneity within the mesophilic range of 35–38°C.
The operational divergence between UASB and CSTR reactors is significant. A UASB’s upflow velocity (typically 0.8–1.5 m/h) facilitates granule formation and sustains a sludge bed, allowing for an HRT as short as 6–12 hours because the SRT can exceed 100 days. Conversely, a CSTR’s SRT is equal to its HRT, which must be much longer (15–30 days) to prevent biomass washout, resulting in a significantly larger tank volume for the same organic load. This makes the UASB footprint 60–70% smaller. A UASB requires stringent pre-screening to remove debris and prevent clogging of the sludge bed or separator, while a CSTR is inherently more robust and can handle high-solids feedstocks like raw manure or food waste with minimal pretreatment.
| Design/Operational Parameter | UASB Reactor | CSTR Reactor |
|---|---|---|
| Flow Configuration | Upflow through static sludge bed | Complete mixing with mechanical agitators |
| Key Component | Three-phase separator | Mechanical mixer & heat exchanger |
| Typical HRT | 6 – 12 hours | 15 – 30 days |
| Typical SRT | > 100 days (decoupled from HRT) | 15 – 30 days (equal to HRT) |
| Feedstock Tolerance | Low TSS (< 2,000 mg/L) | High TSS, fibers, fats |
| Pre-treatment Needs | Essential (screening, degritting) | Minimal |
| Energy Consumption | Low (influent pumping only) | High (mixing & heating) |
Performance Comparison: Efficiency, Loading, and Biogas Yield
UASB reactors deliver superior treatment efficiency and biogas yield for soluble waste streams, achieving 85–90% COD removal at high organic loading rates of 5–15 kg COD/m³/d. CSTRs operate effectively at lower OLRs of 3–6 kg COD/m³/d, achieving 70–80% COD removal but excelling with complex, particulate-rich substrates.
The methane yield per unit of COD removed is a critical economic metric. UASB systems typically produce 0.30–0.38 L CH₄/g CODremoved, capitalizing on the metabolic efficiency of granular sludge. Research indicates specific advanced reactors can achieve yields up to 30% higher than a standard UASB in certain cases. CSTRs generally produce 0.25–0.32 L CH₄/g CODremoved, as some energy is diverted to biomass growth and maintenance of the suspended culture. This performance varies by application; UASB outperforms with high-strength, low-solids wastewater from breweries or distilleries, while CSTR is better suited for high-fat, high-fiber waste from dairy or food processing plants. Startup time is another differentiator: a UASB requires 2–3 months to develop its granular sludge bed, while a CSTR can reach operational capacity in 3–4 weeks.
| Performance Metric | UASB Reactor | CSTR Reactor |
|---|---|---|
| COD Removal Efficiency | 85 – 90% | 70 – 80% |
| Typical OLR Range | 5 – 15 kg COD/m³/d | 3 – 6 kg COD/m³/d |
| Methane Yield (L CH₄/g CODremoved) | 0.30 – 0.38 | 0.25 – 0.32 |
| Optimal Wastewater Type | High-strength, soluble (sBOD > 80%) | High-solids, particulate, fats/fibers |
| Startup Time | 2 – 3 months (for granulation) | 3 – 4 weeks |
| Tolerance to Shock Loads | Low (requires stable conditions) | Moderate (dilution effect) |
For a deeper analysis of these performance characteristics in industrial settings, see our detailed guide comparing UASB and CSTR performance.
When to Choose UASB Over CSTR
Select a UASB reactor when treating high-strength wastewater with a high fraction of soluble COD, such as effluent from sugar mills, ethanol plants, or pharmaceutical production. Its compact design and high-rate treatment capability make it the default choice when footprint and energy consumption are primary constraints. The UASB’s efficiency stems from its granular sludge, which allows for a high active biomass concentration and a very short HRT.
This makes it ideal for wastewaters with COD above 2,000 mg/L and TSS consistently below 1,000–2,000 mg/L. The system operates with minimal energy input—essentially only the power required for influent pumping—as it requires no mechanical mixing. However, this high performance comes with operational sensitivity; UASBs require careful management of temperature, pH, and alkalinity to protect the granular biomass and are vulnerable to failure from shock loads of toxins or sudden flow changes. A UASB is unsuitable for wastewaters with high levels of fiber, grease, or suspended solids, which can disrupt granule formation or clog the three-phase separator.
Following anaerobic treatment, the effluent often requires polishing; an advanced MBR system for high-efficiency polishing is an excellent complement to a UASB.
When to Choose CSTR Over UASB
Choose a CSTR for waste streams with high solid content, such as animal manure, primary sludge, food waste, or pulp and paper mill sludge. Its completely mixed design provides superior tolerance for variable and complex feedstocks, making it the workhorse for co-digestion applications. The primary advantage of a CSTR is its ability to handle feedstocks with Total Suspended Solids (TSS) concentrations of 5-10% or higher, which would rapidly foul a UASB.
The constant mixing action provides a dilution effect, making the system more resilient to pH fluctuations and transient toxic shocks. This operational robustness simplifies management, as there is no sensitive sludge bed to monitor or maintain. CSTRs are well-suited for facilities that process multiple waste types, such as combining food waste (FVW) with sewage sludge. The trade-off is significantly higher energy consumption for continuous mixing and heating, and a much larger required tank volume due to the long HRT. The resulting sludge often has a higher moisture content, frequently requiring further processing with high-efficiency sludge dewatering equipment for anaerobic digester outputs.
Decision Framework: Matching Reactor to Application
An effective reactor selection process begins with a thorough analysis of the wastewater characteristics and plant constraints. A logical decision tree guides the choice:
- Analyze TSS: If influent TSS consistently exceeds 2,000 mg/L, a CSTR is likely necessary. If TSS is below 1,000 mg/L, a UASB becomes feasible.
- Evaluate OLR: For projected OLRs greater than 10 kg COD/m³/d, the UASB’s high-rate capacity offers significant volume and cost savings.
- Assess Constraints: If space is limited or energy costs are a major concern, the UASB’s small footprint and low energy use are decisive advantages.
- Consider Variability: If feedstock composition or flow rate is highly variable, the CSTR’s mixing and dilution provide greater operational forgiveness.
This logic is reflected in common industry applications:
| Industry/Application | Recommended Reactor | Primary Reason |
|---|---|---|
| Brewery/Distillery (high sCOD, low TSS) | UASB | High OLR capacity, soluble wastewater |
| Dairy Processing (high fats, proteins) | CSTR | Tolerates lipids and particulate matter |
| Sugar Mill Effluent (high strength, soluble) | UASB | Superior COD removal and methane yield |
| Municipal Sludge Digestion (high solids) | CSTR | Handles high TSS content effectively |

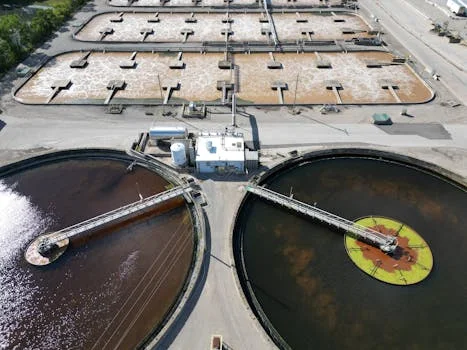

Frequently Asked Questions
What are the advantages of UASB reactor?
UASB advantages include low energy consumption (no mixing), a small physical footprint, capability for high organic loading rates (5-15 kg COD/m³/d), and excellent COD removal efficiency (85-90%) facilitated by granular sludge.
Can CSTR be used for biogas production?
Yes, CSTRs are widely used for biogas production, particularly from high-solid waste streams like manure, food waste, and organic sludges. While specific methane yield can be lower than a UASB, total biogas production is significant due to the high volumetric loading of organics.
What are the criteria for UASB design?
Key UASB design parameters include influent COD concentration (optimal range 5,000–15,000 mg/L), hydraulic retention time (HRT of 6-12 hours), upflow velocity (0.8-1.5 m/h), and the precise design of the three-phase separator to ensure efficient gas-solid-liquid separation.
Is UASB suitable for low-strength wastewater?
No, UASB performance and granule stability deteriorate significantly with low-strength wastewater (COD < 2,000 mg/L). For such streams, aerobic treatment systems like activated sludge or an MBR are more appropriate and efficient.
How does temperature affect CSTR performance?
CSTR performance is highly temperature-dependent. The optimal mesophilic range is 35–38°C. Methane production can drop by 40–60% if temperature falls below 30°C, necessitating reliable heating systems to maintain efficiency.
