PCB Wastewater Treatment Zero Liquid Discharge System

A PCB wastewater treatment zero liquid discharge system stacks chemical dosing, microfiltration, vibratory RO, and ion exchange to reach 99.8% copper recovery. At 50-100 m³/h, CAPEX runs $1.5-3M and OPEX $200,000-$400,000 per year, against hauling near $1.2M. Payback clusters near 2.5 years.

At 50-100 m³/h, that same system costs $1.5 million to $3 million to build and $200,000-$400,000 per year to run, while hauling the same non-compliant load can reach $1.2 million per year. This guide covers the 2025 engineering specs, ZLD cost breakdown, and the discharge rules that actually apply to PCB facilities.

Operating a high-volume printed circuit board plant without an integrated treatment train drives hauling and disposal fees to $800,000-$1.2 million per year (HydropureWater field data, 2025). Those costs stem from the failure of standard precipitation on complexed metals and high-molecular-weight organics. According to EPA 2024 enforcement data, copper, nickel, and tin remain the top three compliance violations for the electronics industry, and the resulting fines often exceed the cost of a system upgrade. On jobs above 50 m³/h, tanker invoices usually dwarf the coagulant line.

Traditional physical-chemical systems fail at a rate of 30-50% against modern PCB effluents. Chelating agents and surfactants in etching and plating lines keep metal ions dissolved instead of letting them precipitate. When metals bypass treatment, operators face illegal discharge or off-site hauling at $1.2M/year. A Northeastern PCB facility that completed a hybrid ZLD retrofit cut off-site hauling volume 80%, shifting from daily tanker pickups to monthly sludge disposal.

Lost raw materials add a second cost layer. Copper in etching rinses often reaches levels where recovery pays for itself. Without a copper recovery stage, plants wash thousands of dollars of high-purity copper down the drain each month. Recovery-focused operation protects margin as well as compliance.

Hybrid PCB Wastewater Treatment with Copper Recovery

Hybrid PCB wastewater treatment with copper recovery reaches 99.8% only when each waste stream is treated by its own chemistry. The 2025 industry standard has moved away from single clarifiers toward a modular stack that isolates contaminants before they reach the membranes. Chelated copper still has to be broken before a membrane, on every line sized for etch and plate rinses.

What Does Hybrid Copper Recovery Change?

Hybrid copper recovery changes the plant from hauling dissolved metal to stacking precipitation, membranes, and ion exchange until cumulative copper recovery hits 99.8%. Chemical pretreatment still has to break chelants before microfiltration. A clarifier alone does not close that gap on modern etch chemistry.

Stage 1: Chemical Pre-treatment. This stage breaks metal complexes and removes the bulk of suspended solids. For copper-rich streams, precise chemical dosing for PCB wastewater pre-treatment is essential. Typical dosing is 50-100 mg/L of ferric chloride (FeCl3) as the primary coagulant, held at pH 8.5-9.2 with lime or caustic soda. That window is enough to destabilize even chelated copper ahead of filtration.

Stage 2: Microfiltration (MF). Membranes with 0.1-0.5 μm pores replace the traditional clarifier. MF systems deliver 92-97% Total Suspended Solids (TSS) removal and handle flow swings better than gravity settlers. By blocking particles rather than relying on settling, MF protects downstream RO membranes from fouling.

Stage 3: Reverse Osmosis (RO) with Vibratory Shear. Standard spiral-wound RO fouls rapidly on high-complexity PCB waste. The 2025 blueprint uses VSEP® (Vibratory Shear Enhanced Processing). At a 12 gpm design flowrate, this RO stage achieves 95% permeate recovery. High shear stops organics and salts from building on the membrane surface, enabling higher concentration factors than traditional RO.

Stage 4: Selective Ion Exchange (IX). To close the gap to 99.8% recovery, residual heavy metals in the RO permeate (or in high-purity rinse streams) pass through chelating resins tuned for copper and nickel. The treated effluent then meets or exceeds the most stringent EPA discharge limits.

Stage 5: Sludge Dewatering. Concentrate from the MF and RO stages goes to a high-efficiency sludge dewatering for PCB wastewater treatment line. A plate and frame filter press produces a 25-35% dry-solids cake, which cuts landfill volume and yields a metal-rich cake for off-site metal recovery.

VSEP RO System for PCB Wastewater Treatment

A VSEP RO system for PCB wastewater treatment reaches 95% permeate recovery at a 12 gpm design flowrate where standard spiral-wound RO fouls on high-complexity PCB waste. The 2025 blueprint uses VSEP®, short for Vibratory Shear Enhanced Processing, to keep organics and salts off the sheet. High shear supports a higher concentration factor than a conventional cross-flow stage.

When Should a Plant Pick VSEP RO?

A plant should pick a VSEP RO train when spiral-wound membranes foul on etch organics at the design flow, including the 12 gpm case that still needs 95% permeate recovery. Shear has to stay high enough that organics do not plate onto the sheet. On high-organic etch rinses, start at the low end of the vibration band and raise frequency only if flux stalls.

To prevent membrane fouling in high-solids applications, the VSEP® unit runs at 50-60 Hz. That vibration produces a shear rate of 10^5-10^6 s^-1 at the membrane surface, roughly ten times the shear of a standard cross-flow RO. That mechanical action lets the system process wastewater that would otherwise need constant chemical cleaning. For final solids handling, chamber filter press efficiency for sludge dewatering in wastewater treatment is measured by cake at 25-35% dry solids, minimizing disposal weight at 7-10 bar operating pressure.

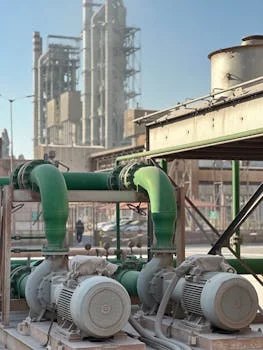

Reverse Osmosis Membrane System for PCB Wastewater

A reverse osmosis membrane system for PCB wastewater uses thin-film composite membranes with 0.0001-0.001 μm pores and rejects 99% of dissolved inorganic salts. The specifications below are the 2025 engineering specs for this duty. Membrane selection should match the molecular weight of surfactants and organics in the etching lines.

Most plants we size for use NF-grade organics in the 200-800 Da range, where thin-film composite RO is most efficient. Microfiltration membranes must use a 0.1-0.5 μm pore size to capture metal hydroxides and suspended solids. At those specs, flux stays at 30-60 GFD depending on influent TSS. For the secondary stage, RO systems for PCB wastewater permeate recovery use thin-film composite membranes with 0.0001-0.001 μm pores, rejecting 99% of dissolved inorganic salts—critical for facilities targeting water reuse in plating lines.

Chemical dosing is the control logic that runs the mechanical hardware. For effective heavy metal removal from wastewater, the dosing parameters below are recommended (HydropureWater Engineering Dept, 2025):

• Ferric Chloride: 50-100 mg/L (adjust based on influent COD/metal ratio).
• Hydrated Lime: 200-300 mg/L (to hold pH 8.8 for optimal nickel/copper precipitation).
• Anionic Polymer: 1-3 mg/L (to build large floc for MF efficiency).

ZLD Cost Breakdown for PCB Wastewater Treatment

A ZLD cost breakdown for PCB wastewater treatment at 50-100 m³/h puts capital cost at $1.5 million to $3 million. A zero liquid discharge system cost analysis has to look past sticker price to long-term operating savings. That CAPEX covers the full hybrid stack: chemical reactors, MF/RO membrane skids, ion exchange columns, and the sludge dewatering suite.

Operating Expenditure (OPEX) for that system lands at $200,000-$400,000 per year. That figure bundles chemical consumables (coagulants, acids, bases), membrane replacement (typically every 3-5 years), electricity for high-pressure pumps and vibratory motors, and specialized labor. Compare that to hauling. A 100 m³/h facility that relies on hauling for non-compliant waste can easily spend $1.2 million per year (per industry benchmarks, 2024), which makes the ZLD system cheaper over a 10-year horizon.

Return on Investment (ROI) for a hybrid ZLD system is generally reached in 2 to 4 years. When both scrap copper and avoided hauling are in the model, payback clusters near 2.5 years rather than year four. The number rests on three pillars:

1. Elimination of Hauling Costs: Savings of $800K-$1.2M/year.
2. Copper Recovery: Reclaiming 99.8% of copper yields $50K-$100K/year in scrap value or reduced raw material spend.
3. Water Reuse: High-quality RO permeate reduces city water or DI water demand, saving another $20K-$40K/year.

What CAPEX and OPEX data matter for ZLD?

For a 50-100 m³/h PCB plant, CAPEX typically runs $1.5-3M and OPEX $200,000-$400,000 per year. Hauling the same non-compliant load can reach $1.2M/year. Use those three numbers in a 5-year TCO model before you lock vendor scope.

How do design decisions cut long-term treatment costs?

Specify MF ahead of RO when chelators are present, size VSEP® shear for high-organics streams, and add IX only when local copper limits fall below 0.5 mg/L. Those choices cut membrane cleanings, hauling volume, and retrofit spend over a 5-year ownership window.

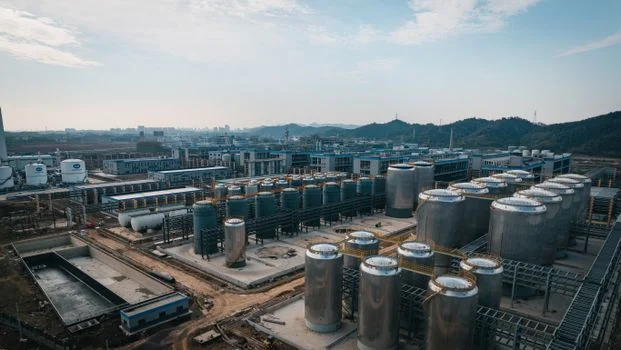

PCB Manufacturing Wastewater Copper Recovery System

A PCB manufacturing wastewater copper recovery system is chosen from daily flow, plating chemistry such as ENIG, and the discharge rule that actually applies. A system built for a small prototype shop is not the system a Tier 1 automotive PCB supplier should buy. Shops under 20 m³/h rarely justify full ZLD on day one.

According to 40 CFR 433.10, Part 433 covers printed circuit board manufacture, except existing indirect-discharging job shops and independent printed circuit board manufacturers, which remain under 40 CFR part 413. According to 40 CFR 413.84, the independent-plant cutoff is 38,000 liters (10,000 gal) per calendar day. Under that section, copper daily maximum is 4.5 mg/L (2.7 mg/L 4-day average), nickel 4.1 mg/L, and total cyanide 1.9 mg/L. According to 40 CFR 433.15, copper for the other metal-finishing plants is 3.38 mg/L as a one-day maximum and 2.07 mg/L as a monthly average.

The Cornell LII text of both sections, checked for this guide, still shows these 1983-era pretreatment numbers. According to 40 CFR 413.84(e), an optional program applies only when strong chelating agents are absent. The source must reduce hexavalent chromium and neutralize with calcium oxide or hydroxide. That option holds pH from 7.5 to 10.0, needs control-authority concurrence, and earns no POTW removal credits. Chelated PCB etch lines do not qualify for it.

Small Facilities (< 20 m³/h): For lower-volume shops, full ZLD is rarely justifiable on day one. The recommended path is chemical pre-treatment plus microfiltration for categorical compliance, with hauling reserved for the most concentrated residues. That keeps CAPEX in the $300K-$500K range.

Captive metal-finishing lines under 40 CFR 433.15 use copper monthly average 2.07 mg/L. Many POTWs still set local copper limits below 0.5 mg/L.

Medium Facilities (20-50 m³/h): These plants benefit most from a hybrid system that adds RO for water reuse. Recycling 70-80% of process water cuts municipal supply demand. Procurement teams should look for modular RO skids that can scale with new production lines.

To understand the underlying mechanics, engineers should review how RO membrane systems achieve 95% permeate recovery in industrial wastewater. For plants with heavy COD loads from developing and stripping lines, a paired PCB Organic Wastewater Treatment: 2026 Engineering Specs, 99 train can sit upstream of the metal-recovery stack.

Large Facilities (> 50 m³/h): High-volume plants need a full ZLD architecture with integrated copper recovery. At this scale, recovered copper and avoided hauling fees drive the ROI. Decisions should rest on a 5-year Total Cost of Ownership model, not first-cost alone.

These systems often integrate with electroplating wastewater treatment solutions for semiconductor fabs to handle the most toxic concentrated baths. Plants evaluating different vendor approaches can also compare against the broader PCB Wastewater Treatment Solution: 2026 Engineering Specs, H to benchmark CAPEX ranges.

Plants that make up rinse water from a municipal supply, and that need a tighter chemistry loop before plating, should compare supplier scope on the pcb chemical solution tap water page rather than sizing that loop inside this ZLD train.

Decision Tree for System Selection:

• Is your flowrate > 20 m³/h? If yes, evaluate RO for water reuse.
• Do you use chelating agents? If yes, specify Microfiltration over Clarification.
• Is your hauling cost > $200K/year? If yes, a hybrid ZLD system will likely have a < 3-year ROI.
• Are local copper limits < 0.5 mg/L? If yes, add a selective Ion Exchange polishing stage.

Who this is for: PCB plant managers, EPC contractors, and procurement teams sizing a hybrid ZLD system at 20-100 m³/h with copper, nickel, and tin in the waste stream. Who should look elsewhere: very small prototype shops under 5 m³/h (a batch chemical precipitation skid is usually enough), or facilities with no copper-bearing streams. Next step: send your daily flowrate and influent chemistry to request a sized ZLD proposal and ZLD cost breakdown.

Frequently Asked Questions

What is the most cost-effective PCB wastewater treatment solution for small facilities?

For facilities processing less than 20 m³/h, chemical pre-treatment combined with microfiltration is usually the most cost-effective path. That setup typically runs $300,000-$500,000 in CAPEX and focuses on meeting discharge limits so you avoid hauling the full waste stream. Reserve off-site disposal for the most concentrated residues only.

How much copper can be recovered from PCB wastewater?

Hybrid systems using ion exchange and advanced membrane separation can recover up to 99.8% of copper from process rinses. That keeps the plant compliant and creates a small scrap-metal revenue stream or reduces raw copper purchases. Recovery value commonly lands in the $50K-$100K/year range at medium-to-large plants.

What are the EPA limits for PCB wastewater discharge?

Under 40 CFR 413.84, independent PCB plants at or above 10,000 gal/day face copper at 4.5 mg/L daily and 2.7 mg/L as a 4-day average, nickel at 4.1 mg/L, and total cyanide at 1.9 mg/L. Earlier guidance often cited copper at 1.3 mg/L, nickel at 2.0 mg/L, and cyanide at 0.2 mg/L. According to 40 CFR 433.15, other captive lines face copper at 3.38 mg/L daily and 2.07 mg/L monthly, and many POTWs set limits as low as 0.1 mg/L.

How long does it take to install a hybrid ZLD system?

A typical 50 m³/h system takes 6 to 12 months to install. That timeline covers engineering design, equipment fabrication, permitting, on-site installation, and final commissioning with operator training. Long-lead membrane skids and permit reviews usually set the critical path. Most schedules at 50 m³/h slip on the permit review, not on skid assembly.

What is the lifespan of RO membranes in PCB wastewater treatment?

In a well-maintained system with proper pre-treatment, RO membranes typically last 3 to 5 years. Using vibratory technology like VSEP® extends that lifespan by preventing irreversible fouling from the organic complexes common in PCB manufacturing. Replace membranes on measured flux decline, not a fixed calendar alone.
