Chip fab CMP wastewater treatment requires specialized hybrid systems to handle high variability (TSS up to 500 mg/L, COD up to 1,200 mg/L) and contaminants like TMAH (10–100 mg/L) and fluoride (50–300 mg/L). A typical 5 MGD fab system combines dissolved air flotation (DAF) for 95%+ solids removal, membrane bioreactors (MBR) with 0.1 μm filtration for biological treatment, and reverse osmosis (RO) for 90% water recovery. CHIPS Act-funded projects must meet EPA NPDES permit limits, with CAPEX ranging from $12M–$45M depending on system complexity and water reuse targets.

Why CMP Wastewater Is the Toughest Challenge in Chip Fabs

CMP (Chemical Mechanical Planarization) wastewater presents unique and significant challenges for treatment due to its complex chemical composition and physical properties that actively resist conventional separation methods. Unlike typical municipal wastewater, CMP effluent is characterized by near-zero nutrient content, frequently leading to biological treatment process starvation with Biochemical Oxygen Demand (BOD) often below 50 mg/L (per Top 1 research). This deficiency severely limits the effectiveness of conventional biological treatment systems without external nutrient dosing. CMP slurries contain engineered nanoparticles, typically 50–300 nm in size, designed to resist aggregation, making them exceptionally difficult to remove via gravity sedimentation or conventional media filtration (Top 3 research). These stable colloidal suspensions rapidly foul membranes and require aggressive destabilization strategies. daily fluctuations in contaminant concentrations, such as TMAH (tetramethylammonium hydroxide) from 10–100 mg/L and fluoride from 50–300 mg/L (per Top 1 research), demand highly adaptive chemical dosing and robust process controls to maintain treatment efficacy. Heavy metals like copper, nickel, and arsenic, alongside significant silica concentrations (50–200 mg/L, Top 1 research), necessitate multi-stage removal to comply with stringent EPA NPDES discharge limits, which vary by state and specific permit requirements.

CMP Wastewater Characteristic	Typical Range/Value	Treatment Challenge
TSS	100–500 mg/L	High solids load, fine particles
COD	200–1200 mg/L	Variable organic load, recalcitrant compounds
BOD	<50 mg/L	Low nutrient content, hinders biological treatment
TMAH	10–100 mg/L	Toxicity, requires advanced oxidation/biodegradation
Fluoride	50–300 mg/L	High concentration, requires precipitation/membrane
Nanoparticles (silica, alumina, ceria)	50–300 nm	Resist aggregation, foul membranes, require destabilization
Silica	50–200 mg/L	Membrane scaling, reduces RO recovery
Heavy Metals (Cu, Ni, As)	Trace to 5 mg/L	Strict discharge limits, requires targeted removal

Contaminant Profile: What’s in CMP Wastewater and Why It Matters

Understanding the specific contaminants in CMP wastewater is fundamental to designing an effective and compliant treatment system. Each component presents unique challenges and dictates specific treatment technologies. * TMAH (tetramethylammonium hydroxide): A strong base used in photoresist stripping and developing, TMAH is toxic to aquatic life at concentrations exceeding 10 mg/L (EPA guidelines for specific species). Effective treatment requires either biological degradation in specialized bioreactors adapted for low BOD/high TMAH loads or advanced oxidation processes (AOPs) like UV/H2O2 or ozonation, which break down the recalcitrant organic compound into less harmful byproducts. * Fluoride: Originating from etching processes, fluoride concentrations in CMP wastewater can reach 50–300 mg/L (Top 1 research), far exceeding the EPA discharge limit of 4 mg/L. Primary removal involves chemical precipitation using calcium chloride or lime to form insoluble calcium fluoride. For higher removal efficiencies or stricter limits, membrane filtration such as reverse osmosis (RO) or nanofiltration (NF) is often employed, as detailed in effective fluoride removal strategies for chip fabs. * Nanoparticles (silica, alumina, ceria): These colloidal particles, typically 50–300 nm in diameter, are designed to resist coagulation and settling (Top 3 research). They are a major cause of membrane fouling. Their removal necessitates aggressive destabilization using high-dose coagulants (e.g., polyaluminum chloride, ferric chloride) or advanced techniques like electrocoagulation, followed by efficient solids separation like dissolved air flotation (DAF). * Heavy metals (copper, nickel, arsenic): These metals originate from plating, etching, and cleaning processes. EPA discharge limits vary significantly by state and specific industrial permits; for example, California, Texas, and Arizona have strict limits often in the low parts per billion (ppb) range for sensitive metals. Removal typically involves pH adjustment for precipitation as hydroxides or sulfides, followed by clarification and/or ion exchange. * Silica: Derived from wafer polishing, silica concentrations of 50–200 mg/L (Top 1 research) are common. Soluble silica can polymerize and precipitate as colloidal silica, leading to severe scaling on RO membranes, significantly reducing water recovery rates and increasing cleaning frequency. Effective management includes pH control, specialized antiscalant dosing, and often pre-treatment with ultrafiltration (UF) or nanofiltration (NF) to remove colloidal silica precursors.

Contaminant	Source in CMP	Impact on Environment/Treatment	Primary Treatment Strategy
TMAH	Photoresist stripping, developers	Aquatic toxicity, challenges biological degradation	Biological degradation, Advanced Oxidation (UV/H2O2)
Fluoride	Etching processes	EPA discharge limits (4 mg/L), scale formation	Chemical precipitation (CaF2), RO/NF
Nanoparticles	CMP slurries (silica, alumina, ceria)	Membrane fouling, resist settling/filtration	Coagulation/Flocculation, Electrocoagulation, DAF
Heavy Metals	Plating, etching, cleaning	Strict discharge limits (ppb), toxicity	Precipitation, Ion Exchange, Membrane Filtration
Silica	Wafer polishing slurries	RO membrane scaling, reduced recovery	pH control, Antiscalants, UF/NF pre-treatment

Hybrid Process Design: How to Combine DAF, MBR, and RO for CMP Wastewater

A robust CMP wastewater treatment system typically integrates multiple technologies in a hybrid process to effectively manage the diverse contaminant profile and achieve high water recovery. This multi-stage approach ensures compliance and facilitates water reuse. * Stage 1: Dissolved Air Flotation (DAF) for Solids Removal. DAF is the initial and critical step for removing suspended solids, especially the finely dispersed nanoparticles and colloidal silica that characterize CMP wastewater. Zhongsheng's ZSQ series DAF systems for high-efficiency CMP solids removal are designed to handle high TSS loads. Typical loading rates for CMP applications range from 5–8 gpm/ft², achieving 95%+ TSS removal efficiency (Zhongsheng ZSQ series specs). Microbubble technology, generated by dissolving air under pressure and then releasing it at atmospheric pressure, effectively adheres to and floats even sub-micron particles, which are then skimmed off as sludge. This pre-treatment step significantly reduces the load on downstream biological and membrane processes, preventing premature fouling. * Stage 2: Membrane Bioreactor (MBR) for Biological Treatment. Following DAF, the wastewater enters an integrated MBR systems for CMP wastewater biological treatment. The MBR combines biological degradation with membrane filtration, offering superior effluent quality compared to conventional activated sludge. Zhongsheng's MBR series typically employs membranes with a pore size of 0.1 μm, effectively retaining all biomass and producing a virtually solids-free effluent. The high Mixed Liquor Suspended Solids (MLSS) concentration, typically 8,000–12,000 mg/L, enhances biological degradation of organic compounds like COD (90–95% removal) and can be adapted for TMAH degradation. Continuous membrane scouring and optimized cleaning-in-place (CIP) protocols are crucial for preventing fouling and maintaining flux. * Stage 3: Reverse Osmosis (RO) for Water Recovery. The MBR effluent, now clarified and largely free of organics, is directed to industrial RO systems for CMP wastewater recycling. RO is essential for removing dissolved salts, residual heavy metals, fluoride, and other trace contaminants, enabling high-purity water reuse. For CMP wastewater, typical RO recovery rates are 85–90%, which is slightly lower than municipal wastewater due to the higher concentration of scaling agents like silica and calcium. Effective antiscalant dosing, often employing proprietary silica-specific formulations, and scheduled membrane cleaning (CIP) are critical to mitigate silica scaling and prolong membrane lifespan. * Optional Stage 4: Zero Liquid Discharge (ZLD) for High-Reuse Fabs. For fabs aiming for 95%+ water recovery or operating in water-stressed regions, ZLD systems are implemented post-RO. This often involves advanced technologies like hybrid FO-NF systems (Forward Osmosis followed by Nanofiltration) for further concentrating the RO brine, followed by evaporation/crystallization for solid waste disposal. While ZLD significantly increases CAPEX and OPEX, it eliminates liquid discharge and maximizes water reuse, aligning with stringent environmental goals and CHIPS Act funding requirements for sustainability (Top 5 research indicates ZLD adds significant cost but provides maximum recovery). For more detailed information on hybrid ZLD systems for semiconductor wastewater, refer to our related article.

Process Flow Diagram (Conceptual):

CMP Wastewater → Equalization Tank → Coagulation/Flocculation → DAF (95%+ TSS removal) → MBR (90-95% COD removal, biomass retention) → UF/MF (pre-RO) → RO (85-90% water recovery, dissolved solids removal) → Treated Water for Reuse / Discharge → (Optional) Brine Treatment (e.g., FO-NF, Evaporation/Crystallization for ZLD)

Treatment Stage	Key Function	Engineering Specs (Typical)	Contaminant Removal
DAF (Zhongsheng ZSQ series)	Primary solids, oil/grease, nanoparticle removal	Loading Rate: 5–8 gpm/ft²; Air/Solids Ratio: 0.02–0.05	TSS: >95%; Oil & Grease: >90%
MBR (Zhongsheng MBR series)	Biological COD/BOD/TMAH degradation, fine solids filtration	Pore Size: 0.1 μm; MLSS: 8,000–12,000 mg/L; SRT: 20–30 days	COD: 90–95%; BOD: >98%; TSS: 100%
RO (Zhongsheng RO systems)	Dissolved salts, heavy metals, fluoride, high-purity water recovery	Recovery Rate: 85–90% (for CMP); Pressure: 150–250 psi	TDS: >98%; Fluoride: >99%; Heavy Metals: >99%
ZLD (Optional)	Maximize water recovery, eliminate liquid discharge	Recovery Rate: 95%+ overall; Technologies: FO-NF, Evaporation/Crystallization	All contaminants concentrated for solid disposal

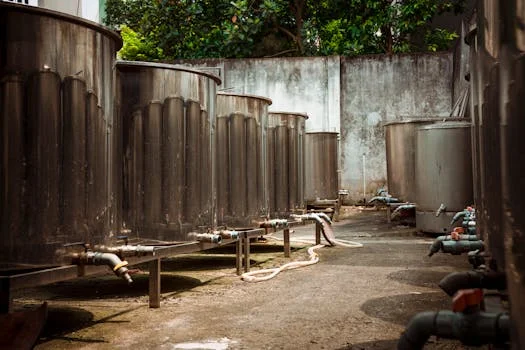

Equipment Selection: Matching Technology to Your Fab’s CMP Wastewater Profile

Selecting the appropriate CMP wastewater treatment equipment requires a tailored approach, considering factors such as fab size, daily wastewater volume, specific contaminant loads, and water reuse objectives. Zhongsheng Environmental offers scalable solutions designed to meet diverse requirements. * Small Fabs (<1 MGD): For smaller semiconductor fabrication plants with wastewater flows typically under 1 million gallons per day, modular DAF + MBR systems, such as Zhongsheng's WSZ series, offer a cost-effective and compact solution. These integrated units minimize footprint and installation time while providing robust treatment. Expected CAPEX for such systems ranges from $3M–$8M, with OPEX typically $0.50–$1.00/m³ due to lower chemical and energy demands compared to larger, more complex systems. * Medium Fabs (1–5 MGD): Fabs in this range often require a more comprehensive DAF + MBR + RO configuration to achieve high-efficiency contaminant removal and target 90% water recovery. This combination provides the necessary robustness for varying CMP loads and enables significant water reuse. CAPEX for these systems typically falls between $12M–$25M, with OPEX ranging from $0.80–$1.50/m³ (Top 1 cost data), influenced by chemical consumption, energy costs for membrane operation, and labor. * Large Fabs (>5 MGD): High-volume fabs demand a full hybrid DAF + MBR + RO + ZLD system to achieve 95%+ water recovery and minimize or eliminate liquid discharge. These advanced configurations often incorporate specialized brine treatment technologies like hybrid FO-NF (Forward Osmosis followed by Nanofiltration) to manage the concentrated RO reject stream more efficiently than traditional evaporation. CAPEX for these complex systems can range from $30M–$45M, with OPEX between $1.20–$2.00/m³, reflecting the increased energy, chemical, and maintenance requirements of ZLD. For comprehensive insights into water reuse strategies for semiconductor fabs, explore our dedicated article. * Chemical Dosing: Precise chemical dosing is paramount for effective nanoparticle destabilization and silica control. Coagulants like polyaluminum chloride (PAC) or ferric chloride are selected based on wastewater pH, turbidity, and specific nanoparticle composition. Antiscalants are critical for RO systems, with formulations specifically designed to inhibit silica and calcium carbonate scaling. Zhongsheng provides integrated dosing systems that can be optimized for specific CMP wastewater characteristics.

Fab Size (Wastewater Flow)	Recommended Equipment Combination	Typical CAPEX Range	Typical OPEX Range (per m³)	Target Water Recovery Rate
Small (<1 MGD)	Modular DAF + MBR (e.g., Zhongsheng WSZ series)	$3M–$8M	$0.50–$1.00	50–70% (Discharge compliant)
Medium (1–5 MGD)	DAF + MBR + RO	$12M–$25M	$0.80–$1.50	85–90%
Large (>5 MGD)	DAF + MBR + RO + ZLD (e.g., FO-NF for brine)	$30M–$45M	$1.20–$2.00	95%+

For detailed product specifications, explore our ZSQ series DAF systems for high-efficiency CMP solids removal, integrated MBR systems for CMP wastewater biological treatment, and industrial RO systems for CMP wastewater recycling.

Cost Breakdown: CAPEX, OPEX, and ROI for CMP Wastewater Treatment Systems

Understanding the financial implications of a CMP wastewater treatment system is crucial for project planning and securing CHIPS Act funding. Both Capital Expenditure (CAPEX) and Operational Expenditure (OPEX) contribute to the total cost of ownership, while Return on Investment (ROI) justifies the significant investment. * CAPEX Breakdown: The total CAPEX for a comprehensive CMP wastewater treatment system typically ranges from $12M–$45M, depending on flow rate, complexity, and desired water reuse levels (Top 1 data). Individual component costs are substantial: a DAF system might cost $500K–$2M, an MBR system $2M–$8M, and an RO system $3M–$10M. Implementing a full Zero Liquid Discharge (ZLD) solution, including evaporators or advanced brine concentrators, can add another $5M–$15M. These figures include equipment, installation, civil works, and commissioning. * OPEX Breakdown: Operational costs are ongoing and significant. Energy consumption, primarily for pumps, blowers, and membrane operations, accounts for $0.20–$0.50/m³ of treated water. Chemical costs, including coagulants, flocculants, antiscalants, and cleaning agents, typically range from $0.10–$0.30/m³. Membrane replacement, a periodic but substantial cost, adds $0.15–$0.40/m³ over the membrane's lifespan. Labor for operation, monitoring, and maintenance contributes $0.10–$0.20/m³. The total OPEX for a robust CMP system generally falls between $0.55–$1.40/m³. * ROI Drivers: The investment in advanced CMP wastewater treatment yields significant returns. Water reuse savings are a primary driver, with reclaimed water often valued at $1.50–$3.00/m³ compared to fresh municipal or well water. CHIPS Act incentives, including grants and tax credits for sustainable manufacturing and water conservation, can substantially offset initial CAPEX. avoiding costly EPA NPDES permit violations, which can incur fines of $50K–$200K per year, provides a critical financial incentive. * Case Study (Hypothetical): Consider a 3 MGD fab that implements a DAF + MBR + RO system achieving 90% water recovery. With a water purchase cost of $2.00/m³, the fab reuses 2.7 MGD (approximately 10,220 m³/day). This translates to annual water cost savings of approximately $7.46 million (10,220 m³/day * $2.00/m³ * 365 days * 0.90 recovery). Even accounting for OPEX, the net savings are substantial, demonstrating a strong ROI. * ROI Calculator: A simple formula to estimate payback period is: (CAPEX - Incentives) / (Annual Water Savings - Annual OPEX). This provides a quick estimate for justifying the investment.

Cost Category	Typical Range (CAPEX)	Typical Range (OPEX per m³)	Key Drivers
Total System (CAPEX)	$12M–$45M	N/A	Flow rate, complexity, ZLD requirements
DAF System (CAPEX)	$500K–$2M	N/A	Size, materials, automation
MBR System (CAPEX)	$2M–$8M	N/A	Flow rate, membrane type, tank volume
RO System (CAPEX)	$3M–$10M	N/A	Capacity, stages, pre-treatment
ZLD System (CAPEX)	$5M–$15M	N/A	Technology (FO-NF, Evaporation), recovery target
Energy (OPEX)	N/A	$0.20–$0.50	Pumps, blowers, membrane operation
Chemicals (OPEX)	N/A	$0.10–$0.30	Coagulants, antiscalants, cleaning agents
Membrane Replacement (OPEX)	N/A	$0.15–$0.40	Membrane lifespan, type, fouling rate
Labor (OPEX)	N/A	$0.10–$0.20	Monitoring, maintenance, operator hours

Emerging Trends: AI, Electrocoagulation, and Next-Gen Membranes for CMP Wastewater

The field of CMP wastewater treatment is continually evolving, with cutting-edge technologies emerging to enhance efficiency, reduce costs, and improve sustainability. Integrating these innovations can future-proof fab operations and solidify environmental leadership. * AI-driven chemical dosing: Machine learning models are now optimizing coagulant and antiscalant dosing in real time, leveraging sensor data (pH, turbidity, ORP) to adapt to the highly variable nature of CMP wastewater. This precision can reduce chemical consumption by 20–30% (per industry vendor reports), minimizing operational costs and improving effluent consistency. AI algorithms predict optimal dosages, preventing under-dosing (leading to poor removal) or over-dosing (leading to chemical waste and potential secondary pollution). * Electrocoagulation (EC): This electrochemical process uses sacrificial anodes (e.g., aluminum, iron) to release charged metal ions into the wastewater, which then destabilize nanoparticles and precipitate heavy metals and fluoride. EC can reduce coagulant use by up to 50% compared to traditional chemical coagulation, particularly effective for colloidal silica and ceria removal (pilot studies show promising results). It generates less sludge and can be more compact than conventional chemical precipitation, offering a cleaner, more efficient pre-treatment. * Next-gen membranes: Advances in membrane materials are leading to ceramic membranes with ultrafiltration pore sizes (e.g., 0.01 μm) that offer higher recovery rates (95%+) and significantly longer lifespans (up to 10-15 years) than polymeric membranes. These robust membranes are more resistant to harsh chemicals, temperature fluctuations, and fouling, making them ideal for challenging CMP streams (research from leading membrane manufacturers). They can serve as highly effective pre-treatment for RO, reducing overall system stress. * Hybrid FO-NF systems: Forward Osmosis (FO) is gaining traction as a pre-treatment step for high-salinity brines, including RO reject from CMP wastewater. FO uses an osmotic pressure gradient to draw water across a semi-permeable membrane, requiring less energy than RO and being less prone to fouling. The diluted draw solution is then treated by nanofiltration (NF) to recover the water and regenerate the draw solution. This hybrid approach offers a more cost-effective and energy-efficient pathway to ZLD compared to traditional RO followed by thermal evaporation, especially for high-salinity semiconductor wastewater.

Frequently Asked Questions

What are the primary challenges in treating CMP wastewater?

The primary challenges include high variability in contaminant concentrations, the presence of stable nanoparticles (50–300 nm) that resist conventional separation, low nutrient content that starves biological processes, and high concentrations of scaling agents like silica and toxic compounds like TMAH and fluoride.

How does CHIPS Act funding impact CMP wastewater treatment projects?

CHIPS Act funding incentivizes domestic semiconductor manufacturing and often includes provisions for sustainable practices, including advanced wastewater treatment and water reuse. Projects demonstrating high water recovery, compliance with stringent environmental standards, and innovative technologies are well-positioned for grants and tax credits.

What are typical water recovery rates for CMP wastewater treatment?

With a DAF + MBR + RO system, typical water recovery rates for CMP wastewater range from 85–90%. For Zero Liquid Discharge (ZLD) systems incorporating advanced brine treatment, overall recovery can exceed 95%.

Can CMP wastewater be biologically treated?

Yes, CMP wastewater can be biologically treated, especially for COD and TMAH degradation, but it typically requires specialized Membrane Bioreactors (MBR) and often nutrient supplementation due to the low BOD content. The MBR's high biomass concentration and efficient solids retention are crucial for success.

What is the role of DAF in CMP wastewater treatment?

Dissolved Air Flotation (DAF) is a critical primary treatment step. It efficiently removes suspended solids, colloidal particles, and nanoparticles (like silica, alumina, ceria) that are too fine to settle by gravity. This significantly reduces the load on downstream biological and membrane processes, preventing fouling.

How do you prevent silica scaling in RO membranes treating CMP wastewater?

Preventing silica scaling in RO membranes involves a multi-pronged approach: optimizing pH, selecting specialized antiscalants designed for silica inhibition, and often implementing advanced pre-treatment steps like ultrafiltration (UF) or nanofiltration (NF) to remove colloidal silica precursors before the RO stage.

What are the cost implications (CAPEX and OPEX) for a 5 MGD CMP wastewater treatment plant?

For a 5 MGD CMP wastewater treatment plant incorporating DAF, MBR, and RO, the CAPEX typically ranges from $12M–$25M. Operational expenses (OPEX) can be between $0.80–$1.50 per cubic meter of treated water, covering energy, chemicals, membrane replacement, and labor.
