Fine screens are critical for industrial wastewater pretreatment, removing solids as small as 0.25 mm to protect downstream equipment and improve treatment efficiency. For example, ultra-fine screens like HUBER’s ROTAMAT® achieve 95% TSS removal at flow rates up to 1,200 m³/h, while dual-flow systems (e.g., SPIRAC’s BANDGUARD) handle high solids loads with minimal headloss. This guide compares 2025’s top systems by mesh size, energy use, and cost per m³ treated—helping you select the best fine screen wastewater for industrial use, matching your facility’s influent characteristics and budget.
Why Fine Screens Are Essential for Industrial Wastewater Pretreatment
Industrial wastewater contains high levels of suspended solids, rags, plastics, and fibrous debris that coarse screens (6–150 mm) cannot capture, leading to clogged pumps, reduced biological treatment efficiency, and increased maintenance costs, per EPA 2023 guidelines. These unremoved solids directly impact operational stability and compliance. Fine screen wastewater equipment is specifically designed to address these challenges, offering openings smaller than 6 mm.
Fine screens (openings < 6 mm) are mandated for pretreatment in industries like food processing, textile, and pulp/paper to meet stringent effluent standards, such as those outlined in the EU Urban Waste Water Directive 91/271/EEC and China GB 8978-1996. Without effective fine screening, industrial facilities risk regulatory fines and operational disruptions. For instance, a textile plant in Bangladesh reduced pump failures by 40% and chemical costs by 25% after installing a 1 mm rotary drum screen, according to data from Top 3 HUBER content. This demonstrates the tangible benefits of enhanced solids removal.
Poor screening practices result in significant downstream impacts. Membrane fouling is a common issue in Membrane Bioreactor (MBR) systems, drastically reducing flux rates and increasing cleaning frequency and chemical consumption. Similarly, Dissolved Air Flotation (DAF) systems lose efficiency when influent contains excessive fine solids, requiring higher coagulant and flocculant dosages, impacting the performance of Zhongsheng’s ZSQ Series DAF system. increased sludge disposal costs arise from a higher volume of unprocessed solids accumulating in downstream treatment units, impacting overall wastewater treatment CAPEX/OPEX.
Types of Fine Screens for Industrial Wastewater: How They Work and Where They Fit
Understanding the operational mechanisms and ideal applications for various fine screen wastewater systems is crucial for optimal selection. Each type offers distinct advantages based on influent characteristics and site-specific needs, embodying different engineering principles.
- Rotary drum screens: These systems feature continuous self-cleaning mechanisms, typically involving brushes and spray nozzles, to prevent screen blinding. They are ideal for high-flow applications, managing volumes from 200 to 5,000 m³/h with minimal headloss, typically between 0.1 and 0.3 m. Common mesh sizes range from 0.25 to 3 mm. Energy consumption for rotary drum screens is generally low, around 0.1–0.3 kWh/m³, as observed in HUBER ROTAMAT® specs. Zhongsheng’s GX Series Rotary Mechanical Bar Screen offers robust rotary screening solutions for industrial pretreatment.
- Static wedge wire screens: Characterized by their lack of moving parts, these screens offer low maintenance requirements. They are best suited for low-solids wastewater streams, such as cooling tower blowdown, where grease and fibrous materials are minimal. Openings typically range from 0.25 to 2 mm. The primary risk with static screens is blinding, especially with grease or fibers; mitigation strategies include proper pre-screening, heated wash water, or periodic manual cleaning.
- Traveling band screens: Systems like SPIRAC’s BANDGUARD utilize a dual-flow design, making them highly effective for industrial pretreatment systems with high solids loads, common in meat processing and slaughterhouses. They handle throughputs from 500 to 3,000 m³/h with mesh sizes between 1 and 6 mm. Energy consumption for traveling band screens typically ranges from 0.2 to 0.5 kWh/m³.
- Step screens: These screens feature a modular, compact design, making them suitable for space-constrained sites. Mesh sizes vary from 0.5 to 6 mm. While frequently used in municipal upgrades, step screens are less common in industrial settings due to limited scalability for very high flow rates, though exceptions exist in niche applications like pharmaceuticals where specific particle capture is paramount.
- Vibrating screens: Employing high-frequency vibration, these screens excel at separating sticky solids, prevalent in industries like dairy and breweries. Mesh sizes are typically finer, from 0.1 to 1 mm. Energy use is higher, ranging from 0.4 to 0.8 kWh/m³, due to the vibration mechanism. A key risk is noise and vibration transfer to surrounding structures, necessitating specialized isolation solutions during installation.
The following table provides a concise comparison of these industrial wastewater screening equipment types:
| Screen Type | Mechanism | Mesh Size Range (mm) | Typical Flow Rate (m³/h) | Energy Use (kWh/m³) | Typical Headloss (m) | Best Use Case |
|---|---|---|---|---|---|---|
| Rotary Drum | Rotating drum, self-cleaning | 0.25–3 | 200–5,000 | 0.1–0.3 | 0.1–0.3 | High flow, general industrial |
| Static Wedge Wire | Fixed wedge wire, no moving parts | 0.25–2 | 10–200 | 0 | 0.5–1.5 | Low solids, cooling tower blowdown |
| Traveling Band | Continuous band, dual-flow | 1–6 | 500–3,000 | 0.2–0.5 | 0.2–0.5 | High solids load, meat processing |
| Step Screen | Interleaving steps, compact | 0.5–6 | 50–1,000 | 0.1–0.3 | 0.2–0.4 | Space-constrained sites, municipal |
| Vibrating Screen | High-frequency vibration | 0.1–1 | 5–100 | 0.4–0.8 | 0.1–0.2 | Sticky solids, dairy, breweries |

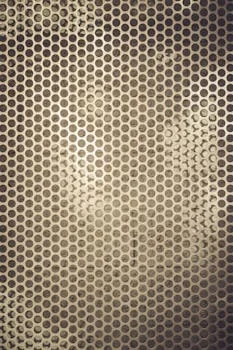

Key Performance Metrics: How to Evaluate Fine Screen Efficiency
Evaluating fine screen efficiency necessitates a focus on quantifiable metrics that directly impact operational costs and compliance. These benchmarks provide a framework for comparing industrial pretreatment systems.
TSS removal efficiency is a primary indicator of performance; fine screens typically achieve 85–97% removal for particles larger than 0.5 mm, per EPA 2024 benchmarks. Ultra-fine screens, with openings as small as 0.25 mm, can exceed 95% TSS removal, though this often requires higher energy input and more frequent cleaning, as evidenced by HUBER data for their ultra-fine screening solutions. This high level of TSS removal efficiency is crucial for protecting sensitive downstream processes.
Headloss is a critical parameter for pump sizing and energy consumption. Rotary drum screens typically exhibit low headloss, ranging from 0.1 to 0.3 m, minimizing upstream water level elevation. Traveling band screens generally incur 0.2–0.5 m of headloss. Static screens, due to their fixed nature and potential for partial clogging, can have higher headloss, from 0.5 to 1.5 m, which directly translates to increased pump energy requirements and higher operational costs.
Solids capture rate quantifies the percentage of target solids removed from the wastewater stream. Industrial applications often require a capture rate exceeding 90% for particles larger than 1 mm to effectively prevent downstream fouling in heat exchangers, pipelines, and membrane systems. Test methods like ASTM D5907 are commonly used to accurately measure this metric, ensuring the wastewater screening equipment meets specific operational demands.
Energy consumption varies significantly among fine screen types, ranging from 0.1 kWh/m³ for efficient drum screens to 0.8 kWh/m³ for vibrating screens. Calculating annual energy cost is essential for budgeting and evaluating total cost of ownership: Annual Energy Cost = (Flow rate in m³/h × 24 hours/day × 365 days/year × kWh/m³ × $/kWh). This formula provides a clear picture of the electrical OPEX.
Maintenance frequency directly impacts labor costs and downtime. Rotary screens, with their automated cleaning systems, typically require weekly brush and spray checks. In contrast, static screens in high-grease applications, such as dairy processing, may necessitate daily manual cleaning to prevent severe blinding. Automation options, including PLC-controlled backwash systems and self-cleaning brushes, can significantly reduce manual intervention and improve maintenance efficiency.
Fine Screen vs. Coarse Screen: When to Use Each in Industrial Applications
The selection between fine screen and coarse screen wastewater equipment hinges on the specific pretreatment goals and the nature of the influent, preventing over-engineering or inadequate protection for industrial wastewater compliance.
Coarse screens, with openings ranging from 6 to 150 mm, are sufficient for primary treatment in wastewater streams with low suspended solids, such as stormwater runoff or cooling tower blowdown. Their primary function is to remove large debris like rags, plastics, and sticks, preventing damage to pumps and other large mechanical equipment. However, coarse screens are inadequate for protecting sensitive downstream processes like MBR or DAF systems, as they allow smaller, yet still problematic, particles to pass through.
Fine screens, featuring openings from 0.25 to 6 mm, are required for several critical industrial applications. First, industries with high TSS loads, such as pulp and paper, food processing, and textile manufacturing, necessitate fine screening to reduce organic and inorganic solids that can hinder subsequent biological or chemical treatment steps. Second, facilities employing membrane systems (e.g., MBR, UF, RO) rely on fine screens to prevent fouling, which drastically reduces membrane lifespan and efficiency. Third, fine screens are essential for meeting strict effluent limits, such as TSS concentrations below 30 mg/L, which are common in many industrial wastewater permits, aligning with Ontario’s 2025 industrial wastewater treatment requirements.
Hybrid systems, combining both coarse and fine screens, represent an optimized approach for many industrial sites. In this setup, coarse screens are installed first to remove the largest debris, significantly reducing the solids load on the downstream fine screens. This staged approach extends the operational life of fine screens, reduces maintenance frequency, and improves overall system reliability. For example, a meat processing plant in Germany reduced fine screen maintenance by 30% and improved overall operational uptime by implementing a coarse screen upstream of its fine screen system, according to a SPIRAC case study. This showcases the effectiveness of a multi-stage industrial pretreatment system.
The cost trade-off between fine and coarse screens is significant. While fine screens typically cost 2–5 times more in CAPEX than coarse screens, they can reduce downstream OPEX by 15–40%. This reduction stems from decreased pump maintenance (fewer clogs), lower chemical consumption in DAF or other clarification processes, and reduced sludge disposal volumes due to more effective initial solids removal. These long-term operational savings often justify the higher initial investment in fine screening technology, improving the overall wastewater treatment CAPEX/OPEX.
| Feature | Coarse Screens (6–150 mm) | Fine Screens (0.25–6 mm) |
|---|---|---|
| Primary Function | Removes large debris (rags, plastics, wood) | Removes small suspended solids (fibers, hair, grit) |
| Typical Openings | 6 mm to 150 mm | 0.25 mm to 6 mm |
| Applications | Primary protection for pumps, low-solids influent, stormwater | Pretreatment for MBR/DAF, high-TSS industries, strict effluent limits |
| Downstream Impact | Limited protection, still allows fouling particles | Protects membranes, reduces chemical use, improves treatment efficiency |
| Relative CAPEX | Low | Medium to High (2-5x coarse) |
| Relative OPEX Savings | Minimal | Significant (15-40% reduction in downstream costs) |

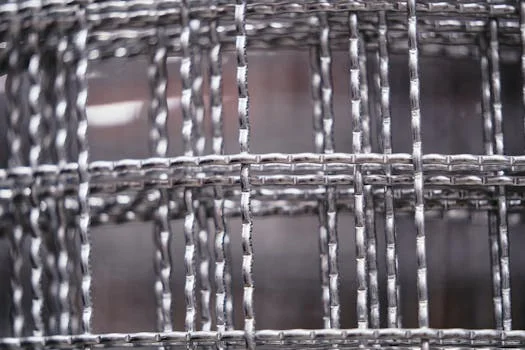

2025 Cost Analysis: Fine Screen Systems for Industrial Wastewater
A transparent cost analysis is essential for budgeting and evaluating the total cost of ownership (TCO) for industrial wastewater screening equipment. This section breaks down CAPEX and OPEX for various fine screen systems, providing a clear financial perspective for 2025.
Capital Expenditure (CAPEX) for fine screen systems varies significantly by type and capacity. For 2025, a rotary drum screen designed for 50–1,000 m³/h typically costs between $15,000 and $80,000. Traveling band screens, handling larger flows from 500–3,000 m³/h, range from $30,000 to $150,000. Static wedge wire screens, suitable for smaller flows of 10–200 m³/h, are the most economical, costing $5,000–$30,000. These figures represent equipment-only costs.
Installation costs typically add 20–50% to the equipment price. Factors influencing installation costs include civil works (e.g., concrete pads, channels), electrical connections, and the complexity of automation and control system integration. Retrofitting screens into existing infrastructure can incur higher costs than new construction due to site-specific challenges.
Operational Expenditure (OPEX) for fine screens is driven by energy, maintenance, and labor. Energy costs typically range from $0.02–$0.10/m³ treated, depending on screen type and local electricity rates. Maintenance, including parts and routine servicing, generally falls between $0.01–$0.05/m³. Labor for monitoring, cleaning, and troubleshooting can range from $0.03–$0.15/m³. Annual OPEX can be calculated using the formula: Annual OPEX = (Flow rate in m³/h × 365 days/year × OPEX per m³).
Return on Investment (ROI) is a critical metric for justifying initial CAPEX. For example, a textile plant spending $50,000/year on pump repairs due to fibrous debris reduced these costs to $20,000/year after installing a $70,000 fine screen. The annual savings of $30,000 ($50,000 - $20,000) yields a payback period of approximately 2.3 years ($70,000 / $30,000), making it a sound investment. Readers can calculate their own ROI by comparing current annual maintenance/downtime costs to projected savings after screen installation, divided by the screen's CAPEX.
Hidden costs can impact long-term OPEX. Screen blinding, especially in high-grease applications like dairy processing, may necessitate heated wash water systems, adding an estimated $0.05–$0.20/m³ to operational costs. Mitigation strategies include specialized screen blinding solutions like hot water systems, chemical additives (e.g., detergents), or enhanced mechanical cleaning mechanisms to reduce this expense.
| Screen Type | CAPEX (USD, 2025 - Equipment Only) | Typical Flow Range (m³/h) | Installation Costs (% of CAPEX) | OPEX Range ($/m³ Treated) | Key OPEX Drivers |
|---|---|---|---|---|---|
| Rotary Drum Screen | $15,000 – $80,000 | 50 – 1,000 | 20% – 40% | $0.06 – $0.20 | Energy, routine maintenance, brush/spray parts |
| Traveling Band Screen | $30,000 – $150,000 | 500 – 3,000 | 25% – 50% | $0.08 – $0.25 | Energy, chain/band maintenance, labor |
| Static Wedge Wire Screen | $5,000 – $30,000 | 10 – 200 | 20% – 30% | $0.04 – $0.18 | Manual cleaning labor, occasional replacement |
| Vibrating Screen | $10,000 – $50,000 | 5 – 100 | 30% – 50% | $0.10 – $0.30 | High energy, screen mesh replacement, vibration dampeners |
How to Select the Best Fine Screen for Your Industrial Facility: A Step-by-Step Decision Framework
Selecting the best fine screen wastewater for industrial use requires a structured approach that aligns technical specifications with operational goals and budget constraints. This decision framework guides engineers and facility managers through the process.
- Step 1: Characterize influent. Begin by thoroughly analyzing your wastewater influent. Measure key parameters such as Total Suspended Solids (TSS) concentration, particle size distribution, grease and oil content, and peak/average flow rates. Methods include jar tests for settling characteristics and laser diffraction for precise particle sizing. For instance, textile wastewater may present 500 mg/L TSS with 60% of fibers exceeding 1 mm in length, dictating specific screen requirements.
- Step 2: Define treatment goals. Clearly articulate what the fine screen needs to achieve. Common goals include (1) protecting sensitive downstream equipment (e.g., pumps, MBR membranes, heat exchangers), (2) meeting specific effluent limits for TSS (e.g., <30 mg/L), and (3) reducing chemical use (e.g., coagulants in DAF systems).
- Step 3: Match screen type to influent. Use a decision tree logic based on your influent characteristics. For high solids loads and fibrous materials, a rotary drum screen or traveling band screen is typically most effective. For low-solids wastewater with minimal grease, a static wedge wire screen may suffice. If dealing with sticky solids (e.g., dairy, breweries), a vibrating screen is often the preferred choice.
- Step 4: Size the screen. Proper sizing is critical to prevent overloading and ensure efficient operation. A general rule of thumb for screen area calculation is:
Screen Area (m²) = (Flow rate in m³/min × 1.2 safety factor) / (Screen velocity in m/min × 0.8 open area factor). Screen velocities for fine screens typically range from 0.5 to 1.5 m/min, as per HUBER design guidelines, with specific values depending on the screen type and mesh size. - Step 5: Evaluate automation. Determine the level of automation required, balancing labor costs against 24/7 operational needs. Options range from manual cleaning systems to fully automated, PLC-controlled screens with remote monitoring capabilities. For example, a remote mining site with limited on-site personnel would benefit significantly from fully automated screens with robust remote diagnostic features.
- Step 6: Compare total cost of ownership (TCO). Beyond initial CAPEX, evaluate the long-term financial implications. Calculate TCO using the formula:
TCO = CAPEX + (Annual OPEX × Project Lifespan in years). For a typical 10-year project lifespan, a sample calculation for a 500 m³/h system would integrate equipment cost, installation, and projected annual energy, maintenance, and labor costs. This comprehensive financial assessment, including sludge dewatering options for industrial wastewater, aids in selecting the most economically viable solution.
For robust rotary screening solutions, consider Zhongsheng’s GX Series Rotary Mechanical Bar Screen, designed for high performance in demanding industrial environments.
Frequently Asked Questions
This section addresses common queries regarding fine screen wastewater for industrial use, providing concise, data-backed answers.
What’s the difference between a fine screen and a bar screen?
Fine screens have openings smaller than 6 mm, effectively removing small suspended solids like hair, fibers, and grit, crucial for protecting downstream processes like DAF or MBR systems. Bar screens, or coarse screens, have larger openings (6–150 mm) and are primarily designed to capture large debris such as rags and plastics, preventing damage to pumps and other large mechanical equipment.
How do fine screens improve industrial wastewater compliance?
Fine screens significantly improve industrial wastewater compliance by reducing TSS concentrations in the effluent. By removing fine particles that coarser screens miss, they help facilities meet stringent regulatory limits (e.g., <30 mg/L TSS) and prevent permit violations, reducing the risk of fines and ensuring adherence to environmental standards.
What is screen blinding and how is it prevented?
Screen blinding occurs when solids, especially grease, oil, or fibrous materials, accumulate and block the screen openings, reducing flow capacity and efficiency. Prevention strategies include continuous self-cleaning mechanisms (brushes, spray nozzles), heated wash water systems for grease, chemical additives, and proper pre-screening to reduce the load of problematic solids.
What mesh size should I choose for my industrial application?
The optimal mesh size depends on influent particle size distribution and downstream protection needs. For protecting MBR membranes, 0.25–0.5 mm is typical. For general pump protection and DAF efficiency, 1–3 mm is often sufficient. A detailed influent characterization (Step 1 of the decision framework) is crucial for precise selection to ensure effective TSS removal efficiency.
How does energy consumption impact the choice of fine screen?
Energy consumption is a significant component of OPEX. Screens with lower energy use (e.g., some rotary drum screens at 0.1–0.3 kWh/m³) offer substantial long-term savings compared to higher-energy options like vibrating screens (0.4–0.8 kWh/m³). Calculating the annual energy cost (Flow rate × 24 × 365 × kWh/m³ × $/kWh) is vital for a comprehensive cost analysis and choosing the best fine screen wastewater for industrial use.
