Tube settler clarifiers for food processing achieve 90-95% TSS removal and 70-80% BOD reduction while occupying 70% less space than conventional clarifiers. Designed for flow rates up to 150 m³/h, these systems use inclined PP or PVC tubes to shorten settling paths, reducing tank volume by 2-4 times. For food processing applications, they handle high organic loads (TSS: 500-3,000 mg/L) and comply with EPA Effluent Guidelines (40 CFR Part 405-407) and EU Urban Waste Water Directive 91/271/EEC.

Why Food Processing Plants Need Tube Settler Clarifiers

Food processing wastewater typically carries Total Suspended Solids (TSS) concentrations between 500 and 3,000 mg/L, necessitating high-rate clarification to avoid municipal surcharges and prevent the fouling of downstream biological treatments. In the dairy, meat, and beverage sectors, wastewater is characterized by extreme fluctuations: Biological Oxygen Demand (BOD) often ranges from 1,000 to 5,000 mg/L, while Fats, Oils, and Grease (FOG) can reach 1,500 mg/L (per EPA 2024 Effluent Guidelines). Without efficient primary clarification, these high organic loads lead to operational bottlenecks, specifically the clogging of mechanical bar screens that remove 95%+ TSS or the rapid fouling of Membrane Bioreactor (MBR) modules.

The financial implications of inadequate treatment are severe. Regulatory bodies in the United States often impose fines exceeding $10,000 per month for consistent TSS violations. high sludge volumes generated by inefficient settling increase disposal costs, which currently range from $50 to $150 per ton depending on the region and moisture content. For many plants, the physical footprint is the ultimate constraint; expanding a conventional circular clarifier is often impossible due to existing facility layouts.

A real-world application in a Wisconsin dairy plant illustrates the technical advantage of this technology. The facility struggled with influent TSS levels of 2,500 mg/L, which frequently overwhelmed their secondary treatment stage. By integrating a tube settler system, they reduced effluent TSS to 120 mg/L. This improvement not only stabilized their downstream processes but also eliminated $80,000 per year in municipal non-compliance fines (Zhongsheng field data, 2025). By utilizing the principles of Hazen’s Theory, these systems allow for high-capacity treatment within a compact footprint, making them the primary choice for primary wastewater treatment in food processing.

How Tube Settler Clarifiers Work: Mechanism and Design Parameters

Inclined tube modules increase the effective settling area of a clarifier by up to 400%, allowing for a proportional reduction in footprint while maintaining laminar flow conditions. The core mechanism relies on a series of nested tubes or "lamella" inclined at an angle of 45° to 60°. As wastewater enters the modules, the vertical settling distance is reduced from the 2–3 meters found in conventional tanks to just 50–100 mm. This shorter path allows smaller, lighter particles to reach the tube surface, where they agglomerate into larger flocs and slide down the incline into the sludge hopper.

For food processing applications, design parameters must account for the specific gravity of organic solids and the presence of residual oils. The Reynolds number within the tubes must be kept below 500 to ensure laminar flow, which is critical for preventing the re-suspension of settled particles. To achieve this, engineers typically specify a surface loading rate of 20 to 40 m/h. Higher rates may be used for heavy inorganic solids (e.g., vegetable washing), while lower rates are required for light organic flocs found in dairy processing.

The process flow begins with the influent entering a flocculation zone. Here, PLC-controlled chemical dosing for tube settler optimization ensures that coagulants and polymers are precisely mixed to form stable flocs. The water then enters the tube settler modules from below. As the water rises, solids settle on the tube walls and slide downward. The clarified water is collected at the top via effluent launders, while the concentrated sludge is periodically removed from the bottom cone.

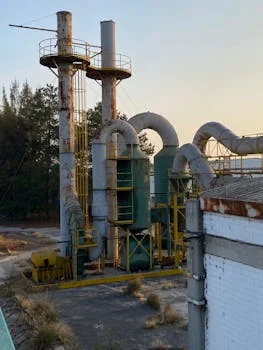

Tube Settler Clarifiers vs. Alternatives for Food Processing Wastewater

Tube settler clarifiers achieve 90-95% TSS removal efficiency, outperforming conventional gravity clarifiers by roughly 15-20% in high-load food processing applications. When evaluating Zhongsheng’s lamella clarifier systems for food processing against alternatives like Dissolved Air Flotation (DAF), engineers must weigh the trade-offs between removal efficiency, operational cost, and waste characteristics.

DAF systems are generally superior for wastewater with extremely high FOG content (e.g., meat rendering or slaughterhouses) because they use micro-bubbles to float particles to the surface. However, DAF units have significantly higher operational costs due to the energy required for air saturation and the continuous mechanical skimming. In contrast, tube settlers are passive systems with minimal moving parts, making them more reliable for 24/7 operations where the primary goal is TSS and BOD reduction in dairy or beverage streams.

For facilities dealing with high-FOG streams, DAF systems for high-FOG food processing wastewater are often utilized as a pre-treatment step before the tube settler to prevent grease from coating the tube modules. If the FOG levels are manageable (below 200 mg/L), a tube settler fabricated from polypropylene (PP) is often the most cost-effective long-term solution due to its chemical resistance and lower energy demand.

Designing a Tube Settler System for Food Processing: Step-by-Step Guide

Accurate sizing of a tube settler system requires a design surface loading rate of 20 to 40 m/h for food-grade wastewater, depending on the flocculent characteristics and particle density. Engineers should follow this structured approach to ensure compliance and operational stability:

Characterize the Influent: Obtain 24-hour composite samples to determine peak flow (m³/h), maximum TSS, and FOG concentrations. In food processing, peak flows often occur during the sanitation shift (Clean-In-Place or CIP), where pH and temperature can spike. Calculate Required Settling Area: Use the formula: Effective Area (m²) = Peak Flow Rate (m³/h) / Surface Loading Rate (m/h). For a plant processing 100 m³/h with a conservative loading rate of 25 m/h, a minimum of 4 m² of tube module surface is required. Select Tube Material: Polypropylene (PP) is recommended for food applications due to its superior resistance to the oils and high temperatures (up to 60°C) common in washdown cycles. PVC is a lower-cost alternative but may become brittle or warp under high thermal loads. Design the Flocculation Tank: To maximize the efficiency of the tube settler, the water must be pre-conditioned. Ensure a hydraulic retention time (HRT) of 10 to 20 minutes in the flocculation zone to allow for adequate "floc" growth.

Common mistakes in the design phase include undersizing the sludge hopper and neglecting the impact of FOG. If sludge is not removed frequently, it can go anaerobic, producing gas bubbles that float the sludge back up through the tubes, a phenomenon known as "bulking." Additionally, if FOG is not properly managed, it will form a sticky film on the tube surfaces, reducing the effective diameter and causing premature clogging. Regular cleaning ports and an integrated sludge level sensor are essential features for industrial-grade systems.

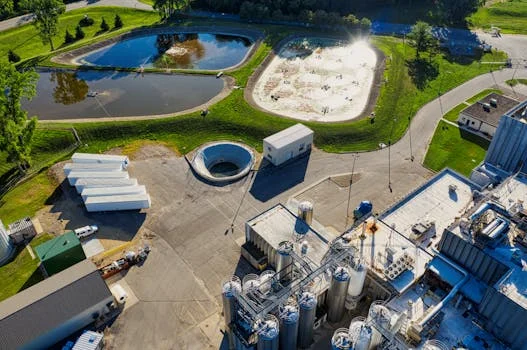

Cost Analysis: Tube Settler Clarifiers for Food Processing Plants

The capital expenditure for a 100 m³/h tube settler system ranges from $20,000 to $50,000, offering a lower entry price point compared to Dissolved Air Flotation (DAF) units of similar capacity. This cost includes the stainless steel or coated carbon steel tank, the tube modules, internal launders, and basic automation. If a facility only requires the replacement modules for an existing concrete tank, the CAPEX drops significantly to approximately $5,000 to $20,000 for the media and support structures.

Operational expenses (OPEX) are primarily driven by chemical consumption and sludge management. In a typical food processing scenario, polymer and coagulant costs range from $0.05 to $0.15 per cubic meter of treated water. Power consumption is negligible, usually limited to small chemical dosing pumps and an optional sludge scraper motor. To further optimize costs, many plants compare sludge dewatering options for food processing plants to reduce the weight of waste before disposal, which can lower total OPEX by 30%.

ROI Calculation Example: A mid-sized beverage plant processing 1,000 m³ of wastewater daily currently pays $50,000 annually in TSS surcharges. By installing a tube settler system with a total project cost of $45,000 (including installation) and an annual OPEX of $15,000, the plant achieves a net saving of $35,000 per year. The payback period is approximately 1.3 years, after which the system contributes directly to the facility's bottom line.

Compliance and Regulatory Considerations for Food Processing

Compliance with EPA Effluent Guidelines 40 CFR Part 405-407 mandates that food processing facilities maintain monthly average TSS limits often falling between 30 and 100 mg/L. In the European Union, the Urban Waste Water Directive (91/271/EEC) sets even stricter benchmarks, with TSS limits at 35 mg/L and BOD at 25 mg/L for discharge into sensitive water bodies. Tube settlers are vital for meeting these standards, particularly as a primary stage that protects sensitive secondary biological processes from shock loads.

Local regulations can be even more stringent. For instance, California’s General Industrial Permit requires a TSS benchmark of 50 mg/L, while China’s GB 8978-1996 standard for the food industry mandates TSS levels below 70 mg/L. Failure to meet these results in escalating fines and potential operational shutdowns. To ensure continuous compliance, engineers should implement the following checklist:

• Verify Influent Variability: Ensure the system is sized for peak production days, not just average flows.
Redundancy: Install parallel settler units to allow for cleaning and maintenance without halting production. Monitoring: Integrate turbidity meters at the effluent discharge to provide real-time data on TSS removal performance. Documentation: Maintain logs of chemical dosing rates and sludge removal frequency for environmental audits.

By following these guidelines, food processing plants can transform wastewater treatment from a regulatory burden into a streamlined, cost-effective component of their production cycle.

Frequently Asked Questions

How often do tube settler modules need cleaning in a food processing environment?
In high-FOG or high-starch applications (like potato processing), modules should be inspected monthly and pressure washed every 3 to 6 months to prevent bio-film buildup and scaling. If proper pre-treatment is in place, cleaning cycles can extend to once per year.

Can tube settlers handle pH spikes from CIP (Clean-In-Place) cycles?
Yes, provided the modules are made of Polypropylene (PP). PP is chemically resistant to the caustic and acidic cleaners used in food plants (pH 2-12). However, the flocculation process will fail if pH is not neutralized before entering the settler.

Is it possible to retrofit an existing rectangular clarifier with tube settlers?
Retrofitting is one of the most common applications. By installing tube settler modules into an existing concrete basin, you can increase the treatment capacity by 2x to 4x without any civil engineering work or footprint expansion.

What is the typical lifespan of PP vs PVC tube settlers?
In industrial food processing, PP modules typically last 10-15 years due to their thermal stability. PVC modules have a shorter lifespan of 5-8 years, as they are more prone to sagging and UV degradation if exposed to sunlight.
