What 'suitable' means for a packaged STP in the Aburrá Valley
A packaged sewage treatment plant is only "suitable" in the Aburrá Valley when it can be benchmarked against the regional plants EPM itself runs, not against generic tropical defaults. EPM operates a 4,080 km wastewater network across 200 km² serving 966,250 residents in ten Aburrá Valley municipalities, backed by 322 km of collection pipe and 34 km of connecting pipe (waterworld.com, Bello Breakthrough article, 2013-02). The two reference plants every proposal should be tested against are San Fernando, with a 1.8 m³/s capacity treating the southern valley, and the Bello WWTP, designed for 5 m³/s, 432,000 m³/day, 3.2 million people, secondary treatment with activated sludge and anaerobic digestion, and a US$450 million Inter-American Development Bank loan (waterworld.com, 2013-02; en.wikipedia.org, Integrated urban water management in Medellín).
For a single housing development, however, the 5 m³/s class is irrelevant. The relevant envelope is the documented residential packaged band of roughly 50–5,000 residents that residential STP suppliers size their modular units for, with above-ground and below-ground configurations selected to match site constraints (biocellwater.com, Residential Development Wastewater Treatment, product page). That band is the correct comparison: a developer proposing a 200-home project is sizing against a packaged unit in the tens of litres-per-second range, not against a municipal interceptor. A vendor who quotes against Bello-class flows without explaining the four-order-of-magnitude difference is signaling that they have not read the site. For comparable residential packaged thinking outside the tropics, the packaged sewage treatment plant for Calgary housing guide walks through a similar municipal-versus-development framing.
Why Medellín's elevation and climate change the technology choice
Medellín sits at approximately 1,500 m elevation, which keeps the city cooler than comparable equatorial latitudes and shifts aeration and biological-kinetics assumptions away from sea-level designs (en.wikipedia.org, Integrated urban water management in Medellín). A "standard tropical" packaged plant that performs as rated at 30 °C will not deliver the same loading rate at the Aburrá Valley's lower mean temperatures, and a proposal that ignores this should be treated as suspect.
Residential flow in the Aburrá Valley is also highly variable. Peak flow typically occurs in the mornings, late afternoon, and evenings, with low flow overnight, and the influent carries high concentrations of ammonia and COD from household disinfectants and cleaning products, compounded by the fact that many individual homes do not have grease traps installed (biocellwater.com, product page). A treatment system must be designed for those peak-to-low ratios, not for a smooth diurnal curve, and the absence of upstream grease control must be built into the biological and solids-handling design from day one.
The third climate-shaped input is regulatory climate. A 2011–2012 Superintendence of Public Works audit inspected 333 of 562 Colombian WWTPs and found 90 non-operating, with many of the remaining plants failing on standards, operating protocols, maintenance, and resilience to natural disasters (waterworld.com, Bello Breakthrough, 2013-02). That audit is the cautionary anchor for any packaged-plant specification in the Aburrá Valley: a unit that ships without documented operating protocols, a preventive maintenance plan, and natural-event resilience is a candidate for the same non-operating list.
Packaged technology options compared: MBR, MBBR, SBR/WSZ, containerized fixed-bed
Four packaged configurations dominate the residential band relevant to a Medellín housing development. They differ on footprint, effluent quality, operator skill, and ability to absorb the Aburrá Valley's hydraulic swings, so the choice should be made against the development's discharge target and site constraints, not against vendor preference.
| Technology | Typical configuration | Strength for Aburrá Valley residential use | Constraint to verify with vendor |
|---|---|---|---|
| MBR (submerged membrane bioreactor, ~0.1–1 μm filtration) | Below- or above-ground biological reactor with integral membrane cassette | Near-reuse effluent suitable for on-site irrigation or strict discharge; roughly 60% of the footprint of conventional activated sludge | Membrane replacement interval, cleaning protocol, and energy use at ~1,500 m elevation |
| MBBR / fixed-bed biofilm reactor | Modular tank with free-moving or fixed media, no sludge recirculation train | Tolerates hydraulic and load swings typical of housing developments; no recirculation pump train to fail | Carrier-media loss over time and access for media top-up |
| SBR / WSZ-type underground integrated unit | Single buried or skid-mounted package combining anoxic/aerobic contact oxidation, sedimentation, and disinfection | Documented for residential-community service in the small-to-medium flow range; no submerged moving parts simplifies maintenance | Cycle-time tuning for Aburrá peak factors and tank venting |
| Containerized "plug and play" modules | ISO-container or skid frame with internal biological process | Phased installation as the development grows; can be added to an existing plant as upgrade modules for ammonia, phosphorus, disinfection, or grease | Heat dissipation at Andean ambient temperatures and crane/lay-down area on site |
The SBR and WSZ-type units are the most common below-ground choice for residential developments. For a project pushing toward irrigation reuse, an MBR packaged plant for housing developments is the natural shortlist, while sites with footprint constraints and a discharge-to-sewer target often fit an underground WSZ package sewage treatment plant.
Sizing a packaged plant for a Medellín housing development
Sizing starts with the development envelope, not the vendor's catalogue. Residential STP suppliers explicitly work in a band from small projects of up to 50 people to larger projects of up to 5,000 people, and the technology and configuration are then selected against site-specific variables (biocellwater.com, product page). A 50-home Andean development sits at the lower end of that band, a 1,500- to 2,000-home master-planned unit sits well inside it, and a multi-phase township approaches the upper end.
Once the resident count is fixed, the next inputs are hydraulic and load. A packaged plant must be designed to handle the significant peak flows combined with periods of low flow at residential developments, and to absorb the high ammonia and COD concentrations that come from disinfectants, cleaning products, and the absence of upstream grease traps (biocellwater.com, product page). Peak factors in the Aburrá Valley should be drawn from the development's own morning and late-afternoon profile, not from a generic tropical curve, and the sizing calculation should preserve headroom for the cleaning-product load described above.
| Input the developer must lock down | Why it matters for a Medellín housing development | Source of the input |
|---|---|---|
| Resident count at full build-out | Places the project in the 50–5,000-resident packaged band used by residential STP suppliers | Urbanistic plan and unit mix at full occupation |
| Peak-to-low flow ratio and diurnal profile | Drives hydraulic equalisation volume and biological stage sizing against Aburrá morning/evening peaks | Comparable site flow monitoring, updated to Andean household pattern |
| Influent ammonia and COD load | High concentrations from cleaning products and absent upstream grease traps must be carried in the biological design | Influent sampling or comparable Colombian residential data |
| Discharge destination and quality target | Discharge to EPM sewer versus on-site irrigation reuse changes the technology shortlist toward MBR or add-on disinfection/phosphorus modules | EPM connection requirements and any reuse permit conditions |
The arithmetic itself is laid out step-by-step in the wastewater treatment capacity calculation guide, which is the right reference once the four inputs above are pinned down. A vendor that quotes capacity before these inputs are agreed has not done the engineering.

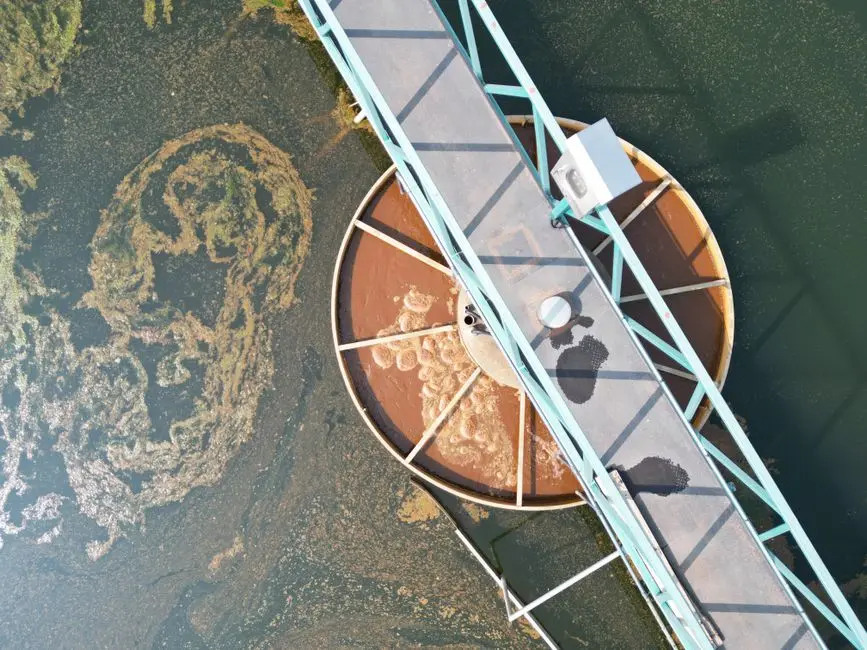

Working with EPM and passing a Colombian operating audit
The 2011–2012 Superintendence audit found that 90 of 333 inspected Colombian WWTPs were non-operating, and that many of the remaining plants were not meeting treatment standards, did not know the proper operating protocols, lacked maintenance, or were vulnerable to natural disasters (waterworld.com, Bello Breakthrough, 2013-02). A packaged plant proposal for the Aburrá Valley should be specified against those exact failure modes: written operating protocols handed over at commissioning, a documented preventive maintenance schedule with named intervals, and a natural-event resilience statement covering the Andean rainfall and seismic context.
Remote visibility is the second audit-readiness lever. Documented residential packaged plants ship with alarms on every component so any fault is immediately clear to the plant owner or operator, with optional GSM alarm dialout modules that can alert the owner or operator to any issue, and continuous SCADA monitoring available where the developer wants it (biocellwater.com, product page). For a housing development where the operator is often a facilities contractor rather than a wastewater specialist, that dialout is the difference between a self-healing fault and an EPM-reportable discharge breach.
Finally, the interceptor and connection design must be coordinated with EPM. San Fernando already handles the southern portion of the Aburrá Valley at 1.8 m³/s and the Bello interceptor is being built at depths of 6–10 m below ground with 7.7 km of concrete pipe between 2.2 and 2.4 m diameter (waterworld.com, Bello Breakthrough, 2013-02). A development's last-mile connection has to match the receiving sewer's hydraulic grade and pretreatment requirements, not just the packaged plant's nameplate capacity, and the developer's civil team should be in the same room as the STP vendor before any pipe is sized. The same logic in a different regulatory setting is covered in the packaged MBR STP sizing for a Santiago hotel guide.
Frequently Asked Questions
What size packaged STP does a 200-home Andean housing development actually need?
It sits in the small-to-medium end of the documented 50–5,000-resident residential packaged band, sized against the development's own resident count, peak-to-low flow ratio, and the high ammonia and COD load from household cleaning products rather than against a generic tropical curve (biocellwater.com, product page). The exact hydraulic and biological sizing is a vendor input that requires the four locked-down items in the sizing table; a written quotation without those inputs is not a sizing, it is a placeholder.
Which packaged technology is best for an EPM sewer discharge versus on-site reuse?
For an EPM sewer connection, an MBBR, fixed-bed, or SBR/WSZ unit that meets EPM's pretreatment requirements is usually sufficient; for on-site irrigation reuse, the higher effluent quality pushes selection toward an MBR with add-on disinfection, or toward an SBR/MBR train with phosphorus removal (biocellwater.com, product page). The decision should be made against the discharge permit the developer is actually applying for, not against the technology the vendor prefers to build.
How much does a packaged STP for a Medellín housing development cost, and what is the lead time?
No cost or lead-time figure for a packaged STP in the Aburrá Valley is supported by the research available here, so a buyer should request a written quote tied to the four sizing inputs (resident count, peak-to-low flow ratio, influent ammonia and COD, discharge destination) rather than rely on a typical range (biocellwater.com, product page). For municipal-scale context, the Bello WWTP was financed with a US$450 million IDB loan and ACCIONA Agua's contract was reported at US$347 million, but that is a 5 m³/s secondary plant with anaerobic digestion and energy recovery, not a residential packaged unit (waterworld.com, Bello Breakthrough, 2013-02).
How do I pick a packaged-STP supplier that will not end up on the next Superintendence non-operating list?
Require documented operating protocols, a
