Microelectronics wastewater recycling demands specialized treatment to remove low-concentration but high-risk contaminants like tetramethylammonium hydroxide (TMAH) and heavy metals. In 2025, hybrid systems combining membrane bioreactors (MBR), reverse osmosis (RO), and zero-liquid-discharge (ZLD) technologies achieve 99.8% contaminant removal and 95%+ water recovery. For example, a 1,000 m³/day system treating TMAH-laden wastewater can reduce discharge fines by $1.2M/year while cutting freshwater consumption by 80%. This guide provides engineering specs, ZLD cost breakdowns, and a step-by-step blueprint for implementation.
Why Microelectronics Wastewater Recycling Is Non-Negotiable in 2025
Semiconductor fabs consume between 2 and 8 million gallons of water per day for a 300mm facility, according to ITRS 2024 data, placing immense pressure on local water resources. Wastewater generation from microelectronics manufacturing has nearly doubled in the past eight years, intensifying the need for advanced treatment solutions. Regulatory bodies are imposing stringent penalties, with potential fines of $25,000/day for TMAH discharge violations under China GB8978-2025 and the EU Industrial Emissions Directive. Compounding this, 40% of global fabs are projected to face significant water supply constraints by 2027, as reported by McKinsey in 2024. Implementing robust microelectronics wastewater recycling systems offers substantial financial benefits, with recycled water costing $0.50–$1.20/m³ compared to $2.50–$4.00/m³ for fresh municipal water, based on 2025 benchmark data. This economic incentive, combined with regulatory pressure and environmental stewardship, makes advanced wastewater recycling an essential operational strategy for semiconductor and microelectronics manufacturers.
Contaminant Profile: What’s in Microelectronics Wastewater and Why It’s Hard to Treat
microelectronics wastewater recycling - Contaminant Profile: What’s in Microelectronics Wastewater and Why It’s Hard to Treat
Microelectronics wastewater contains a complex array of organic and inorganic pollutants, often at low concentrations but with high toxicity. Organic pollutants include tetramethylammonium hydroxide (TMAH), typically found at concentrations of 50–500 mg/L, alongside ammonium (100–1,000 mg/L), isopropyl alcohol (IPA), and various photoresist residues. Inorganic pollutants are equally challenging, encompassing heavy metals such as arsenic (0.1–5 mg/L), chromium (0.5–10 mg/L), copper (1–20 mg/L), as well as high concentrations of fluoride (50–500 mg/L) and silica (10–100 mg/L). The primary difficulty in treating these streams stems from the low concentration yet high toxicity of substances like TMAH, which is lethal to aquatic life at concentrations as low as 10 mg/L, according to EPA 2024 guidelines. contaminant loads can fluctuate by up to 300% during processes like chemical-mechanical planarization (CMP) and etching, making consistent treatment challenging. Standard biological treatment methods often fail due to TMAH’s inherent antimicrobial properties and the toxicity of heavy metals, which inhibit microbial activity and necessitate specialized hybrid approaches.
Contaminant Type
Specific Pollutant
Typical Concentration Range (mg/L)
Key Challenge
Organic
Tetramethylammonium Hydroxide (TMAH)
50–500
High toxicity, antimicrobial properties, inhibits standard biological treatment
Organic
Ammonium
100–1,000
High nitrogen load, requires nitrification/denitrification
Organic
Isopropyl Alcohol (IPA)
Variable
High COD, volatile organic compound
Inorganic
Arsenic
0.1–5
Highly toxic heavy metal, requires stringent removal
Inorganic
Chromium
0.5–10
Toxic heavy metal, valence state impacts treatability
Inorganic
Copper
1–20
Heavy metal, common in etching, toxic to biological systems
Inorganic
Fluoride
50–500
Forms insoluble precipitates, can scale membranes
Inorganic
Silica
10–100
Causes severe membrane fouling, difficult to remove completely
Treatment Stages: A Hybrid Process Design for 99.8% Contaminant Removal
Achieving 99.8% contaminant removal and high water recovery in microelectronics wastewater necessitates a multi-stage hybrid treatment process. This engineering blueprint typically begins with robust pretreatment to protect downstream processes.
Stage 1: Pretreatment (Screening + pH Adjustment)
This initial stage removes 60–80% of suspended solids and initiates heavy metal removal through chemical precipitation. For instance, fluoride is often precipitated as calcium fluoride (CaF₂) by adjusting pH with lime, significantly reducing its concentration before subsequent stages.
Stage 2: Primary Treatment (Chemical Coagulation + DAF)
Following pretreatment, chemical coagulation with agents like ferric chloride or polyaluminum chloride (PAC) effectively removes colloids, fine suspended solids, and a significant portion of organic matter. Dissolved Air Flotation (DAF) systems, such as Zhongsheng’s ZSQ series, then efficiently separate these flocculated particles, achieving 70–90% TMAH removal and reducing total suspended solids (TSS) by over 95%. This step is crucial for protecting biological and membrane systems from fouling.
Stage 3: Biological Treatment (MBR or IC Bioreactor)
Biological treatment targets dissolved organic pollutants, achieving 90–95% Chemical Oxygen Demand (COD) removal. For typical organic loads, advanced MBR systems for microelectronics wastewater offer efficient biological degradation and excellent effluent quality. However, for streams with high TMAH loads (e.g., >200 mg/L), specialized anaerobic or anoxic-aerobic IC bioreactors are preferred as they are more resilient to TMAH’s antimicrobial properties and can handle higher organic concentrations.
Stage 4: Membrane Filtration (UF + RO)
Ultrafiltration (UF) acts as a crucial pre-filter to reverse osmosis (RO), removing remaining suspended solids, colloids, and macromolecules. The subsequent RO systems for ultrapure water recovery, like Zhongsheng’s JY series, achieve over 99% removal of dissolved solids, producing water with resistivity exceeding 18 MΩ·cm, suitable for direct reuse as ultrapure water (UPW).
Stage 5: Zero-Liquid Discharge (ZLD) (Evaporation + Crystallization)
The final stage in a comprehensive microelectronics wastewater recycling system is ZLD, which recovers 95% or more of the remaining water from the RO concentrate. Technologies like mechanical vapor recompression (MVR) evaporators or crystallizers concentrate the brine into solid waste (e.g., gypsum, mixed salts) for safe disposal or potential reuse, ensuring no liquid discharge and maximizing water recovery.
A typical process flow for TMAH-laden wastewater would see influent TMAH at 500 mg/L reduced to <50 mg/L after DAF, further reduced to <5 mg/L after biological treatment, and finally to <0.1 mg/L after RO, meeting stringent reuse standards. This comprehensive approach is detailed in our engineering blueprint for microelectronics wastewater recycling.
Treatment Stage
Key Technologies
Primary Contaminants Removed
Typical Removal Efficiency (%)
Effluent Quality (Example)
1. Pretreatment
Screening, pH Adjustment (Lime)
Large solids, Fluoride, Heavy Metals (initial)
TSS: 60-80%, F⁻: 70-90%
TSS < 100 mg/L, F⁻ < 50 mg/L
2. Primary Treatment
Chemical Coagulation, DAF (Zhongsheng ZSQ series)
Suspended Solids, Colloids, Some TMAH, Heavy Metals
Concentrates residual salts and non-recoverable substances
Water Recovery: >95% (from RO concentrate)
Solid waste for disposal/reuse, no liquid discharge
Hybrid System Comparison: MBR + RO vs. IC Bioreactor + ZLD
microelectronics wastewater recycling - Hybrid System Comparison: MBR + RO vs. IC Bioreactor + ZLD
Selecting the optimal hybrid microelectronics wastewater recycling system depends critically on the specific contaminant profile, desired water recovery, and budget constraints. Two prevalent designs offer distinct advantages. The MBR + RO system typically presents a lower CAPEX, estimated at $1.8M for a 1,000 m³/day facility, and achieves approximately 90% water recovery. This configuration is best suited for wastewater streams with moderate organic loads, specifically where TMAH concentrations are consistently below 200 mg/L. In contrast, an IC Bioreactor + ZLD system requires a higher CAPEX, around $3.2M for a 1,000 m³/day plant, but delivers 95%+ water recovery, making it ideal for high-TMAH (>500 mg/L) or heavily metal-laden streams. Operational expenditures (OPEX) also differ significantly, with MBR + RO systems costing approximately $0.35/m³, while IC + ZLD systems average $0.70/m³ (2025 benchmark data). MBR + RO systems typically require about 30% less physical footprint compared to IC + ZLD configurations. For regulatory compliance, particularly with stringent requirements like China GB8978-2025 ZLD mandates, an IC + ZLD system is generally more robust, whereas MBR + RO may necessitate additional polishing steps.
Criterion
MBR + RO System
IC Bioreactor + ZLD System
CAPEX (1,000 m³/day)
$1.8M
$3.2M
OPEX (per m³)
$0.35
$0.70
Water Recovery Rate
~90%
95%+
Best for Contaminant Profile
Organic-heavy (TMAH < 200 mg/L), lower metal loads
Meets stringent ZLD requirements (e.g., China GB8978-2025)
Complexity
Moderate
High
Energy Consumption
Moderate
Higher (especially ZLD evaporation)
ZLD Cost Breakdown: CAPEX, OPEX, and ROI for Microelectronics Fabs
Implementing a zero-liquid discharge (ZLD) system for microelectronics wastewater typically involves a significant capital investment, ranging from $3M to $5M for a 1,000 m³/day IC + ZLD system in 2025, which includes engineering, equipment procurement, and installation. Operational expenditures (OPEX) for such systems average $0.50–$0.90/m³, with energy consumption accounting for approximately 40% of costs, chemicals 30%, labor 20%, and maintenance 10%. The return on investment (ROI) for these systems is driven by substantial annual savings, including water savings of up to $1.2M/year for a 1,000 m³/day system, avoided discharge fines potentially exceeding $500K/year, and the value of producing ultrapure water (UPW) worth an estimated $300K/year. Consequently, the payback period for an IC + ZLD system typically falls within 3–5 years, while MBR + RO systems can achieve payback in 2–3 years, especially when government subsidies for water recycling are available. Calculating ROI can be done using a straightforward formula: ROI = (Annual Savings - Annual OPEX) / CAPEX.
Cost Category
Breakdown / Range
Notes
CAPEX (1,000 m³/day IC + ZLD)
$3M – $5M
Includes engineering, equipment, installation for ZLD system designs for semiconductor wastewater
Site preparation, piping, electrical, commissioning
OPEX (per m³)
$0.50 – $0.90
Overall operational cost per cubic meter of treated water
Energy: 40%
Pumps, blowers, evaporators (MVR can reduce significantly)
Chemicals: 30%
Coagulants, pH adjusters, antiscalants, biocides
Labor: 20%
Operators, maintenance staff
Maintenance: 10%
Membrane replacement, equipment servicing
ROI Drivers (1,000 m³/day)
Water Savings: $1.2M/year
Reduced freshwater purchase, based on $2.50-$4.00/m³ freshwater cost
Avoided Discharge Fines: $500K+/year
Prevention of regulatory penalties for non-compliance
UPW Production Value: $300K/year
Offsetting UPW generation costs internally
Payback Period
3–5 years (IC + ZLD)
2–3 years (MBR + RO, with subsidies)

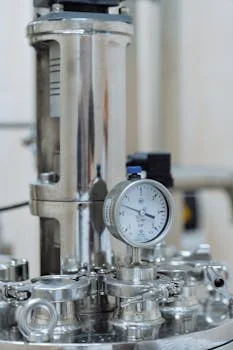

Equipment Selection Guide: Matching Technologies to Your Wastewater Stream
microelectronics wastewater recycling - Equipment Selection Guide: Matching Technologies to Your Wastewater Stream
Effective microelectronics wastewater recycling hinges on selecting the right technologies tailored to the specific contaminant profile and desired effluent quality. For streams with high concentrations of TMAH, specialized biological treatment is paramount; IC bioreactors (e.g., Paques THIOPAQ systems) or advanced oxidation processes (AOPs) like UV/H₂O₂ are highly effective. For metal-heavy streams, robust chemical precipitation, such as sulfide precipitation for arsenic removal, followed by efficient separation using Dissolved Air Flotation (DAF) systems, including Zhongsheng ZSQ series, is critical. To produce ultrapure water (UPW) for reuse, RO systems with high recovery rates (e.g., Zhongsheng JY series, achieving 95% recovery) are essential, often followed by electrodeionization (EDI) for final polishing. For complete zero-liquid discharge, mechanical vapor recompression (MVR) evaporators or crystallizers (from manufacturers like GEA or Veolia) are employed to concentrate brine and recover remaining water.
The selection framework involves three key steps:
Characterize Wastewater: Conduct a comprehensive analysis of your wastewater stream, identifying key contaminants (TMAH, heavy metals, fluoride, silica) and their concentration ranges, as well as flow rate variability.
Define Recovery Goals: Determine the target water recovery rate (e.g., 80%, 95%, ZLD) and the required quality for reuse applications (e.g., UPW for fab processes, cooling tower makeup).
Match Technology to Contaminants: Based on the characterization and recovery goals, select technologies that specifically target identified pollutants and achieve the desired effluent quality efficiently. For instance, if silica and boron are primary concerns for UPW production, RO + EDI is a clear choice.
Frequently Asked Questions
What are the discharge limits for TMAH under China GB8978-2025?
Under China GB8978-2025, the direct discharge limit for TMAH into receiving waters is 0.5 mg/L. For internal reuse applications, the required TMAH concentration in the treated effluent must be even lower, typically below 0.1 mg/L, to ensure product quality and prevent accumulation in closed-loop systems.
How do I handle microelectronics sludge?
Microelectronics wastewater treatment generates sludge, especially from chemical precipitation and biological stages. This sludge often contains concentrated heavy metals and other hazardous substances. It must be stabilized, typically by adjusting pH to >12 with lime, and then dewatered using equipment like plate-and-frame filter presses to reduce volume. The dewatered sludge is then disposed of in designated hazardous waste landfills in compliance with local regulations.
Can I reuse recycled water for UPW production?
Yes, recycled microelectronics wastewater can be reused for ultrapure water (UPW) production, but it requires advanced polishing steps beyond basic RO. Typically, a combination of RO followed by electrodeionization (EDI) is necessary to achieve the stringent >18 MΩ·cm resistivity required for semiconductor manufacturing. A case study demonstrated 99.9% removal of challenging contaminants like silica and boron from RO permeate using subsequent EDI, enabling its reuse for UPW.
What’s the biggest mistake in microelectronics wastewater recycling?
The biggest mistake in microelectronics wastewater recycling is underestimating the importance of robust pretreatment. Inadequate pretreatment accounts for approximately 80% of RO membrane fouling incidents, leading to premature membrane replacement, increased cleaning cycles, and higher operational costs. Proper screening, chemical coagulation, and DAF systems are critical to remove suspended solids, colloids, and heavy metals effectively before water reaches sensitive membrane processes. For more detailed insights, refer to our blog on CMP wastewater treatment solutions.
How do I comply with EU Industrial Emissions Directive for semiconductor wastewater?
To comply with the EU Industrial Emissions Directive (IED) for semiconductor wastewater, facilities must implement Best Available Techniques (BAT) to minimize pollutant discharge. This often translates to implementing ZLD system designs for semiconductor wastewater and stringent monitoring of heavy metals. For example, discharge limits typically require arsenic concentrations below 0.1 mg/L and chromium below 0.5 mg/L. Continuous online analyzers for key parameters are essential for demonstrating compliance and optimizing treatment performance.
