An ultrasonic level sensor clarifier loop holds ±0.2% of range on 4–20 mA HART, sheds condensate on a vibrating face, and costs 30–40% less than radar below 10 m span with solids under 3% TS.

Why most clarifier level mistakes happen before the sensor is ordered

An ultrasonic transmitter on a clarifier water surface measures air-to-liquid distance by time-of-flight, usually within ±2 mm on a 0–6 m secondary clarifier span at 15–30°C after temperature compensation. Contact floats and bubblers fail first from ragging and FOG, not from electronics. Specifying beam angle, blocking distance, and fail-safe current before purchase prevents most false sludge-pump starts and weir carryover.

A Total Suspended Solids (TSS) permit breach is rarely a full process collapse. More often it follows a 0.3 m level drift during peak storm flow (HydropureWater field data, 2025). Legacy float cables and pressure bubblers fight ragging and fat/oil/grease (FOG). A float weighted by rag balls sits lower, reports a false low level, and delays sludge pumping until the blanket rises over the effluent weirs.

In industrial trains that use lamella clarifiers that accept ultrasonic level control, the air-to-liquid reading gates polymer dosing. A 5% level error can drive roughly US$1,500 per month in wasted polymer at a mid-sized plant. High humidity, foam, and bridge scrapers favor non-contact sensing. Ignoring beam angle or blocking distance lets the echo lock on a sidewall or ladder instead of the water surface.

Frequency, temperature compensation, and signal-to-noise limits remove most phantom spikes that trip false alarms. If effluent quality is already poor while the level loop looks stable, review how to fix TSS spikes if the sensor is already accurate before buying another transmitter.

Ultrasonic vs radar vs pressure bubbler on clarifiers

Budget defense needs a clear technology comparison. Radar is often called the gold standard, yet it is frequently over-specified for clarifiers with spans under 10 m. Pressure bubblers look cheap at purchase, then burn labor on clogged nozzles in high-solids service. According to Endress+Hauser (2015), ultrasonic remains a strong fit for many water and wastewater level duties because cost and application features often outweigh radar’s incremental accuracy.

Ultrasonic units emit a sound pulse, typically 30 kHz to 75 kHz, and measure time-of-flight. Radar uses electromagnetic waves. Sound travels through air, so temperature changes require the integral thermistor found on modern IP68 transmitters. On the 0–6 m span common to secondary clarifiers, the gap between ultrasonic (±2 mm) and radar (±1 mm) is small for sludge-pump and dosing control.

Heavy, stable foam thicker than 5 cm pushes the choice to radar or a stilling-well ultrasonic. Endress+Hauser (2015) also notes radar handles digester gases and light foam better than open-path ultrasonic. For standard clarifiers with air headspace and light scum, ultrasonic usually wins on ROI at roughly half the hardware price of radar.

Ultrasonic level sensor clarifier specs that belong on the PO

Generic “level sensor” language on a bid sheet invites the wrong transmitter. Call out transducer frequency and temperature drift limits so summer heat and winter condensate do not blank the echo. Higher frequency near 50 kHz shrinks the housing but widens the blocking distance. Lower frequency near 30 kHz penetrates steam better yet needs more freeboard above high water.

Accuracy is conditional. Clarifier headspace air can swing about 20°C from noon to midnight. Without an internal temperature sensor, level drifts near 0.17% of measured distance per degree Celsius. Modern transmitters compensate that path, but the purchase specification must state the residual drift limit.

Transducer face material matters in wastewater. PVDF or polycarbonate faces match acoustic impedance better than stainless steel and shed condensate through vibration (HydropureWater field data, 2025). Where oily influent needs upstream floatables removal before clarification, pair the level loop with a Dissolved Air Flotation (DAF) System so foam and grease load on the clarifier surface stay manageable.

Three installation dead-zones that destroy ultrasonic accuracy

Mounting geometry ruins more ultrasonic loops than transducer quality. Sound spreads as a cone; any ladder, pipe, or wall inside that cone freezes or spikes the reading. For a 6° beam at 5 m depth, beam radius is about 0.26 m, so keep at least 0.3 m clear of the wall.

• The Sidewall Dead-Zone: Sound waves do not travel in a laser-straight line; they spread. For a sensor with a 6° beam angle, the radius of the beam at 5 meters deep is approximately 0.26m. Therefore, the sensor must be mounted at least 0.3m away from the tank wall. If the clarifier has a sloped wall or internal launders, this clearance must be increased. (Rule of thumb: Clearance = 0.05 x Distance to Bottom).
• The Blocking Distance (Near-Field) Zone: Every ultrasonic transducer has a minimum distance it cannot "see"—usually 0.25m to 0.4m. This is the time the transducer needs to stop vibrating from the "send" pulse before it can listen for the "return" pulse. If the water level rises into this zone during a heavy rain event, the sensor will lose the signal or report a maximum-level error. Always mount the sensor at least 0.6m above the maximum expected water level.
• The Turbulence & Foam Zone: While not a physical distance, the "signal dead-zone" created by scum-spray headers or surface foam can attenuate the signal by 5–8dB. If the sensor is mounted directly over an inlet where turbulence is high, the sound waves will scatter. The solution is to mount the sensor in a stilling well (minimum 100mm ID) or use a "false bottom" echo-mapping feature in the sensor software to ignore fixed obstructions.

Use a swing-out or swivel bracket so operators can wipe the face without shifting zero. Avoid mounting over effluent weirs; the falling nappe creates local air currents that deflect the pulse. Most plants we size for secondary clarifiers run the sensor near the outer third of the radius, clear of scraper bridges and stilling columns.

What clarifier selection criteria affect level sensors?

Clarifier type sets the level-loop constraints before any brand is chosen. Primary tanks see higher FOG and grit; secondary tanks see thinner blankets and storm dilution; lamella packs shorten vertical span but crowd the beam path with plates and launders. Overflow rate, solids loading, and scraper geometry decide where a clean echo cone can live.

Circular primary units often need sidewall clearance plus stilling wells near the inlet baffle. Rectangular trains need mounts that clear flights and flights returns. Lamella and packed settlers leave less freeboard, so blocking distance and beam width become the first filter on the datasheet. When industrial trains use DAF ahead of clarification, surface foam on the clarifier usually drops, which keeps ultrasonic viable instead of forcing an early jump to radar.

How do primary and secondary clarifiers differ?

Primary clarifiers load sensors with FOG, grit splash, and thicker surface films; secondary clarifiers load them with humidity, algae, and storm-driven level swings. Primary mounts favor stilling wells and faces that shed grease. Secondary mounts favor IP68 housings, 0.6 m freeboard above high water, and 21 mA fail-safe for overflow protection. Same ±0.2% FS accuracy class applies; the installation envelope does not.

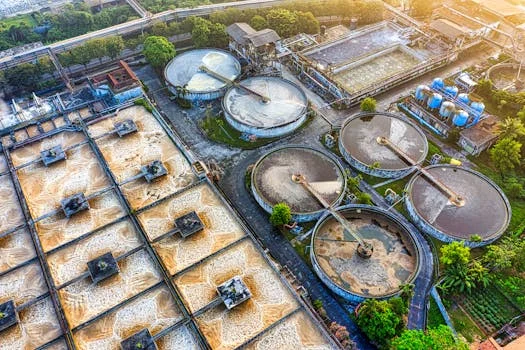

2026 cost and ROI workbook for ultrasonic clarifier level loops

Procurement needs hard dollars, not reliability slogans. The main savings come from polymer and alum control plus the labor removed from float and bubbler cleaning. On a typical municipal or industrial clarifier, payback for a quality ultrasonic loop is generally under 18 months when dosing error and maintenance are both counted.

Selection checklist before you issue the PO: confirm span under 10 m with solids under 3% TS; require ±0.2% FS or ±2 mm at 15–30°C; set beam angle under 10° at −3 dB; keep 0.3 m wall clearance and 0.6 m freeboard above high water; specify 4–20 mA HART 7 with 21 mA fail-safe; pick PVDF or polycarbonate faces; plan quarterly face wipes. Capex near US$1,250 against about US$2,780 per year in avoided chemical and labor cost is the workbook most finance teams accept.

Who this is for: plant engineers and EPC instrument leads sizing non-contact level on primary, secondary, or lamella clarifiers with air headspace and light foam. Who should look elsewhere: digesters with methane or chlorine headspace, and tanks with stable foam thicker than 5 cm—radar fits those duties better. Next step: with tank depth, foam notes, and fail-safe current ready, use our clarifier level loop inquiry form to confirm mount and output before purchase.
