When to Choose a Submerged MBR: Key Decision Drivers for 2025 Projects
Submerged membrane bioreactors (MBRs) deliver near-reuse-quality effluent (<1 μm filtration) with a 60% smaller footprint than conventional activated sludge (CAS) systems, but at higher capital costs (¥15,000–¥25,000/m³/day vs ¥8,000–¥12,000 for CAS). For industrial applications with tight space or strict discharge limits (e.g., COD <50 mg/L), MBRs outperform alternatives like MBBR and DAF in effluent quality but require more maintenance due to membrane fouling. This guide compares submerged MBRs to CAS, MBBR, SBR, and DAF across 12 engineering parameters, including energy use, footprint, and compliance with 2025 standards.
Space constraints represent the primary driver for MBR adoption in 2025, as the technology requires 60% less physical area than CAS by eliminating secondary clarifiers (Zhongsheng field data, 2025). Urban industrial zones or retrofitting projects with high land acquisition costs (exceeding ¥5,000/m²) often justify the higher initial CAPEX with the footprint reduction alone. MBRs achieve absolute filtration at the 0.1–0.4 μm level, effectively removing bacteria, viruses, and microplastics that bypass the 20–100 μm separation threshold of gravity clarifiers used in CAS and Moving Bed Biofilm Reactors (MBBR).
Regulatory compliance is the second critical driver, particularly for facilities facing "Class A" discharge standards or local mandates requiring Chemical Oxygen Demand (COD) below 50 mg/L and Total Nitrogen (TN) below 10 mg/L. The high Mixed Liquor Suspended Solids (MLSS) concentration in an MBR provides a robust biological buffer, making it suitable for high-stakes environments such as comparing MBR to other technologies for hospital wastewater where pathogen removal is non-negotiable.
Water reuse goals are increasingly dictating technology selection as industrial water prices rise globally. MBR effluent quality typically meets standards for non-potable reuse—such as cooling tower make-up, irrigation, or toilet flushing—without the need for tertiary sand filtration or ultrafiltration (UF) stages. In pharmaceutical and food processing plants, using an MBR as a pre-treatment for Reverse Osmosis (RO) significantly extends RO membrane life by providing a Silt Density Index (SDI) consistently below 3.0.
How Submerged MBRs Work: Process Flow and Engineering Parameters
The submerged MBR process integrates biological degradation and solids separation into a single step.Submerged MBR systems operate by immersing membrane modules directly into the aerobic bioreactor or a dedicated membrane tank, utilizing a vacuum-driven permeate pump to pull treated water through the membrane barrier. This configuration uses PVDF flat sheet membrane modules for submerged MBR applications due to their superior physical robustness and ease of cleaning compared to hollow fiber alternatives.
Engineering parameters for submerged MBRs differ significantly from conventional biological processes. Flat sheet membranes typically operate at flux rates of 20–30 Liters per Square Meter per Hour (LMH), whereas hollow fiber modules range between 15–25 LMH. Coarse bubble aeration is employed at the base of the membrane modules to create a cross-flow effect, scouring the membrane surface to limit the accumulation of "cake layers"—a process known as membrane fouling control. This scouring air typically accounts for 30–40% of the total energy demand of the system.
The biological environment in a Zhongsheng’s integrated MBR system for industrial wastewater is maintained at an MLSS range of 8,000–12,000 mg/L. This is 3 to 4 times higher than the 2,000–4,000 mg/L found in CAS systems. While this high biomass density allows for smaller tank volumes, it increases the viscosity of the mixed liquor, requiring specialized hydraulic modeling to ensure adequate oxygen transfer. Cleaning protocols involve physical "relaxation" (periodic cessation of suction) and chemical Clean-In-Place (CIP) cycles using Sodium Hypochlorite (NaOCl) for organic fouling and citric acid for inorganic scaling, typically performed every 3 to 6 months.
| Parameter | Flat Sheet MBR (PVDF) | Hollow Fiber MBR (PES/PVDF) | Engineering Impact |
|---|---|---|---|
| Design Flux (LMH) | 20 – 30 | 15 – 25 | Flat sheet requires less surface area for same flow. |
| Pore Size (μm) | 0.1 – 0.4 | 0.03 – 0.1 | Hollow fiber offers slightly higher pathogen rejection. |
| Operating MLSS (mg/L) | 8,000 – 12,000 | 8,000 – 10,000 | High MLSS reduces bioreactor volume by 50%+. |
| Backwash Capability | Limited (Low pressure) | Standard (High pressure) | Hollow fiber relies more on automated backwashing. |
| Cleaning Frequency | 3 – 6 Months | 1 – 3 Months | Flat sheets are more resistant to "ragging" and clogging. |

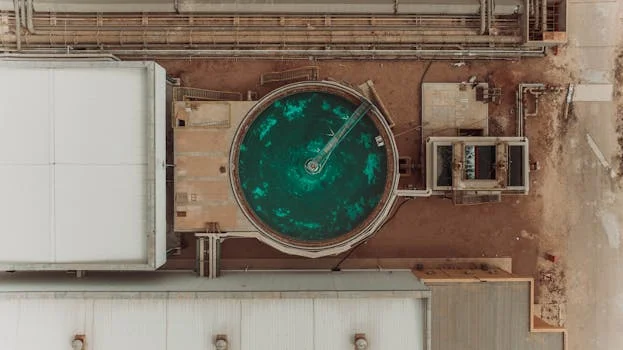

Submerged MBR vs Alternatives: Head-to-Head Comparison of 12 Engineering Parameters
While MBR provides the highest quality, its energy consumption (0.8–1.5 kWh/m³) is substantially higher than CAS (0.3–0.6 kWh/m³) due to the air scouring requirements of the membranes. For 2025 projects, the total lifecycle cost often favors MBR when land costs and water reuse credits are factored in.
| Parameter | Submerged MBR | CAS | MBBR | DAF (Pre-treatment) |
|---|---|---|---|---|
| Effluent COD (mg/L) | < 30 | 50 – 100 | 50 – 80 | 150 – 300 (Removal 60-80%) |
| Effluent TSS (mg/L) | < 1 | 10 – 30 | 20 – 50 | < 50 |
| Footprint (m²/m³/d) | 0.5 – 1.0 | 1.5 – 3.0 | 1.0 – 2.0 | 0.2 – 0.4 |
| Energy Use (kWh/m³) | 0.8 – 1.5 | 0.3 – 0.6 | 0.4 – 0.8 | 0.1 – 0.3 |
| CAPEX (¥/m³/day) | 15k – 25k | 8k – 12k | 10k – 15k | 5k – 8k |
| OPEX (¥/m³) | 2.5 – 4.0 | 1.0 – 2.0 | 1.5 – 2.5 | 0.8 – 1.5 |
| Sludge Yield (kg/kg COD) | 0.2 – 0.4 | 0.4 – 0.6 | 0.3 – 0.5 | N/A (Physical separation) |
| Automation Level | High | Low/Medium | Medium | Medium |
| Maintenance Needs | High (Fouling) | Low | Moderate | Moderate (Mechanical) |
| Pathogen Removal | > 4-log | 1-2 log | 1-2 log | Low |
| Water Reuse Suitability | Direct Reuse | Requires UF/RO | Requires UF/RO | Not Suitable |
| Compliance (2025) | Exceeds Class A | Meets Standard | Meets Standard | Pre-treatment only |
Sludge management is another differentiating factor. MBRs typically operate at higher Mean Cell Residence Times (MCRT), resulting in lower sludge production (0.2–0.4 kg TSS/kg COD) compared to CAS (0.4–0.6 kg TSS/kg COD). This reduces the load on downstream dewatering equipment. When evaluating total plant design, engineers should consult sludge dewatering options for MBR systems to ensure the higher viscosity sludge is handled efficiently by the filter press or centrifuge.
Decision Tree: Which Wastewater Treatment Technology Fits Your Project?
The following decision framework guides engineers through the five critical branching points used in 2025 procurement cycles.Step 1: Effluent Quality Requirements. Does the project require direct water reuse or compliance with strict "Class A" limits (COD <50 mg/L)? If yes, Submerged MBR is the primary candidate.
Step 2: Space Availability. Is the available footprint limited or is this a retrofit of an existing plant? MBR’s ability to operate at high MLSS allows for a 60% footprint reduction.
Step 3: Budget and Lifecycle Cost. Is the project CAPEX-constrained or OPEX-optimized? While MBR has a 50-100% higher CAPEX than CAS, it may offer a lower Total Cost of Ownership (TCO) if it eliminates the need for tertiary treatment or if water reuse reduces utility bills.
Step 4: Operational Capacity. Does the facility have skilled technical staff? MBRs require precise control of transmembrane pressure (TMP) and automated CIP sequences.
Step 5: Influent Characteristics. Does the wastewater contain high levels of Fats, Oils, and Grease (FOG)? High FOG loads will rapidly foul MBR membranes.

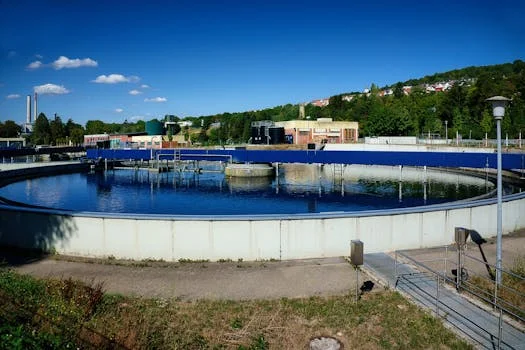

Cost-Benefit Analysis: Submerged MBR vs Alternatives for a 500 m³/day Plant
A submerged MBR system typically requires a CAPEX of ¥7.5M to ¥12.5M,
