Why Cape Town Residential and Camp Projects Need a Different Sizing Logic
Cape Town's post-2018 water-resilience posture means that new residential estates and seasonal camps in the Western Cape are normally designed for on-site treatment and reuse rather than for sea-outfall discharge, which is a planning constraint that does not show up in European MBR sizing templates. The same projects also face a different hydraulic signature: camp and resort occupancies swing between near-empty midweek and full over holiday weekends, so the peak-to-average flow ratio is high even when the average daily flow is small.
That ratio, not the population, tends to drive container selection. Suppliers such as MENA-Water and Sigmadaf both position their containerized MBR system products as the standard answer for decentralised, fast-to-deploy sites that need reuse-quality effluent. The following sizing method prioritizes defensible local inputs and container envelope constraints over generic capacity templates.
The Six Inputs You Need Before Sizing
Six specific inputs must be established before any sizing arithmetic is defensible. The first is the design population: permanent residents plus staff plus day visitors, with a stated peak occupancy for camps so that the same person is not double-counted. The second is the per-capita sewage flow; Pure Aqua's MBR-C sizing table uses 50 gpd, about 190 L, per capita, and the same convention is used elsewhere in the packaged-plant market — this value should be reconciled against any local South African authority figure before it is frozen into a tender. The third input is a peak factor, because residential morning and evening peaks typically run 2–3× the average hourly flow and the container's hydraulic envelope has to absorb that without bypassing the membranes. The fourth input is the influent load — BOD, COD, ammonia, total nitrogen and the fats/oils/hair risk that Sigmadaf specifically warns must be kept out of an MBR reactor. The fifth input is temperature: Pure Aqua's MBR-C has a design temperature of 20 °C and an operating range of 20–30 °C, and biological activity drops below that band. The sixth input is the reuse target — irrigation, toilet flush or environmental discharge — because that decides whether an anoxic pre-chamber for nitrification–denitrification is needed to meet nitrate limits.
| Input | Engineering value to confirm | Source basis |
|---|---|---|
| Design population | Residents + staff + day visitors; stated peak occupancy for camps | Project brief |
| Per-capita sewage flow | 50 gpd ≈ 190 L per capita | Pure Aqua MBR-C sizing table |
| Peak factor | 2–3× average hourly flow for residential patterns | Residential hydraulics convention |
| Influent load | BOD, COD, NH₃-N, TN; pretreat fats, oils, hair | Sigmadaf MBR design notes |
| Temperature | Design 20 °C; operating 20–30 °C | Pure Aqua MBR-C spec |
| Reuse target | Irrigation / toilet flush / discharge — drives anoxic stage | Project reuse spec |

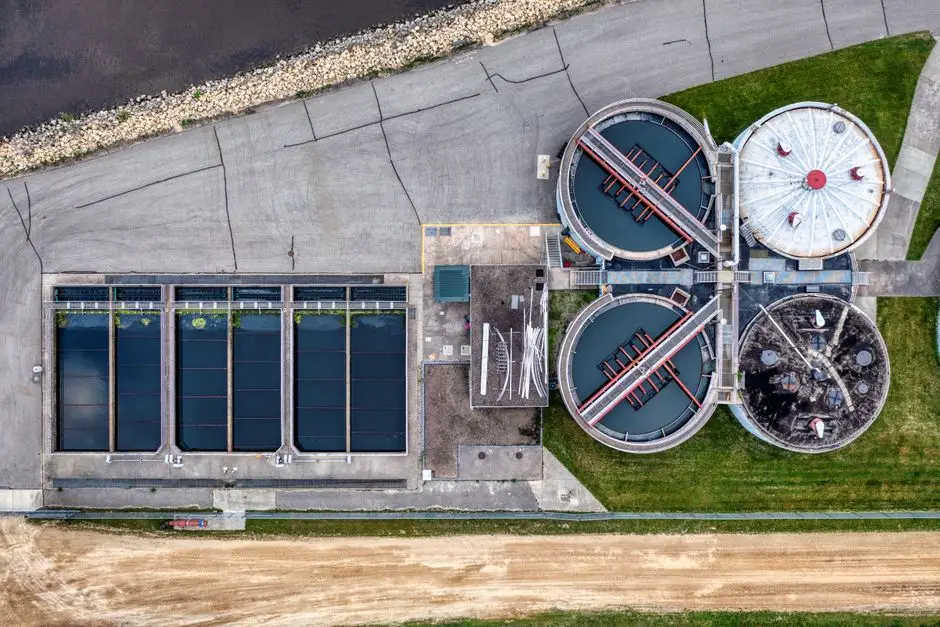

Step-by-Step Sizing Method for a Containerized MBR
The following six-step method applies specific research-backed parameters to calculate system requirements.
- Daily flow. Multiply design population by the per-capita sewage flow. For 200 people at 190 L, that is 38 m³/day, which is the order of magnitude for a small community or seasonal camp.
- Peak hourly flow. Take the average hourly flow (daily flow ÷ 24) and multiply by a peak factor — 2–3 is typical for residential patterns. The MBR's permeate pump, equalisation tank and drum-screen hydraulic rating all have to absorb this peak without overflow.
- Container envelope. MENA-Water states that more than 1,200 m³/day can be filtered in a single 40-ft ISO container, so a 38 m³/day camp sits well inside a 20-ft high-cube unit; confirm tank volumes, blower capacity and footprint with the supplier before committing.
- Membrane area check. Both Sigmadaf's submerged flat-plate modules and Pure Aqua's SMM hollow-fiber modules are sized in m² of membrane area per m³/day. Request the supplier's flux curve at the design temperature and check it against the design daily flow; Pure Aqua's MBR-C ships with built-in cleaning and air-scouring, and Sigmadaf describes the same in-situ cleaning on its flat-plate reactor.
- Pretreatment. Include a 1.5 mm drum screen (Pure Aqua's MBR-C standard) and a coarse grit/fat-removal stage. Sigmadaf explicitly states that fats, oils and hair must be kept out of the MBR reactor, which is a non-negotiable pretreatment scope for any camp or resort kitchen waste stream.
- Reuse configuration. If the City or the estate's irrigation specification sets a nitrate limit, add the anoxic pre-chamber Sigmadaf describes for simultaneous COD and nitrogen removal; otherwise a single aerobic MBR train is sufficient.
Worked Example: 200-Person Coastal Camp Near Cape Town
Take a 200-person coastal camp on the Western Cape with an irrigation-reuse target. The inputs are: 200 persons at 190 L/capita/day (the Pure Aqua 50 gpd figure), design temperature 20 °C, and an irrigation reuse target. Daily flow is 200 × 190 L = 38,000 L/day, or about 38 m³/day, which is well inside the 1,200 m³/day benchmark MENA-Water documents for a single 40-ft container. A 20-ft high-cube container carrying equalisation, aeration and membrane tanks is the typical envelope; MENA-Water offers both an I-Version, which is fully integrated and mobile, and a U-Version where aeration and buffering sit in underground tanks — for a coastal camp the I-Version is usually simpler to permit, transport and redeploy if the site lease changes. Membrane area is then checked by asking the supplier for the specific flux at 20 °C and multiplying by 38 m³/day; Pure Aqua's MBR-C is offered in 20-ft or 40-ft HC configurations with built-in cleaning, while Sigmadaf's flat-plate modules run at 6,000–12,000 mg/L MLSS for high-load efficiency. Because the target is irrigation, the anoxic pre-chamber per Sigmadaf's nitrogen-removal configuration should be specified and the effluent limits written into the tender accordingly.

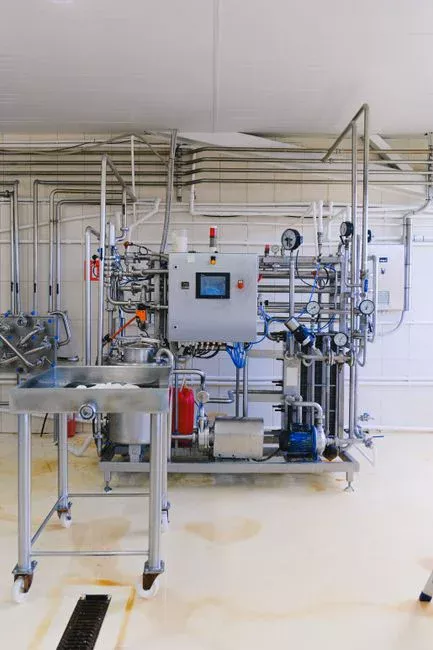

Choosing Between Containerized Configurations for Western Cape Sites
The decision framework below ties each configuration choice to a Western Cape condition, rather than presenting the options in the abstract. A camp or estate in the Cape has to weigh: a flat-plate module versus a hollow-fiber module, an I-Version versus a U-Version, a 20-ft versus 40-ft envelope, and an aerobic versus an anoxic-aerobic train. The table below summarizes the trade-offs that follow from these site-specific conditions.
| Decision | Option A | Option B | Western Cape default |
|---|---|---|---|
| Membrane module | Sigmadaf flat-plate CPVC, 0.2–0.4 μm pore, PFAS-free | Pure Aqua MBR-C hollow-fiber PVDF, 0.04 μm pore | Flat-plate for variable camp load; hollow-fiber for tighter bacterial/viral log-removal |
| Container architecture | MENA-Water I-Version — fully integrated, mobile | MENA-Water U-Version — underground buffering | I-Version for camps and temporary sites; U-Version for permanent residential estates where landscaping matters |
| Container size | 20-ft high-cube | 40-ft high-cube (over 1,200 m³/day per MENA-Water) | 20-ft HC for small residential and camp projects; 40-ft HC only when flow approaches several hundred m³/day |
| Biology train | Aerobic-only MBR | Aerobic + anoxic pre-chamber (Sigmadaf nitrification–denitrification) | Anoxic stage only if nitrate is in the discharge or reuse spec |
| Power rating | 460 V / 3 Ph / 60 Hz (Pure Aqua MBR-C) | Local Western Cape supply | Confirm 460 V/3 Ph/60 Hz availability or specify transformer; check winter biology temperature |
Cleaning burden is a separate but linked question. Sigmadaf describes in-situ air-scour plus chemical cleaning (chlorine, citric acid, caustic) programmed by the plant PLC, and MENA-Water notes that the membranes need only one to two maintenance clearings per year. Both architectures support a low-operator model that suits a remote camp where full-time attendance is not in the budget. A flat-sheet MBR membrane module from a supplier with a documented cleaning regime is the right anchor for that operating model. For an engineer also scoping tropical or equatorial equivalents, the methodology overlaps heavily with sizing a containerized MBR STP in Manila and with sizing a containerized MBR STP in Kigali; the Cape Town-specific part is the reuse target, the peak-factor on a tourist calendar, and the container-size default. The role of biomass concentration in the sizing decision is covered separately in the technical guide to MLSS in activated sludge.
Frequently Asked Questions
What per-capita flow should I use for a Cape Town camp?
Use the same packaged-plant convention of 50 gpd, about 190 L per capita, until a local authority figure is confirmed. Request a written confirmation of the per-capita assumption from the City of Cape Town or the relevant district before issuing the tender, because this single value sets the rest of the sizing arithmetic.
20-ft or 40-ft container for a small residential estate?
Most small residential and camp projects fit inside a 20-ft high-cube; the 40-ft becomes economic only when flows approach several hundred m³/day. Confirm tank volumes, blower capacity and the supplier's standard skids against the design flow before specifying a 40-ft unit.
Do I need an anoxic stage for irrigation reuse?
If nitrate is in the discharge or reuse specification, yes — Sigmadaf's anoxic pre-chamber is the documented configuration for simultaneous COD and nitrogen removal. Without that spec, a single aerobic MBR train is sufficient.
What is the realistic delivery and lead time for a containerized MBR to a Western Cape site?
Containerized MBRs ship as factory-built ISO units, which is the main reason they are specified for fast-track Western Cape projects. Confirm a specific lead time in writing at quotation stage, along with the sea-freight schedule to Cape Town harbour and the overland transport window to site, because these vary and they directly affect the construction programme.
