Submerged MBR Design Criteria: 2026 Engineering Guide for Plant Specifiers

What PD CEN/TR 15897 actually covers for submerged MBRs

PD CEN/TR 15897 is the CEN Technical Report that defines the terms and general principles used in submerged MBR technology for municipal wastewater, and it is the most direct standards-anchored reference a specifier can cite when writing design criteria (BSI, PD CEN/TR 15897). The report draws a deliberate line between two topologies — MBR Separate Systems and MBR Integrated Systems — and asks the specifier to fix that distinction before any sizing work begins (BSI, PD CEN/TR 15897).

The report's scope is municipal wastewater and custom-designed plants above 500 PT, with large systems above 10,000 m³/d treated through separated membrane tanks (BSI, PD CEN/TR 15897). It also makes a structural point: interchangeability between vendors only makes sense at the complete membrane-system level, so the report deals with the entire membrane system rather than the membrane modules alone (BSI, PD CEN/TR 15897). That single statement re-routes the design basis: criteria should be written at the membrane-system level, not at the module level, which is the framing used in the consolidated table later in this article.

Scale thresholds that drive the design basis

PD CEN/TR 15897 applies to custom-designed MBR systems for more than 500 PT, and that number is the lower boundary of the report's design-criteria scope (BSI, PD CEN/TR 15897). Plants at or below 500 PT fall outside the report's stated scope; for those, the specifier must justify design inputs using alternative references or vendor data, because the CEN Technical Report itself does not claim to cover them (BSI, PD CEN/TR 15897).

A second threshold governs topology. For large MBR systems above 10,000 m³/d, the report notes a tendency to design with separated membrane tanks, and for that reason it focuses on separate membrane tanks rather than the membrane module alone (BSI, PD CEN/TR 15897). The two thresholds map directly to engineering decisions: above 10,000 m³/d, a separate-membrane-tank configuration is the default that the standard treats as its reference case; below 10,000 m³/d but still above 500 PT, integrated topologies remain a valid option within the same scope (BSI, PD CEN/TR 15897). Engineers writing enquiry documents should record which of the two regimes their plant sits in, because the choice changes which clauses of the report are most directly applicable.

Separate membrane tank versus integrated system: the structural decision

PD CEN/TR 15897 specifically focuses on separate membrane tanks because of the 10,000 m³/d scale trend, and treats this as a design-criteria decision rather than a layout preference (BSI, PD CEN/TR 15897). Understanding this topology distinction is the first step in setting the system boundaries. In a separate-membrane-tank arrangement, the biological stage and the membrane tank are isolated volumes with their own hydraulics, which makes the membrane-system boundary explicit and is the reason the report writes its criteria at that level.

The report's conclusion on interchangeability drives the second half of the decision. It states that it is not possible to have interchangeable membrane modules without considering a complete system, so the criteria must be written at the system level rather than at the module level (BSI, PD CEN/TR 15897). Hollow-fibre and flat-sheet membrane designs differ in geometry, but the report concludes that separate guidelines are not needed for the two because both are focused on the membrane tank (BSI, PD CEN/TR 15897). For the specifier, the practical consequence is that the design basis should describe the membrane tank — its volume, flux, aeration, cleaning regime, and filterability controls — rather than specify a particular module geometry, and should require vendors to demonstrate compliance at the system level.

Integrated systems remain within the standard's scope and are a valid topology at smaller scales; the design-criteria framework applies to both MBR Separate Systems and MBR Integrated Systems, so the specifier does not need a separate standard for the integrated case (BSI, PD CEN/TR 15897).

Biological design inputs: carbon, nitrogen, and filterability

PD CEN/TR 15897 makes carbon removal a required baseline and recommends complete nitrification in MBR systems — both are effluent-quality criteria the design basis must fix, not optional targets (BSI, PD CEN/TR 15897). The recommendation is explicit: nitrification is recommended, not assumed, which means the design should either justify an alternative nitrification regime or carry complete nitrification through to the effluent specification.

The standard also lists three filterability risks that the design must control. Short circuits may affect filterability, so the hydraulic design has to demonstrate acceptable short-circuit behaviour rather than rely on assumed plug-flow (BSI, PD CEN/TR 15897). High concentrations of extracellular polymeric substances (EPS) may affect filterability, which ties upstream sludge-age and F/M control to membrane performance (BSI, PD CEN/TR 15897). Incomplete biodegradation of wastewater may affect filterability, reinforcing the need for an adequately sized biological stage ahead of the membrane tank (BSI, PD CEN/TR 15897).

Membrane treatment decouples biomass retention from sludge settling, so the MBR can operate at high MLSS without being limited by settleability. The academic source on the Rubí (Barcelona) submerged MBR pilot (Springer, 2007) describes a system whose biomass concentration can be increased to up to 20 mg L⁻¹ in the MBR. That high-MLSS operating point intensifies the EPS and filterability burden identified by PD CEN/TR 15897, which is why the standard frames filterability as a system-level design input rather than a membrane-module property.

Consolidated submerged MBR design-criteria table

The table below consolidates the standards-anchored criteria from PD CEN/TR 15897 into a single reference the engineer can paste into a design basis or compare against a vendor proposal. Every row maps to a specific statement in the CEN Technical Report.

What a submerged MBR looks like in practice: a worked pilot example

The Rubí (Barcelona) pilot documented in the academic literature (Springer, 2007) is a useful reference configuration because it operates as a submerged MBR with a plate-and-frame submerged membrane module and reports measurable performance. The pilot used two A4-sized flat-sheet membranes with 0.106 m² area each and 0.4 μm pore size in an active volume of approximately 21 L. The biocenosis was grown from inoculated municipal sludge and operated in intermittent permeation mode — 8 minutes of permeation followed by 2 minutes of halt — which is the cyclic operating pattern most submerged MBRs use to manage fouling.

Reported removals in the pilot were 98.7% for TSS and 90.4% for total COD, which demonstrates the carbon-removal requirement from PD CEN/TR 15897 being met in a submerged flat-sheet configuration (Springer, 2007). The pilot also illustrates the standard's biological-side point: greater sludge age in the MBR was associated with improved removal of several pharmaceutical compounds, supporting the report's view that filterability and biodegradation are system-level design inputs rather than membrane-module properties (Springer, 2007; BSI, PD CEN/TR 15897). Engineers preparing enquiry documents can use the pilot as a worked example of how sludge-age, biodegradation, and cyclic permeation interact at the membrane-tank level — for a packaged reference, see the HydropureWater integrated MBR system as one example of how these inputs are bundled into a delivered package.

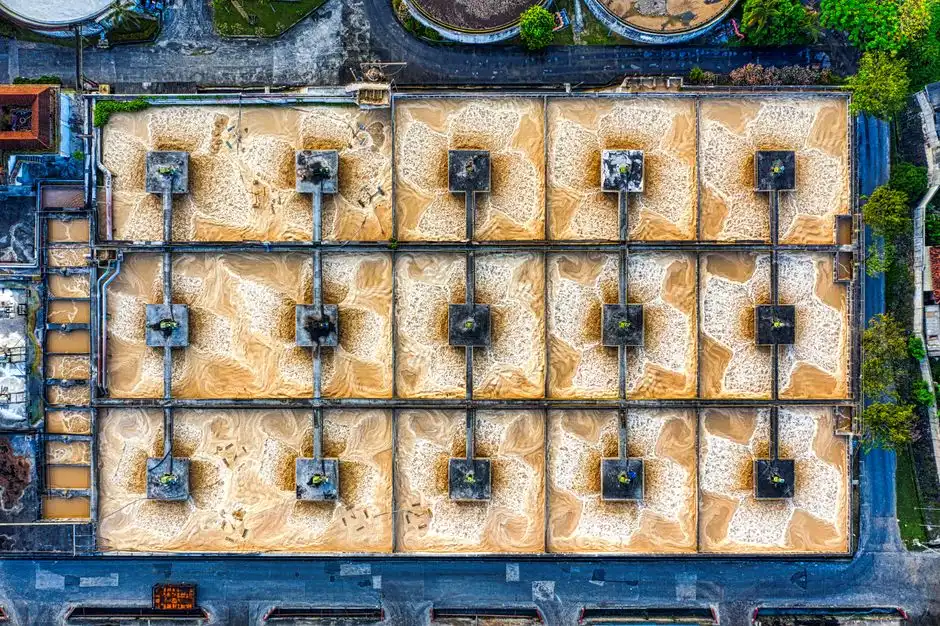

Designing a submerged MBR for industrial and reuse applications

PD CEN/TR 15897 is written for municipal wastewater, and industrial or reuse projects can use it as a framework but must add influent-specific criteria such as toxicity, temperature, F/M ratio, and target reuse quality (BSI, PD CEN/TR 15897). For reuse duty, the sub-1 μm filtration typical of submerged PVDF MBRs is a starting point, but downstream polishing — for example reverse osmosis — is a separate design step and is not covered by the CEN Technical Report (BSI, PD CEN/TR 15897; HydropureWater product catalog, integrated MBR system).

Designers should keep the system-level interchangeability lesson in mind when specifying industrial packages: write the design basis at the membrane-system level rather than at the module level, so the enquiry is robust to module-geometry differences between vendors (BSI, PD CEN/TR 15897). For projects that need a flat-sheet module reference to anchor a module-level discussion, the DF series flat-sheet MBR module is one example of a module-level data sheet, with the caveat that the design criteria themselves live at the membrane-system level. Engineers extending the framework to pharmaceutical or textile duty can also consult the MBR for pharmaceutical wastewater 2026 guide and the MBR for textile industry 2026 guide for the industry-specific overlays that PD CEN/TR 15897 does not cover.

Frequently Asked Questions

What does PD CEN/TR 15897 actually define for submerged MBR design?

PD CEN/TR 15897 defines the terms and general principles for submerged MBR technology treating municipal wastewater, applies to custom-designed MBR systems for more than 500 PT, and distinguishes MBR Separate Systems from MBR Integrated Systems (BSI, PD CEN/TR 15897). It is the CEN Technical Report a specifier should cite first when writing a submerged-MBR design basis, and it is the source behind the consolidated criteria table above.

When should a design basis use a separate membrane tank rather than an integrated MBR?

PD CEN/TR 15897 notes a clear tendency to design large MBR systems above 10,000 m³/d with separated membrane tanks, and for that reason it focuses its design criteria on separate membrane tanks (BSI, PD CEN/TR 15897). Below that threshold but still above 500 PT, integrated topologies remain a valid choice within the same scope. The decision rule for the design basis: record the flow band and fix the topology before sizing

Frequently Asked Questions

What are the key design criteria for a submerged membrane bioreactor under PD CEN/TR 15897?

PD CEN/TR 15897 emphasizes the critical relationship between biomass concentration, hydraulic retention time (HRT), and membrane flux rates. Key criteria include maintaining a Mixed Liquor Suspended Solids (MLSS) concentration typically between 8,000 and 12,000 mg/L, and ensuring the Net Flux does not exceed the critical flux—often ranging from 15 to 25 LMH (liters per square meter per hour) during peak flow conditions to prevent irreversible fouling.

The standard also highlights the necessity of defining the peak-to-average flux ratio and the required air scouring intensity, which is generally specified in terms of specific aeration demand per membrane area (SADm), typically ranging from 0.2 to 0.5 Nm³/m²h. Adherence to these parameters ensures that the biological process remains stable while maintaining the physical integrity of the membrane modules.

When should I choose a separate membrane tank instead of an integrated MBR system?

A separate membrane tank configuration is recommended for plants requiring high operational flexibility, easier maintenance access, or when retrofitting existing activated sludge plants where basin geometry does not support integrated immersion. Separate tanks allow for the isolation of the membrane zone for chemical cleaning (CIP) without disrupting the biological process in the aeration tank.

This configuration is also preferred when the design requires a higher decoupling of the solids retention time (SRT) from the hydraulic retention time (HRT). By separating the tanks, operators can maintain a significantly higher MLSS in the membrane zone compared to the biological aeration zone, which is critical for sites with limited footprint that must manage high nutrient removal loads.

How does plant size (500 PT vs 10,000 m³/d) change the submerged MBR design basis?

For small systems (500 PT), the design basis is heavily influenced by hydraulic surges and the need for simplified, automated control sequences to minimize site visits. These systems often prioritize modular "plug-and-play" units with conservative flux rates (often 10-15 LMH) to accommodate fluctuating organic loads and to allow for extended intervals between membrane cleanings.

Conversely, for 10,000 m³/d plants, the design basis shifts toward energy optimization and process efficiency. At this scale, the design must incorporate detailed Computational Fluid Dynamics (CFD) modeling for air scouring, automated chemical dosing systems, and sophisticated permeate flux enhancement strategies. The design basis at this scale focuses on minimizing SADp (specific aeration demand per permeate volume) to reduce the high operational expenditure associated with large-scale membrane aeration.

How should I write a submerged MBR design basis so that modules from different suppliers can be compared fairly?

To ensure fair comparison, the design basis must fix the "Boundary Conditions" rather than specifying proprietary module dimensions. You should mandate a common Net Flux (LMH) at a defined temperature (e.g., 15°C), a maximum allowable transmembrane pressure (TMP) threshold for the end of a cycle, and a standardized influent characteristic profile including COD, TKN, and peak flow factors.

Additionally, require all bidders to submit their total membrane surface area, the specific aeration demand (SADm), and the chemical consumption rates for maintenance and recovery cleans. By requiring these inputs based on a standardized 24-hour flow pattern and a fixed peak-to-average ratio, you force suppliers to compete on efficiency and footprint rather than differing interpretations of site-specific load assumptions.

What supplier-selection risk comes from specifying a submerged MBR only at the module level instead of the system level?

Specifying only at the module level creates a "responsibility gap" regarding the integration of peripheral components such as permeate pumps, air scouring blowers, and PLC logic. If the modules are purchased separately from the control system, the end-user assumes the risk of system incompatibility, where the membrane’s required air-scour flow rates may not match the supplied blower performance curves.

Furthermore, module-level procurement often complicates warranty claims, as the membrane manufacturer may attribute premature fouling or structural failure to poor control logic or improper chemical cleaning cycles programmed by a third-party integrator. Purchasing a complete system ensures the vendor takes full accountability for the process guarantee, including the flux performance, air-scouring efficiency, and the overall lifespan of the membrane cassettes.
