What the 40-60% Energy-Saving Figure Actually Covers
The widely cited 40-60% reduction figure compares a UASB reactor's electricity demand against a conventional activated-sludge aeration baseline — it is a reactor-only number, not a whole-plant kWh/m³ figure (S2, commercial UASB design review, 2025). Aeration in activated sludge typically draws 0.3-0.6 kWh/m³ of treated wastewater; a UASB that produces biogas instead of burning aeration energy can drop reactor energy to 0.05-0.15 kWh/m³, but only if you isolate the boundary correctly. A real plant still needs energy for influent pumping, optional heating in cold climates, biogas handling, and any downstream aerobic polishing for residual COD, ammonia, or sulfide. Before quoting the headline number in a CAPEX memo, the engineer must add those line items back in or the savings claim is indefensible.
The biological engine is what makes those parasitic loads recoverable. Specific methanogenic activity above 1 g COD/g VSS/day (S2) means each kg of COD removed self-generates roughly 0.35 m³ of biogas at peak theoretical yield (S2). Reactor biomass concentration exceeding 40 g/L MLSS (S2) is the reason HRT can be 6-12 hours industrially versus 20+ days for conventional anaerobic digesters, and that same biomass density is what allows the reactor to operate with no mechanical mixers — the rising gas provides hydraulic circulation. Granules 1-3 mm in diameter settle back through the upflow while still maintaining intimate contact with the feed. COD removal of 80-95% is achievable in this configuration (S2), which means the polishing step downstream carries a far smaller load.
For an aerobic vs anaerobic comparison of energy demand, the boundary matters. Aerated systems can reach 0.5-1.2 kWh/m³ for full BOD removal; a UASB plus minimal polishing typically lands at 0.1-0.3 kWh/m³ when biogas is utilized. That ratio is where the 40-60% headline lives, and it is the right number to quote — provided the rest of the plant's energy budget is itemized.
Operating Window That Minimizes kWh per m³ Treated
Industrial HRT operates between 6-12 hours for most applications; municipal UASBs sit at 10-14 hours; the absolute published range is 3-24 hours (S4, MDPI review, 2025-02). Going below 6 hours risks granule disintegration and VFA accumulation that wastes subsequent polishing energy. OLR for mature granular beds is 4-15 kg COD/m³/day (S2); pushing above 15 kg COD/m³/day raises gas velocity and can short-circuit three-phase separation, which then forces longer effective HRT in the polishing stage. Upflow velocity 0.5-1.5 m/h is the normal operating band, with 3 m/h tolerable for short peak flow periods (S2). Hold the reactor in this band and the sludge blanket stays expanded without washout — that is the most efficient hydraulic state because pumping energy is minimized and biomass retention is preserved. pH 6.0-8.0 (S4) keeps methanogens in their working range; mesophilic operation at 20-45 °C is the energy optimum for most industrial sites. Thermophilic operation at 45-60 °C (S4) accelerates kinetics but the heating load must be modeled in kWh, not assumed away.
| Parameter | Industrial Window | Municipal Window | Absolute Range | Source |
|---|---|---|---|---|
| HRT | 6-12 h | 10-14 h | 3-24 h | S2 / S4 |
| OLR | 4-15 kg COD/m³/d | 1-4 kg COD/m³/d | up to 15 kg COD/m³/d | S2 |
| Upflow velocity | 0.5-1.5 m/h | 0.5-1.0 m/h | 0.5-3 m/h peak | S2 |
| Temperature | 20-45 °C mesophilic | 10-25 °C | 4-60 °C (EGSB to thermophilic) | S4 |
| pH | 6.8-7.4 | 6.5-7.5 | 6.0-8.0 | S4 |
| MLSS | 30-50 g/L | 20-35 g/L | up to 60+ g/L | S2 |
The kWh/m³ penalty for missing these windows is real. Operating at HRT below 6 hours typically pushes COD removal from 85% down to 60-70% (S4), which then forces 0.2-0.4 kWh/m³ of extra aeration downstream. Operating above 15 kg COD/m³/d OLR without matching temperature can trigger VFA accumulation, pH drop below 6.5, and granule loss that takes 30-60 days to recover. For a 1,000 m³/d plant, each percentage point of lost COD removal that must be re-polished aerobically costs roughly 0.005-0.008 kWh/m³. The operating window is the cheapest energy lever on the plant — it costs no capex, only set-point discipline.

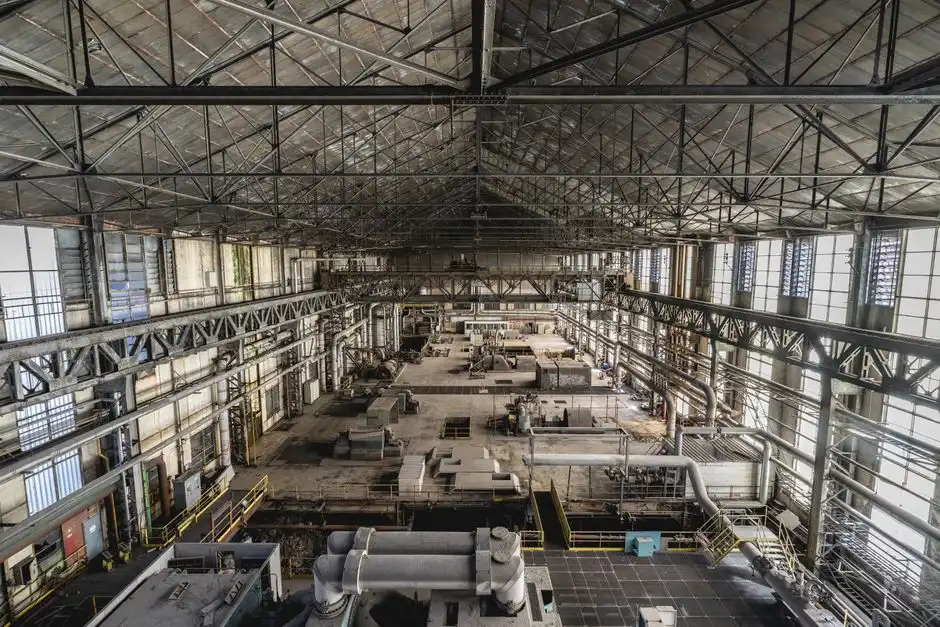

How Reactor Geometry and Hydraulics Drive Parasitic Loads
H:D ratio 3:1 to 5:1 with industrial reactor height 4.5-7 m (S2) is the standard envelope. Excessive height increases pumping head and structural steel cost without proportional COD removal gain. A taller vessel does not buy better biology — it buys more residence time that the biology does not need because the granules are already at >40 g/L MLSS (S2). The influent distribution grid, with inlet spacing 2-3 m (S2) and velocity-reducing features, prevents channeling. Channeling is the silent parasitic load: it forces longer effective HRT because the feed bypasses the densest sludge zones, so the operator compensates either by pumping harder or by accepting worse effluent and paying for downstream aerobic polishing.
The EGSB variant is a direct lever for cold plants. EGSB operates at upflow velocities exceeding 4 m/h (S4) and cuts reactor volume by approximately 25% (S4). It also removes mechanical mixers from the energy budget because the gas lift provides mixing. For plants with feed temperatures of 4-20 °C (S4), EGSB is often the only anaerobic option that maintains acceptable kinetics without burning kWh on heaters. The trade-off is taller vessels and stricter hydraulic control, but the energy delta is real. For municipal UASB, the height-to-diameter balance is tighter — 3-5 m (S2) — and over-tall municipal vessels just add pumping kWh without retention benefit because the sludge blanket cannot expand that far. Dissolved air flotation pre-treatment ahead of the reactor reduces suspended solids load, which directly reduces sludge bed compaction and channeling risk in both UASB and EGSB geometries.
The Dissolved-Methane Leak: the Largest Hidden Energy Loss
30-40% of the CH4 a UASB synthesizes stays dissolved in the liquid effluent (S4, MDPI 2025). This is both an energy loss and a Scope 1 emissions compliance problem. At a calorific value of 25.1-28.7 MJ/Nm³ and 50-80% CH4 (S4), a 1,000 m³/d plant losing 35% of its CH4 to effluent is forfeiting hundreds of MWh per year of recoverable energy. Doing the math: a typical food-and-beverage UASB removing 5,000 kg COD/d at 0.35 m³/kg COD yields 1,750 m³/d of biogas gross, of which 525-700 m³ CH4/d is the dissolved load leaving in liquid. At 28 MJ/Nm³ and 35% CH4 content, that effluent-dissolved stream represents 5-7 GJ/d of thermal energy — roughly 1,400-1,900 kWh/d walking out the outlet, uncombusted, uncounted in most energy balances.
Recovery options include downflow hanging sponge reactors, degassing membrane contactors, and side-stream degasser towers. Size them to the actual dissolved-CH4 loading, not assumed gas-phase production. The designer must include this stream in the biogas mass balance: the 0.35 m³/kg COD removed figure (S2) is the gas-phase number only and excludes the dissolved fraction. From a Scope 1 reporting perspective, ignoring dissolved CH4 means the plant's methane footprint is 50-100% higher than its gas-meter reading suggests. For sites in jurisdictions with methane intensity targets — particularly food and beverage operations reporting to science-based targets — this is a compliance gap as well as an energy gap. The payback on a degassing membrane contactor is typically 2-3 years at industrial electricity rates, driven almost entirely by the value of recovered methane.

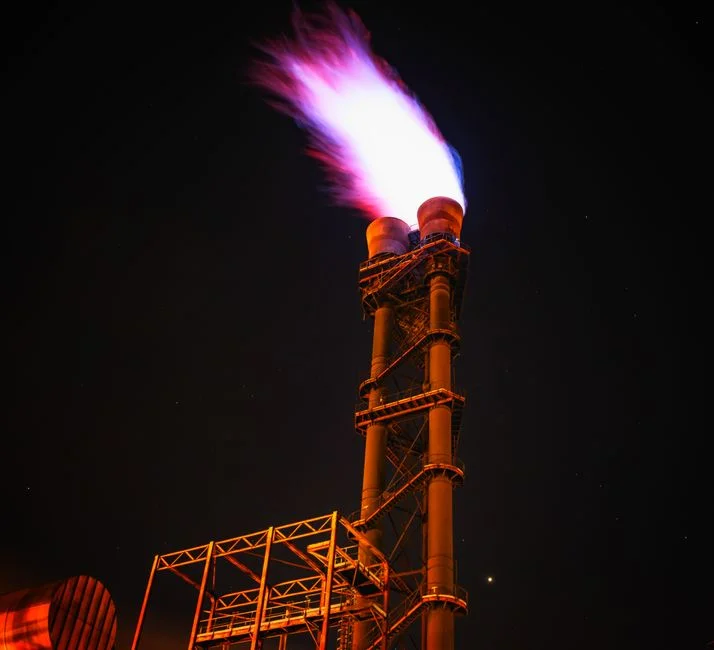

Turning Captured Biogas into Net-Negative kWh
Biogas end-uses rank by thermal efficiency: CHP (combined heat and power) > boiler > thermal oxidizer. Flare-only configurations waste the energy content entirely and should not be presented as recovery. For a starch or brewery wastewater at OLR 8-12 kg COD/m³/day — the BIOTIM reference range per S2 — on-site CHP can offset the entire plant's parasitic load and export surplus electricity. At a typical 1,000 m³/d brewery UASB producing 2,500-3,500 m³/d of biogas, a 200-300 kWe CHP unit running 8,000 h/yr generates 1.6-2.4 GWh of electricity, which is enough to cover plant parasitic load and export the rest.
The gas handling train — moisture removal, H2S scrubbing, then utilization — must be sized correctly. Undersize the gas system and back-pressure disrupts the hydraulic regime (S2), wasting reactor energy and COD removal. Always design the gas collection dome and piping for 0.35 m³/kg COD removed plus a 20-30% safety factor (S2). Chronic under-design is the most common cause of energy under-recovery in retrofit UASB plants. Pressure-relief sizing, condensate traps, and flame arrestors all matter; an oversized relief valve that lifts at peak flow is a parasitic leak. For a CAPEX comparison, pair this against the MBBR energy efficiency benchmark — MBBR aeration typically runs 0.4-0.7 kWh/m³, while a properly gas-utilized UASB runs net-negative on the energy ledger once dissolved CH4 is recovered.
Six Levers, Ranked by Energy Payback
The highest-payback lever is dissolved-CH4 recovery: typically under 3-year payback on electricity-equivalent value alone, plus Scope 1 compliance upside. The second lever is to optimize HRT/OLR set-points inside the 6-12 h industrial window before adding any hardware. The third lever is to switch to EGSB if the feed is cold (4-20 °C, per S4) and the wastewater is biodegradable — this removes mixers from the energy budget entirely. The fourth lever is three-phase separator inspection and cleaning: a fouled separator is a hidden parasitic load. The fifth is gas-handling pressure-relief sizing verification. The sixth is H:D ratio verification for existing vessels — sometimes the cheapest kWh/m³ win is to derate the pumping head. For set-point tuning, automated pH and nutrient dosing keeps alkalinity and trace metals in the band that protects granule integrity, which in turn keeps the reactor inside its efficient operating envelope.
| Rank | Lever | Capex Class | Typical Payback | Primary kWh Impact |
|---|---|---|---|---|
| 1 | Dissolved CH4 recovery (degasser / DHS) | Medium | 2-3 yr | +1,400-1,900 kWh/d at 1,000 m³/d plant |
| 2 | HRT/OLR set-point tuning (6-12 h, 4-15 kg COD/m³/d) | None | Immediate | 5-15% pumping reduction |
| 3 | EGSB conversion (upflow >4 m/h, 4-20 °C feed) | High | 4-6 yr | Removes mechanical mixers, ~25% volume cut |
| 4 | Three-phase separator inspection / refurbishment | Low | 1-2 yr | Recovers 5-10% COD loss to washout |
| 5 | Gas-handling pressure-relief sizing check | Low | 1-2 yr | Eliminates parasitic gas leaks |
| 6 | H:D ratio verification / pumping head reduction | Low-Medium | 2-4 yr | 10-20% pumping kWh reduction |
Frequently Asked Questions
What does the 40-60% UASB energy reduction figure actually compare against?
It compares a UASB reactor's energy demand against conventional activated-sludge aeration — a reactor-only figure, not a whole-plant kWh/m³ value (S2, 2025). Once you add influent pumping, optional heating, biogas handling, and downstream aerobic polishing for residual COD and ammonia, the real plant-level reduction is typically 40-65% rather than the headline 60%. Always state the boundary before quoting the percentage in a CAPEX memo.
How much methane is lost in UASB effluent and what is it worth in kWh?
30-40% of synthesized CH4 remains dissolved in the liquid effluent (S4, MDPI 2025). At 25.1-28.7 MJ/Nm³ calorific value and 50-80% CH4 content (S4), a 1,000 m³/d plant losing 35% of its CH4 to effluent forfeits 5-7 GJ/d of thermal energy — roughly 1,400-1,900 kWh/d. Recovery via degassing membrane contactors or downflow hanging sponge reactors typically pays back in 2-3 years.
Can UASB operate economically in cold climates, and how does EGSB compare?
Standard UASB mesophilic operation is 20-45 °C (S4); below 20 °C, kinetics slow and heating loads spike. EGSB operates at upflow velocities above 4 m/h and remains efficient at 4-20 °C (S4), while cutting reactor volume by about 25% and removing mechanical mixers from the energy budget. For cold-feed sites with biodegradable wastewater, EGSB is the direct lever for kWh/m³ reduction.
