Why Colón’s Wastewater Treatment Costs Are Different: 5 Local Factors That Drive Your Budget
In Colón, Panama, a 150,000 GPD industrial wastewater treatment plant costs USD 600,000–1.8M in 2025, including equipment, engineering, and installation. CAPEX varies by technology: conventional activated sludge (USD 4–8/m³/day), DAF systems (USD 6–12/m³/day), and MBR plants (USD 10–20/m³/day). Local factors like ANAM compliance (Resolution 201-2019), labor rates (USD 12–18/hour), and material sourcing (30% import premium) add 15–25% to costs compared to U.S. benchmarks. OPEX ranges from USD 0.15–0.40/m³, driven by energy (40% of OPEX), chemical dosing, and membrane replacement (every 5–8 years for MBR).
Factory managers in the Colón Free Zone or the industrial corridors near the Panama Canal often find that generic international cost estimates lead to significant budget shortfalls. Local regulatory and economic realities create a unique cost profile that requires specific adjustments. The primary driver is ANAM Resolution 201-2019, which mandates strict effluent limits for industrial discharge, including BOD <30 mg/L, TSS <50 mg/L, and NH₃-N <10 mg/L. Meeting these standards typically requires advanced tertiary treatment or high-performance biological systems, which can increase initial CAPEX by 20–30% compared to plants designed for basic secondary treatment (per ANAM 2023 compliance reports).
Labor dynamics in Colón also present a specific challenge. Skilled technician rates (USD 12–18/hour) are approximately 30% lower than U.S. averages, but 40% higher than regional competitors like Costa Rica (source: Panama Ministry of Labor 2024). This impacts both the installation phase and long-term operations and maintenance (O&M) budgets. Approximately 70% of high-tech components, such as membranes and specialized pumps, must be imported. According to 2023 Panama Canal Authority data, shipping and customs delays can add a 25–35% premium to equipment costs. Utilizing local alternatives for non-critical infrastructure, such as concrete tanks, can reduce these costs by 15%, though it often extends project lead times.
| Cost Factor | Colón, Panama Metric | Impact on Budget |
|---|---|---|
| Compliance Standard | ANAM Resolution 201-2019 | +20-30% CAPEX for tertiary stages |
| Skilled Labor Rate | USD 12–18 / hour | Higher O&M than regional peers |
| Electricity Tariff | USD 0.18–0.22 / kWh | Energy-efficient tech is mandatory |
| Import Premium | 25–35% on specialized parts | Increases equipment lead times/cost |
| Sewer Tipping Fee | USD 0.50–1.20 / m³ | Drives preference for on-site reuse |
Utility costs further complicate the OPEX landscape. Electricity in Colón ranges from USD 0.18–0.22/kWh, which is significantly higher than many North American industrial zones. This makes energy-intensive technologies risky; for instance, choosing MBR systems for Colón’s strict effluent limits that operate at 0.6 kWh/m³ becomes a strategic necessity rather than a luxury to control long-term operational costs (source: ENA 2024 tariff schedule).
Wastewater Treatment Plant Cost Breakdown: CAPEX, OPEX, and Hidden Expenses in Colón
A granular breakdown of costs for a 150,000 GPD (approx. 570 m³/day) plant in Colón reveals that equipment is only one part of the financial equation. Typically, equipment accounts for 45–55% of the total CAPEX. For industrial facilities requiring high-efficiency solids removal, DAF systems for high-efficiency TSS removal in Colón, such as the ZSQ Series, can cost between USD 120,000 and USD 250,000 for capacities of 50–100 m³/h, inclusive of skids, controls, and freight (SAMCO 2024 data).
Civil works represent 20–30% of the budget, followed by engineering and design (10–15%), installation (10–15%), and commissioning (5%). Hidden costs in the Panamanian market often catch buyers off guard. Permitting through ANAM for industrial discharge approval typically costs between USD 10,000 and USD 30,000 and can take 6 to 12 months. Operator training for a staff of 3–5 technicians adds another USD 5,000–15,000, and a contingency fund of 10–15% is recommended to account for logistics delays at the Port of Colón.
| OPEX Category | Estimated Cost (USD/m³) | Notes for Colón Market |
|---|---|---|
| Energy Consumption | 0.08 – 0.15 | Highest driver due to local tariffs |
| Chemical Dosing | 0.03 – 0.08 | Dependent on imported polymers |
| Labor (O&M) | 0.02 – 0.05 | Based on 24/7 industrial shifts |
| Maintenance/Parts | 0.02 – 0.04 | Includes local wear-and-tear parts |
| Membrane Replacement | 0.05 – 0.10 | Specific to MBR (amortized over 5-8 yrs) |
Logistics and freight add a layer of complexity. While Colón is a global shipping hub, moving specialized equipment from the port to an inland industrial site involves customs clearance and port fees that total 10–15% of the equipment value. Infrastructure challenges, such as unreliable power grids in certain industrial sectors, often necessitate the inclusion of backup generators (USD 20K–50K), which must be factored into the initial CAPEX to prevent biological process failure during outages.
Technology Comparison: MBR vs. DAF vs. Conventional Activated Sludge Costs in Colón
Choosing the right technology depends on balancing land availability, effluent requirements, and budget. In Colón’s urban industrial zones, where land prices range from USD 150–300/m², the footprint of the system is a major cost driver. Membrane Bioreactors (MBR) require only 0.5–1 m² per m³/day of capacity, whereas conventional activated sludge systems require 2–3 m² per m³/day due to the need for large secondary clarifiers.
From a CAPEX perspective, conventional activated sludge remains the cheapest upfront at USD 4–8/m³/day of capacity. However, it often fails to meet the stricter ANAM limits for TSS and BOD without additional tertiary steps. DAF systems, priced at USD 6–12/m³/day, are excellent for food processing or oily wastewater but usually require multi-media filters for Colón’s tertiary treatment needs to achieve TSS levels below 10 mg/L. MBR systems represent the highest CAPEX (USD 10–20/m³/day) but produce reuse-quality effluent (TSS <1 mg/L) without further filtration.
| Feature | Conventional Sludge | DAF + Filtration | MBR (Integrated) |
|---|---|---|---|
| CAPEX (USD/m³/day) | 4 – 8 | 6 – 12 | 10 – 20 |
| OPEX (USD/m³) | 0.15 – 0.25 | 0.20 – 0.35 | 0.30 – 0.50 |
| Effluent Quality (TSS) | 15 – 30 mg/L | 5 – 10 mg/L | < 1 mg/L |
| Footprint | Large | Moderate | Minimal |
| ANAM Compliance | Requires Polish | High Probability | Guaranteed |
For a 50 m³/h MBR system (such as Zhongsheng’s DF Series), the 2025 pricing in Colón sits at USD 1.2M–1.8M. While the OPEX is higher (USD 0.30–0.50/m³), the ability to bypass the municipal sewer and reuse water for irrigation or cooling towers provides a significant hedge against rising municipal water fees. Conversely, conventional systems have lower upfront costs but incur higher sludge disposal fees, which currently range from USD 0.10–0.20/m³ in Colón.
Colón-Specific Cost Calculator: Estimate Your WWTP Budget in 3 Steps
To accurately estimate a budget for a wastewater treatment plant in Colón, industrial buyers should follow a structured three-step calculation model that accounts for local multipliers.
Step 1: Define Flow and Quality. Determine your daily flow rate (m³/day) and identify your specific industry pollutants. For example, a textile plant in Colón discharging 100 m³/h requires tertiary treatment to handle dyes and high TSS to meet ANAM limits. This baseline requirement immediately points toward DAF or MBR technologies rather than basic activated sludge.
Step 2: Technology and Site Constraint Selection. Evaluate your available land. If your facility is in a space-constrained area like the Colón Free Zone, package plants for Colón’s space-constrained sites are often the most cost-effective solution despite higher equipment costs, as they eliminate the need for expensive land acquisition. Use a decision tree: If land is <200 m² and reuse is desired, select MBR; if land is available and fats/oils are high, select DAF.
Step 3: Apply Colón Multipliers. Take your base equipment cost and apply a 1.25× multiplier to account for Panamanian import premiums, customs brokerage, and local engineering certification. For a 50 m³/h DAF system, this results in a CAPEX of USD 300K–500K. To estimate OPEX, use the local energy rate of USD 0.20/kWh as your primary variable.
A common pitfall in Colón is underestimating the "soft costs." Many projects face 15% budget overruns because backup power needs and the 6-12 month permitting lead time were not integrated into the initial financial model. Buyers are encouraged to use a localized spreadsheet that pre-fills Panama’s labor rates and energy tariffs to avoid these discrepancies.

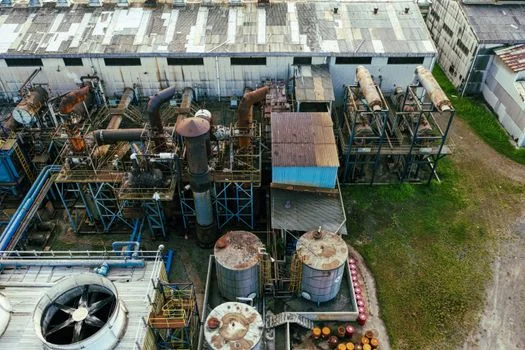

ROI Models for Industrial WWTPs in Colón: When Does Treatment Pay Off?
The investment in a wastewater treatment plant is often justified not just by compliance, but by risk mitigation and resource recovery. The cost of non-compliance in Panama is steep; ANAM fines for exceeding discharge limits range from USD 5,000 to USD 50,000 per violation. In 2023, a Colón-based food processor reportedly paid USD 30,000 in fines and faced temporary closure due to repeated BOD
